Electronic Climate Control

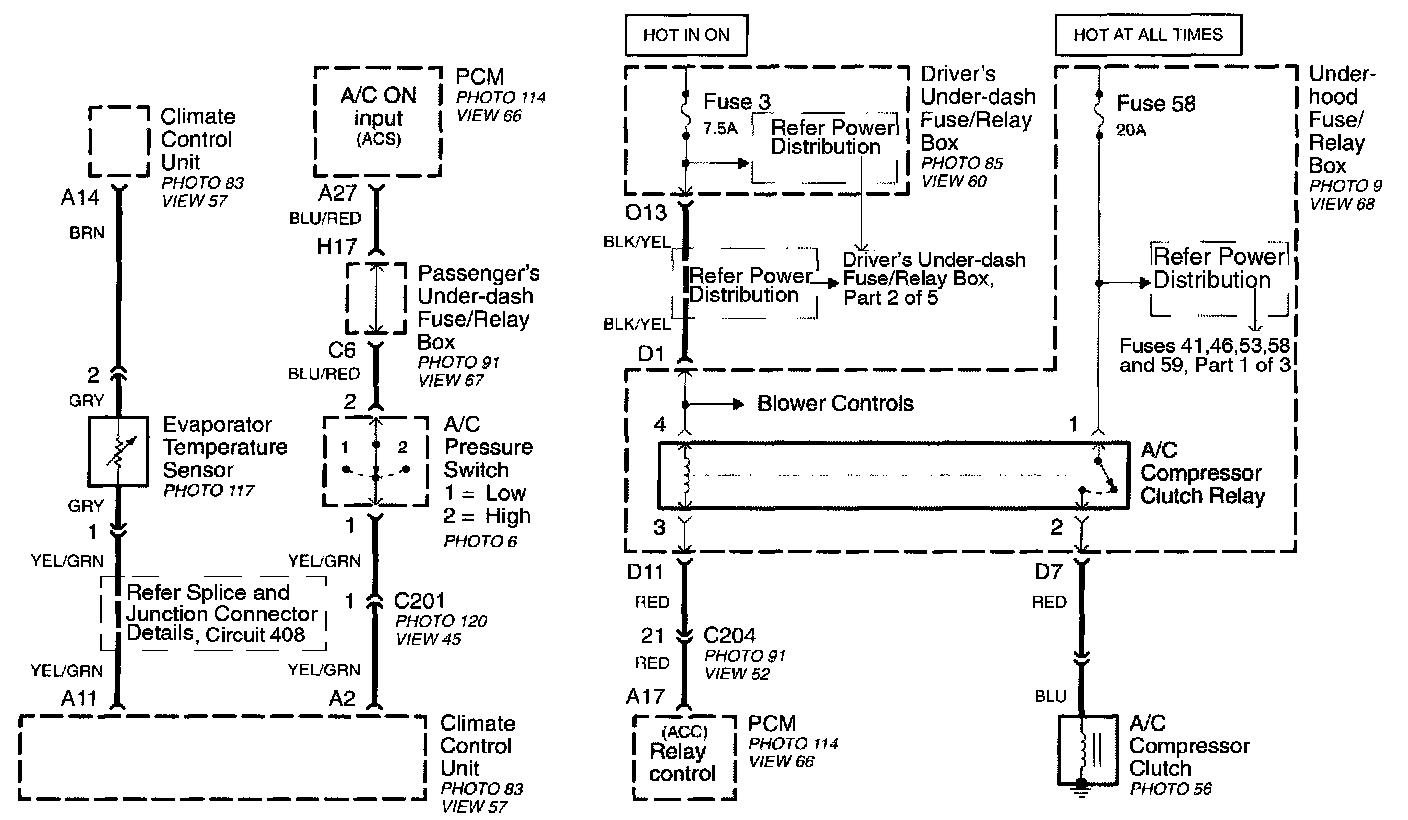

Schematic Part 1 Of 5:

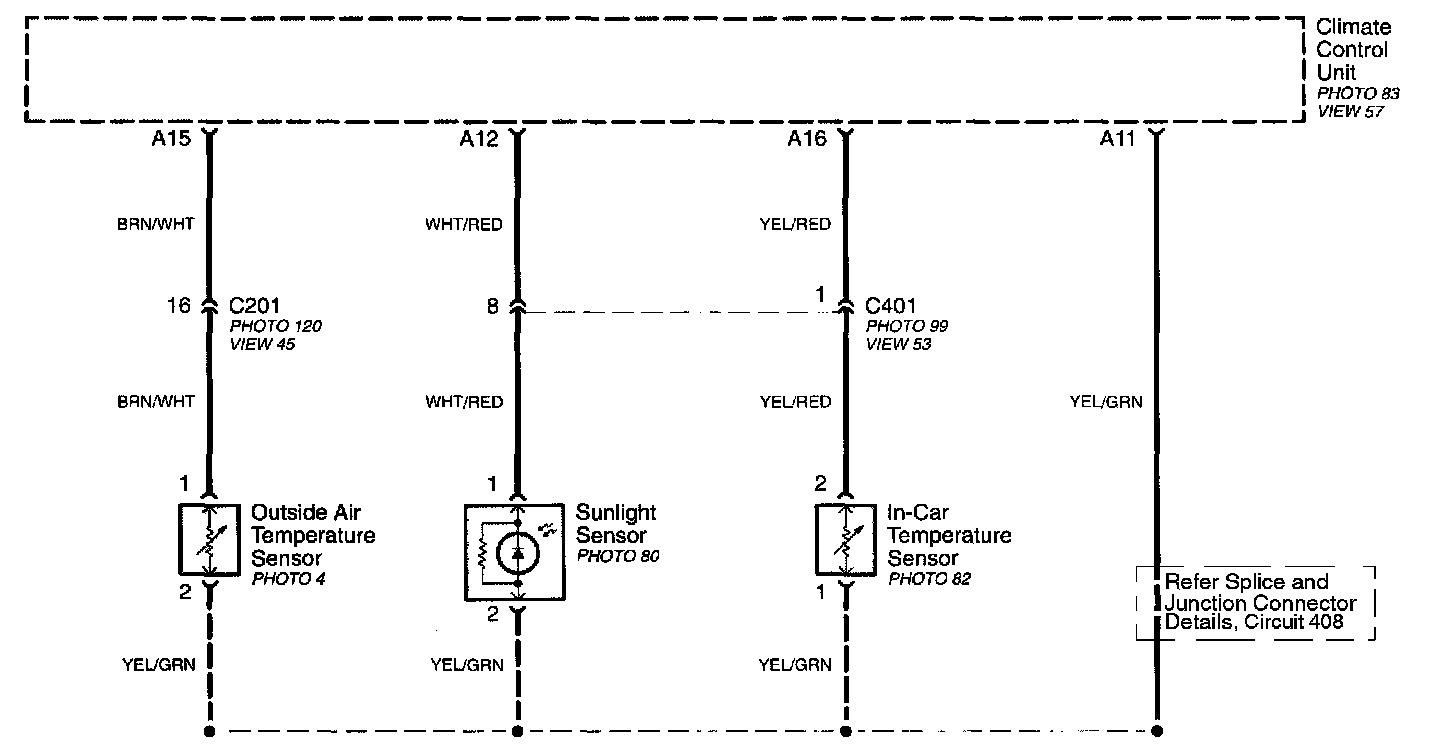

Schematic Part 2 Of 5:

Schematic Part 3 Of 5:

Schematic Part 4 Of 5:

Schematic Part 5 Of 5:

Climate Control Block Diagram (Part 1 Of 2):

Climate Control Block Diagram (Part 2 Of 2):
