Manual A/C

Air Door Control Schematic:

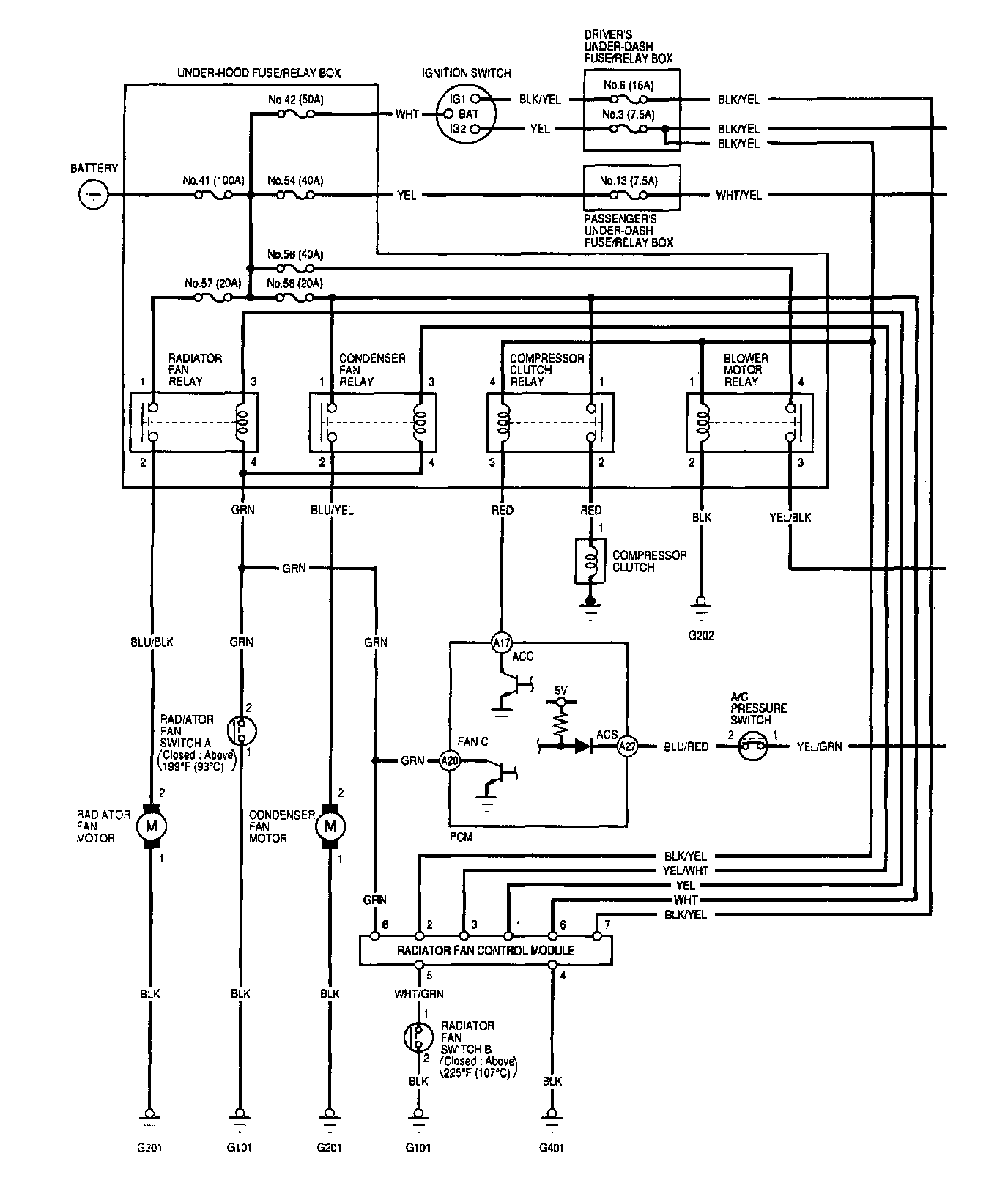

Air Conditioning (Part 1 Of 2):



Air Conditioning (Part 2 Of 2):
