Electrical Diagrams

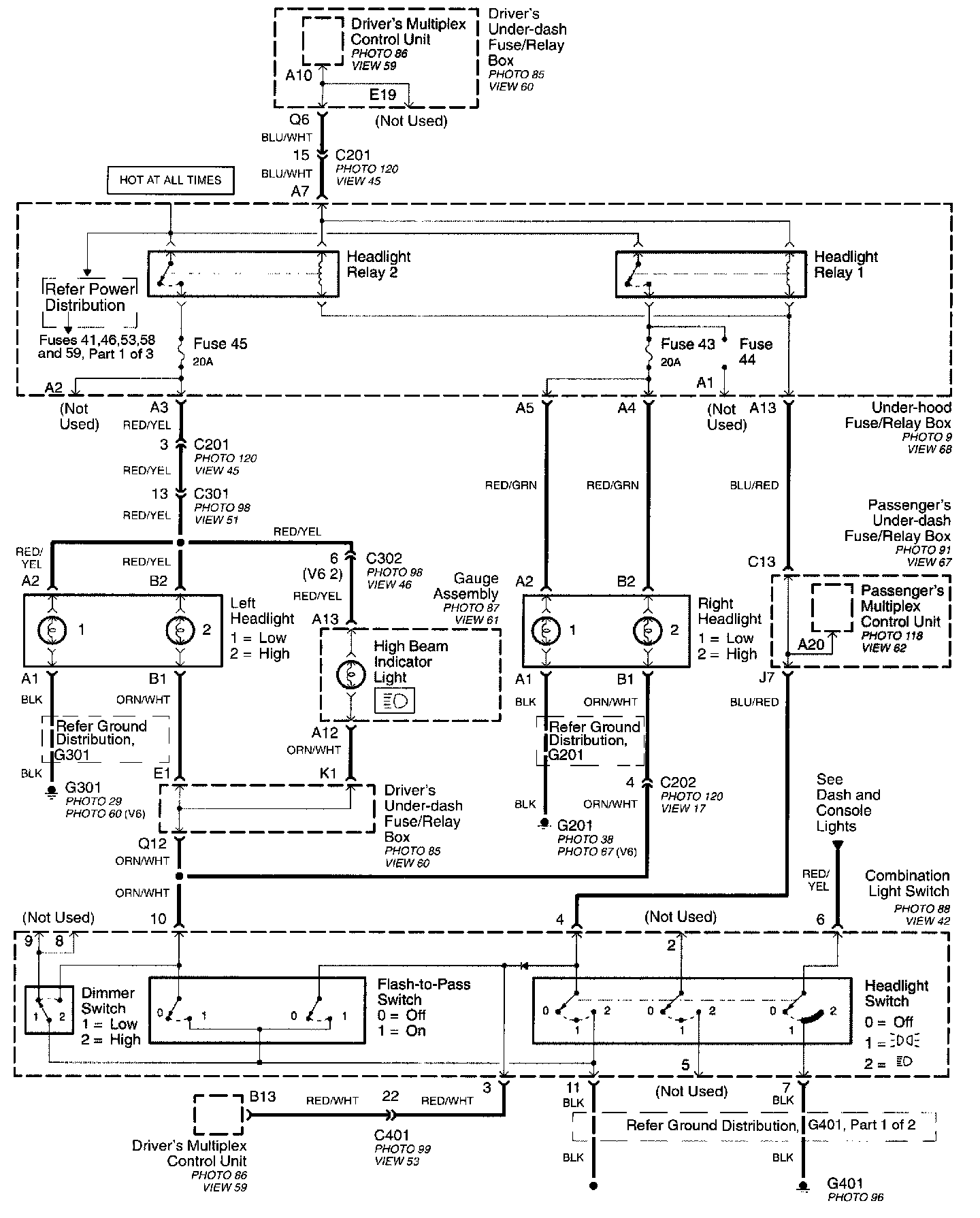

Part 1 Of 2 / WITH AUTO LIGHTS OFF - USA:

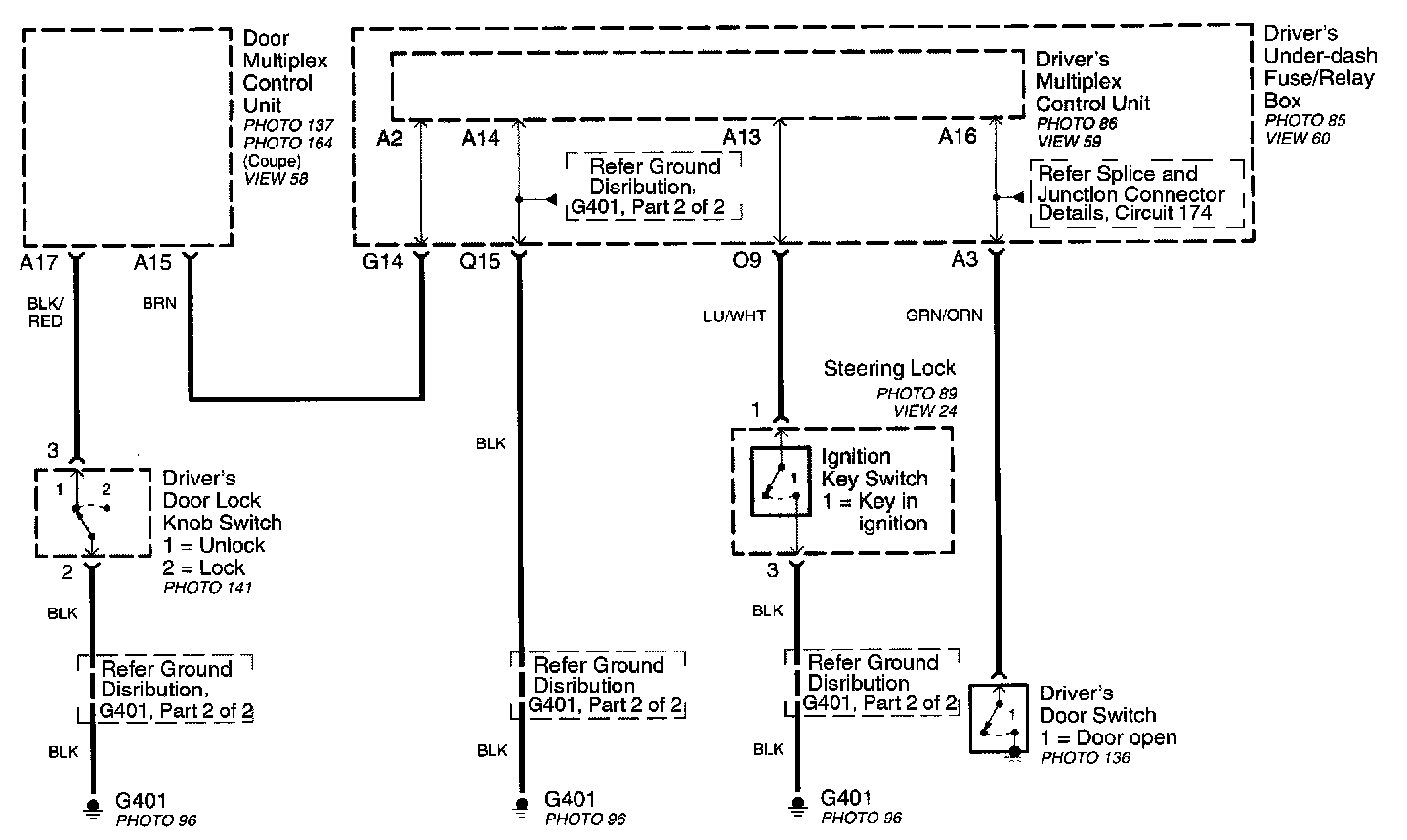

Part 2 Of 2 / WITH AUTO LIGHTS OFF - USA:

/ WITHOUT AUTO LIGHTS OFF - USA:

Part 1 Of 3 / WITHOUT AUTO LIGHTS OFF - CANADA:

Part 2 Of 3 / WITHOUT AUTO LIGHTS OFF - CANADA:

Part 3 Of 3 / WITHOUT AUTO LIGHTS OFF - CANADA:

/ WITH AUTO LIGHTS OFF - CANADA:
