Center Panel Removal and Installation

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related pants, to prevent damage.
- Take care not to scratch the dashboard and related parts.




1. Detach the clips, and release the retaining tabs (A), then pull the clock out. Disconnect the clock connector (B) and hazard warning switch connector (C).

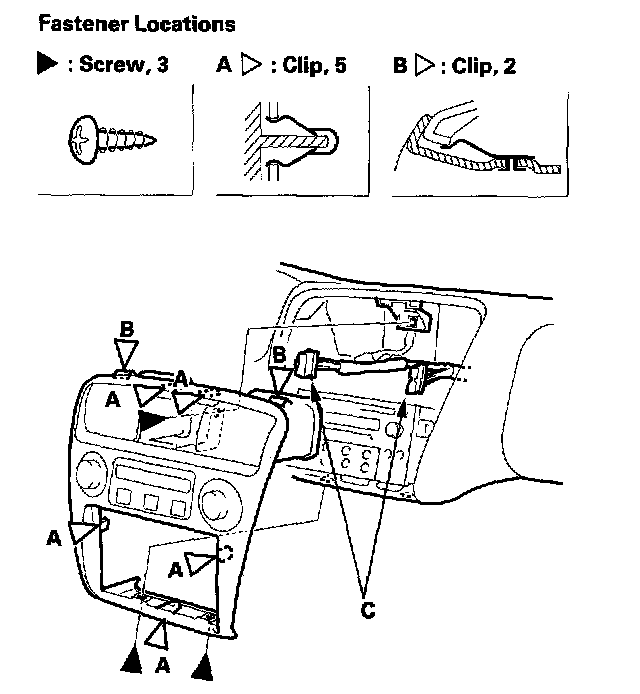

2. Remove the screws, and detach the clips (A), then detach the upper clips (A and B) to remove the center panel by disconnecting the heater control unit connectors (C).
3. Install in the reverse order of removal, and make sure the connectors are plugged in properly.
