Axle Shaft Assembly






1990-91






1992-98

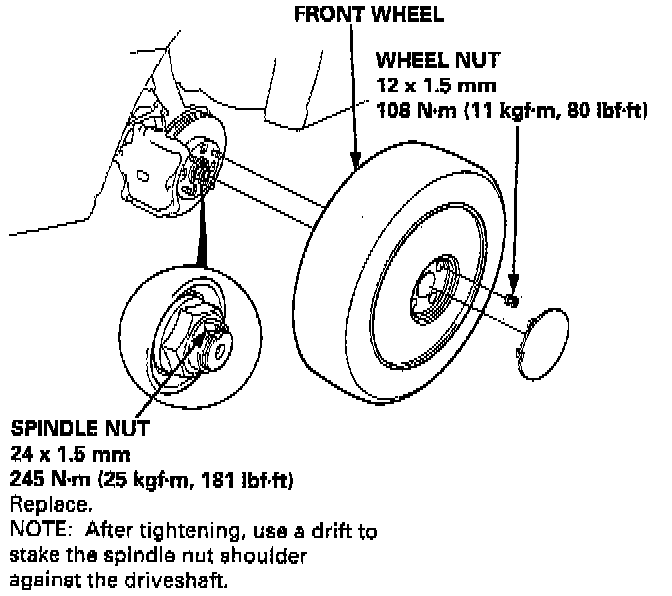

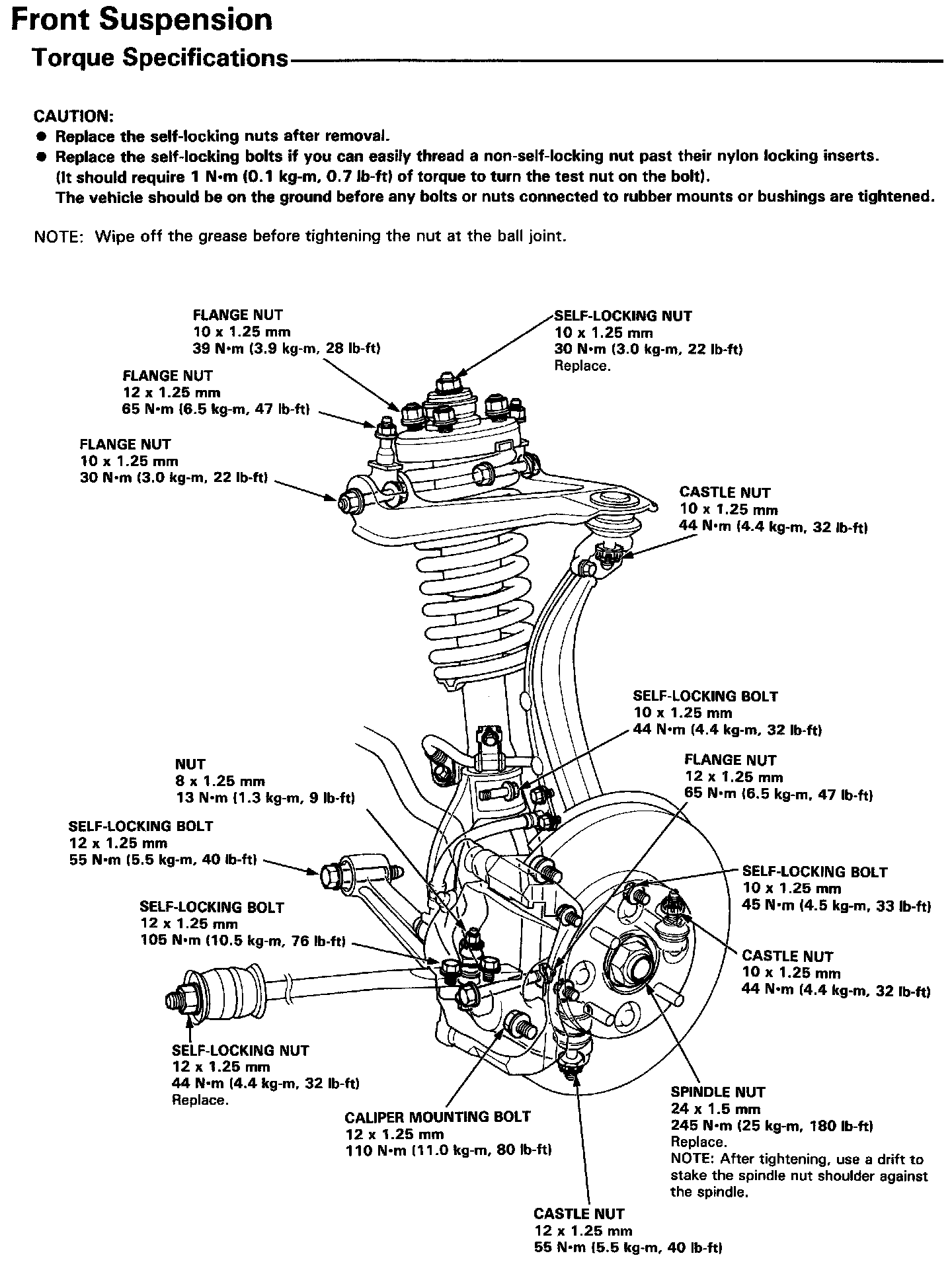

FRONT






1998 Rotor






1998 DRUM






1990-97 DRUM

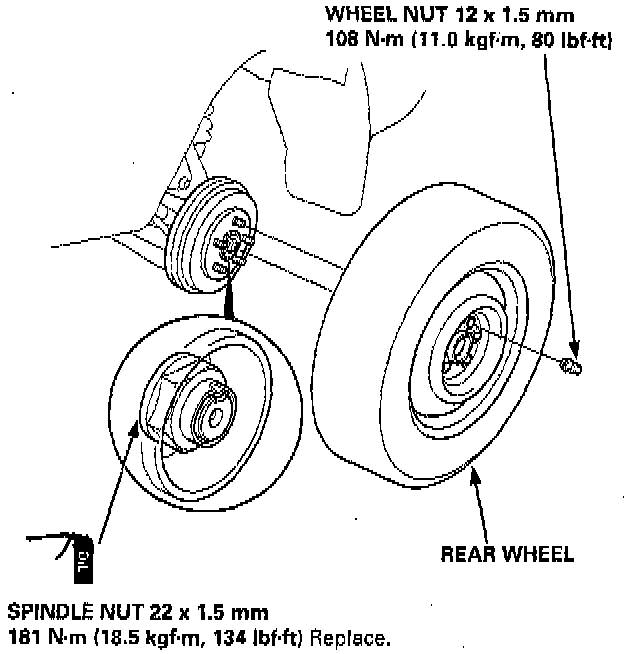

Rear
