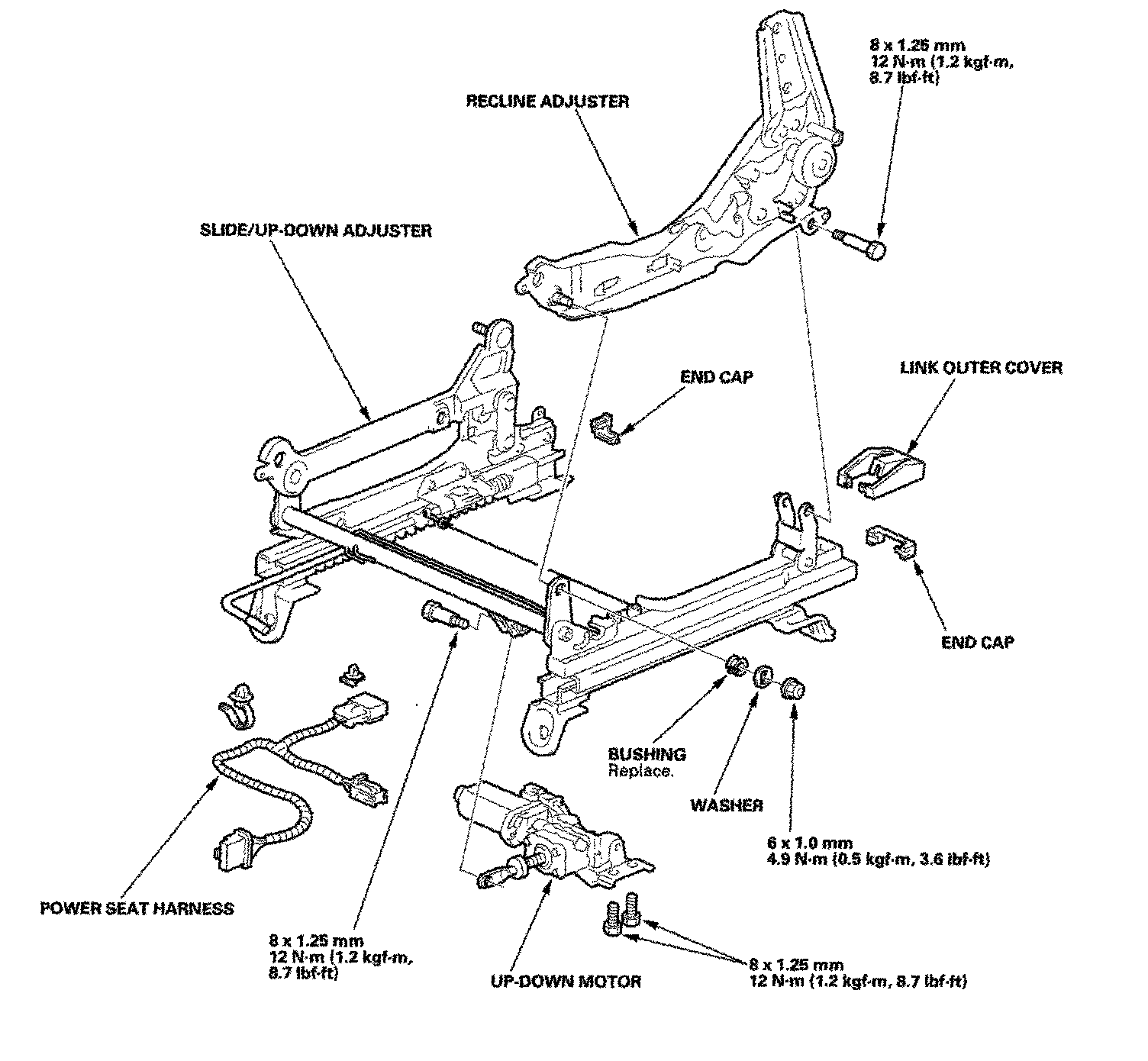

Power Height Adjustable

NOTE:
- Before removing the front seat from the vehicle, raise the seat cushion to its maximum height.
- Put on gloves to protect your hands.




Reassemble in the reverse order of disassembly, and note these items:

- Replace the bushings with new ones.
- Apply multipurpose grease to the sliding and pivoting portions of the linkage.
- Check operation of the recline adjuster and slide/up-down adjusters.
