Dash and Console Lights

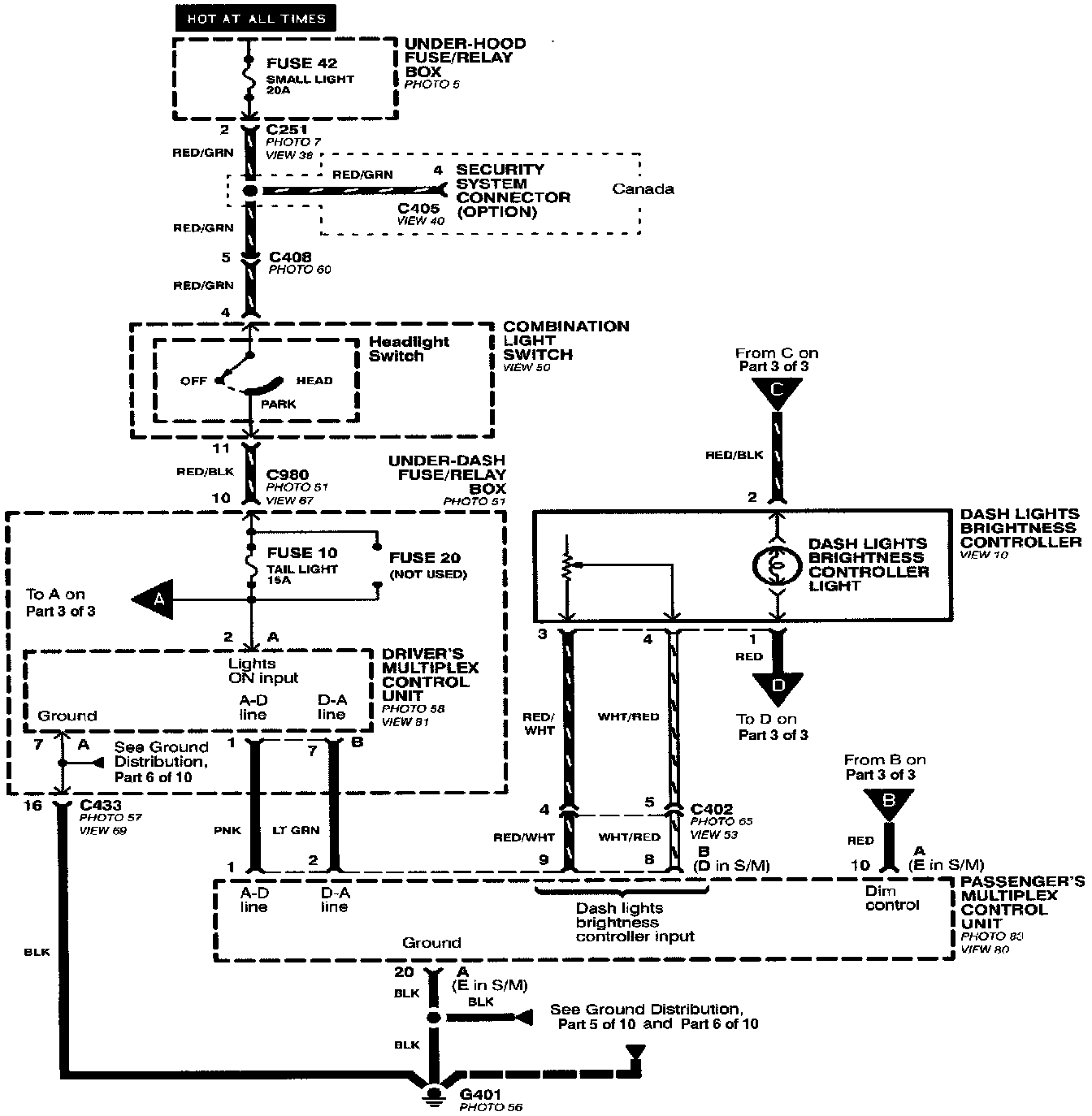

Dash And Console Lights (Part 1 Of 3):

Dash And Console Lights (Part 1 Of 3)
Combination Light Switch
Dash Lights Brightness Control Light
Dash Lights Brightness Controller
Driver's Multiplex Control Unit
Passenger's Multiplex Control Unit
Security System Connector
Under-Hood Fuse/Relay Box
Under-Dash Fuse/Relay Box

Dash And Console Lights (Part 2 Of 3):

Dash And Console Lights (Part 2 Of 3)
Cruise Control Main Switch
Door Multiplex Control Unit
Driver's Seat Heater Switch
Hazard Warning Switch
Moonroof Switch
Passenger's Seat Heater Switch
Under-Dash Fuse/Relay Box

Dash And Console Lights (Part 3 Of 3):

Dash And Console Lights (Part 3 Of 3)
Audio Unit
Ashtray Light
A/T Gear Position Console Light
Clock
Gauge Lights
Gauge Assembly
Heater Control Panel
Heater Control Panel Light
