P1457

Part 1 Of 2:

Part 2 Of 2:

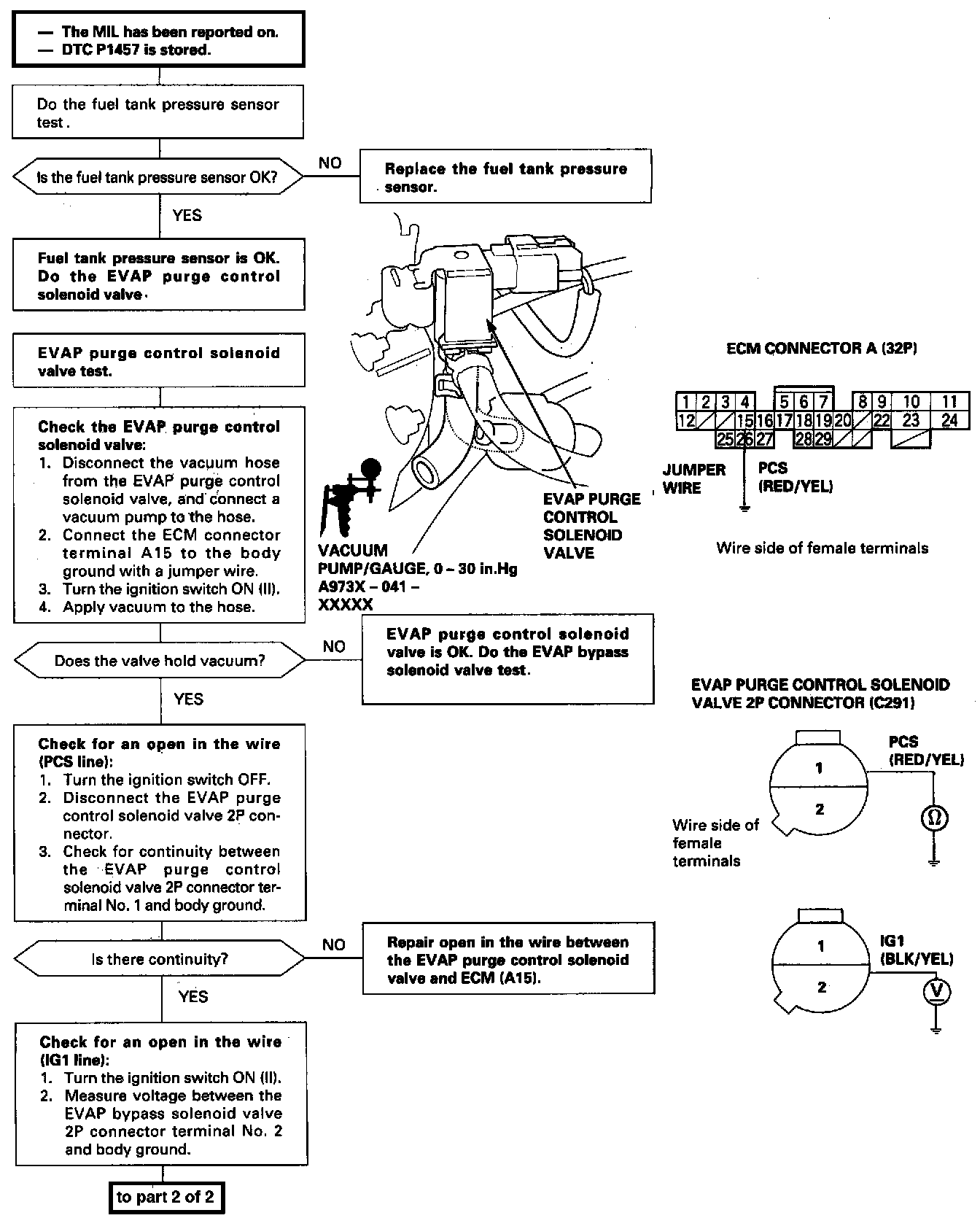

The scan tool indicates Diagnostic Trouble Code (DTC) P1457: Evaporative Emission (EVAP) control system leak detected (EVAP control canister system).

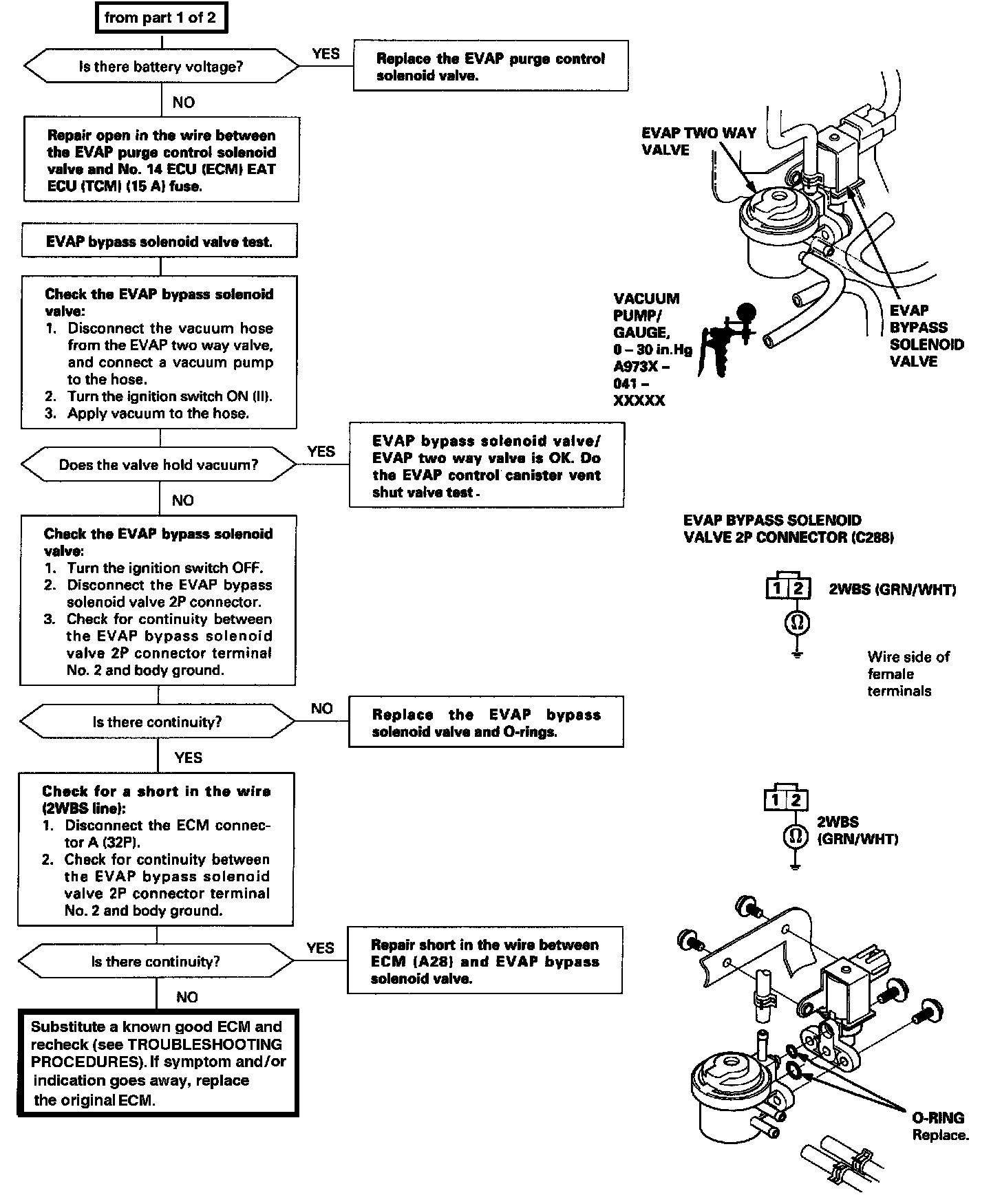

EVAP Control Canister Vent Shut Valve Test:

Canister System Leak Test:

Component Inspections
