Map Light: Testing and Inspection

Ceiling Light/Spotlight Test

1. Turn the light switch OFF.
2. Pry off the lens.
3. Remove the two screws and the housing.

Ceiling Light/Spotlight Test:




4. Disconnect the 4P connector from the housing.

Ceiling Light/Spotlight Test:

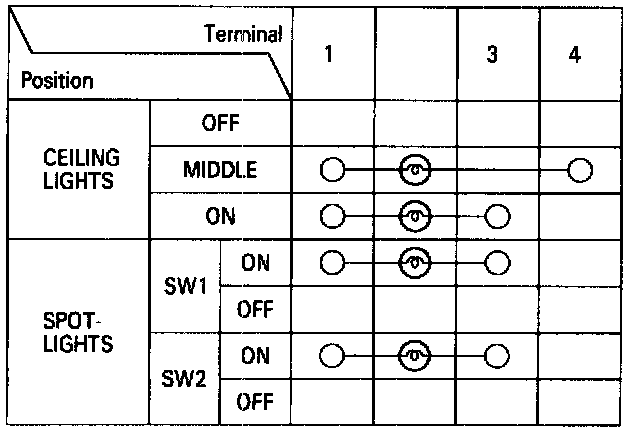

5. Check for continuity between the terminals in each switch position according to the table.
