Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1999
>>
Accord EX Coupe L4-2254cc 2.3L SOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C103 Junction Connector
C103 Junction Connector

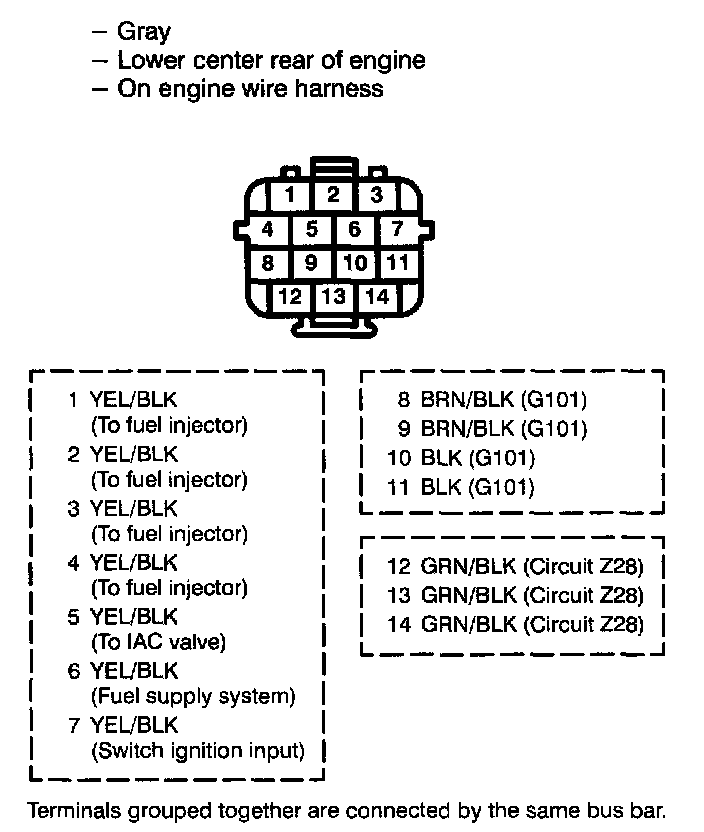

C103 Junction Connector (L4):
