Home >> Honda >> 1999 >> Accord EX Coupe L4-2254cc 2.3L SOHC (VTEC) MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Manual A/C

Manual A/C

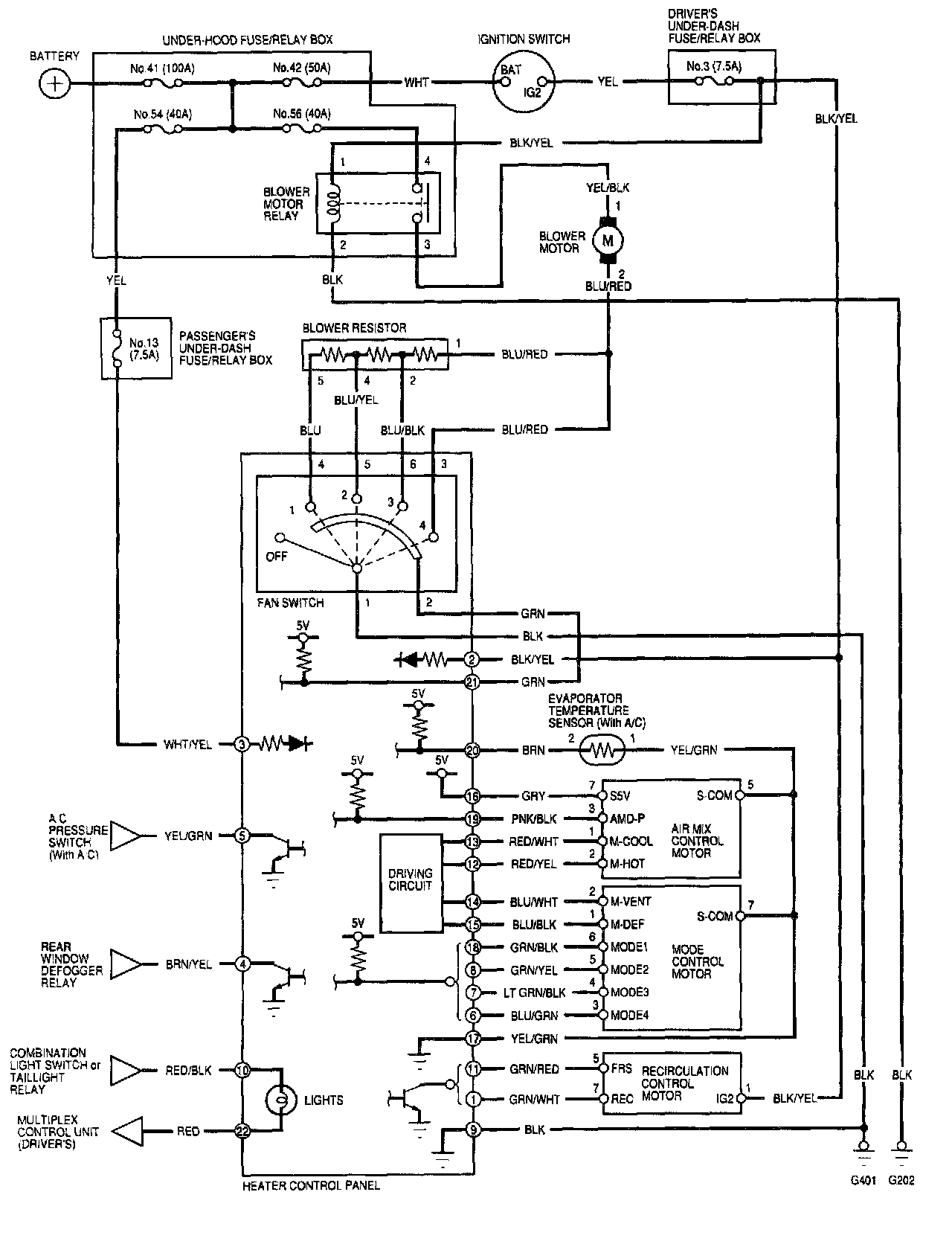

Air Door Control Schematic:



Heater Block Diagram:

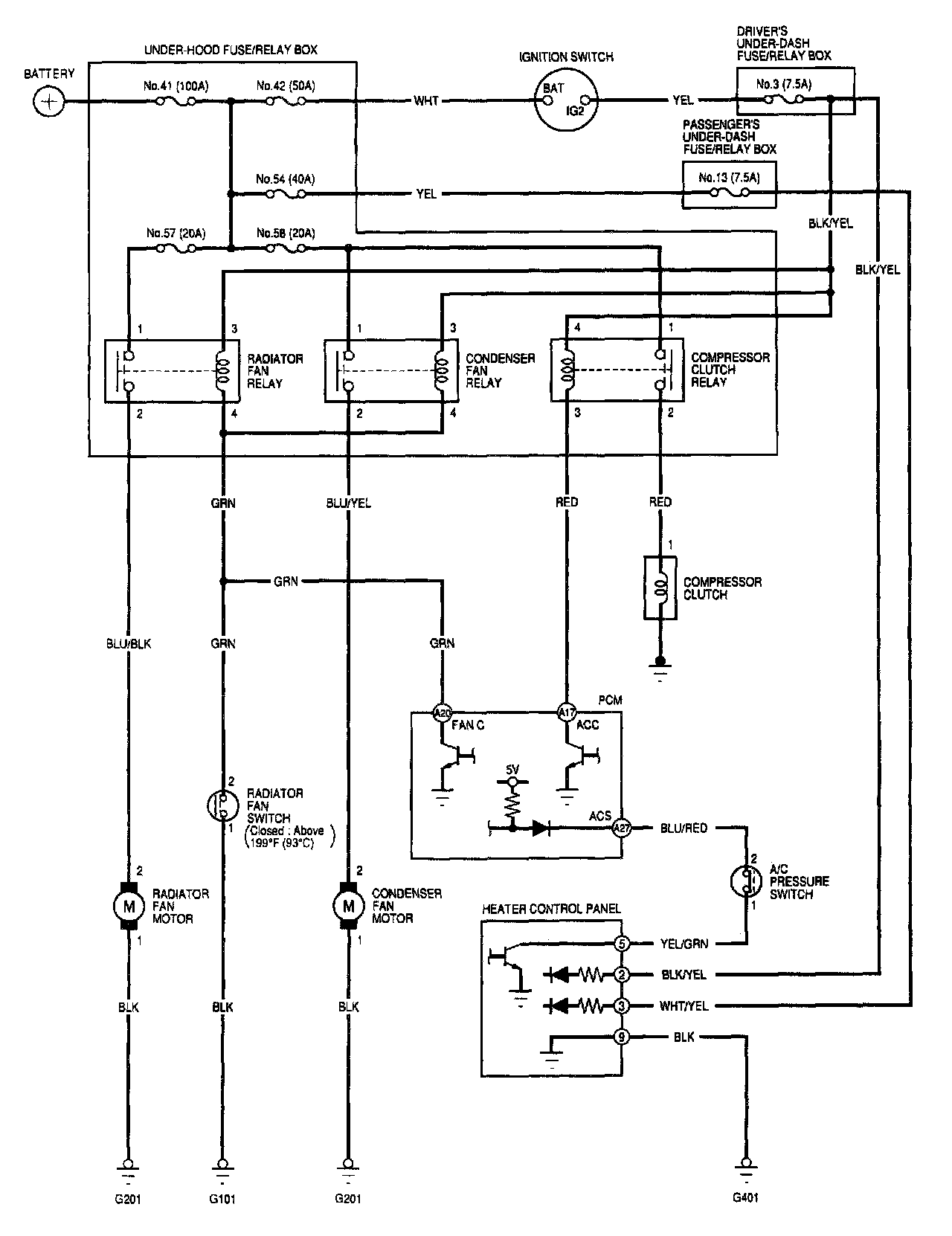

Air Conditioning Block Diagram:
