Passenger's Dash Board Lower Cover Removal and Installation

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Take care not to scratch the dashboard and related parts.

1. Remove the dashboard center lower cover (see step 1 of Driver's Dashboard Lower Cover Removal and Installation).




2. Detach the clips, and release the tabs (A), then remove the right fuse box cover.

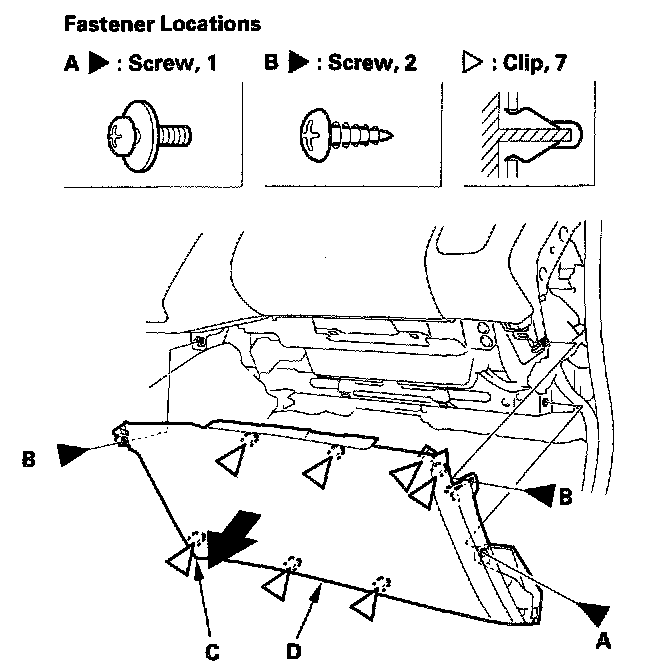

3. Remove the screws (A and B).
4. Detach the lower left clip (C) first by pulling down on the passenger's dashboard lower cover (D), then detach the remaining clips and remove the lower cover.
5. Install in the reverse order of removal.
