Home >> Honda >> 1999 >> Accord EX Coupe L4-2254cc 2.3L SOHC (VTEC) MFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Schematics

Schematics

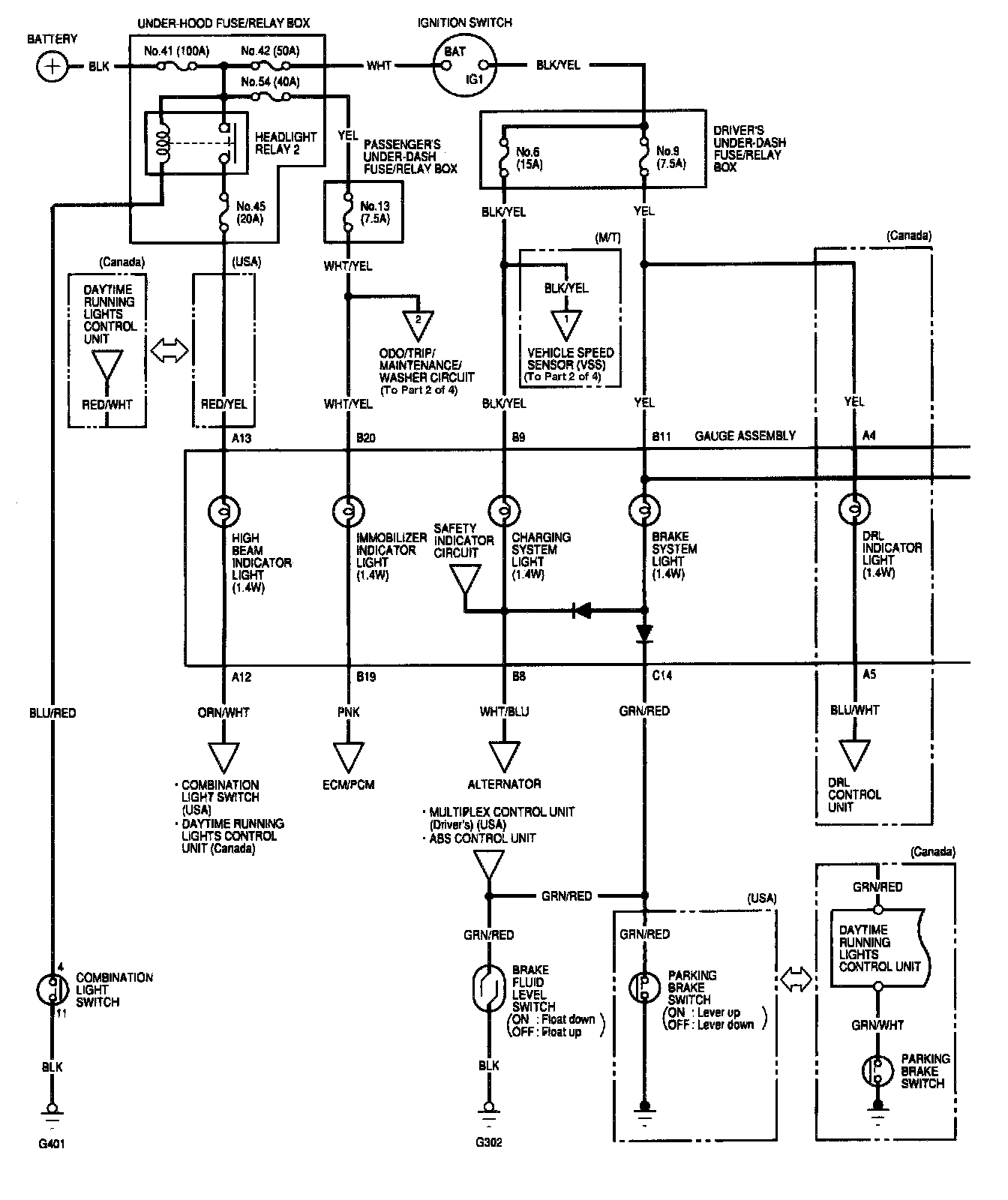

Gauges (Part 1 Of 4):

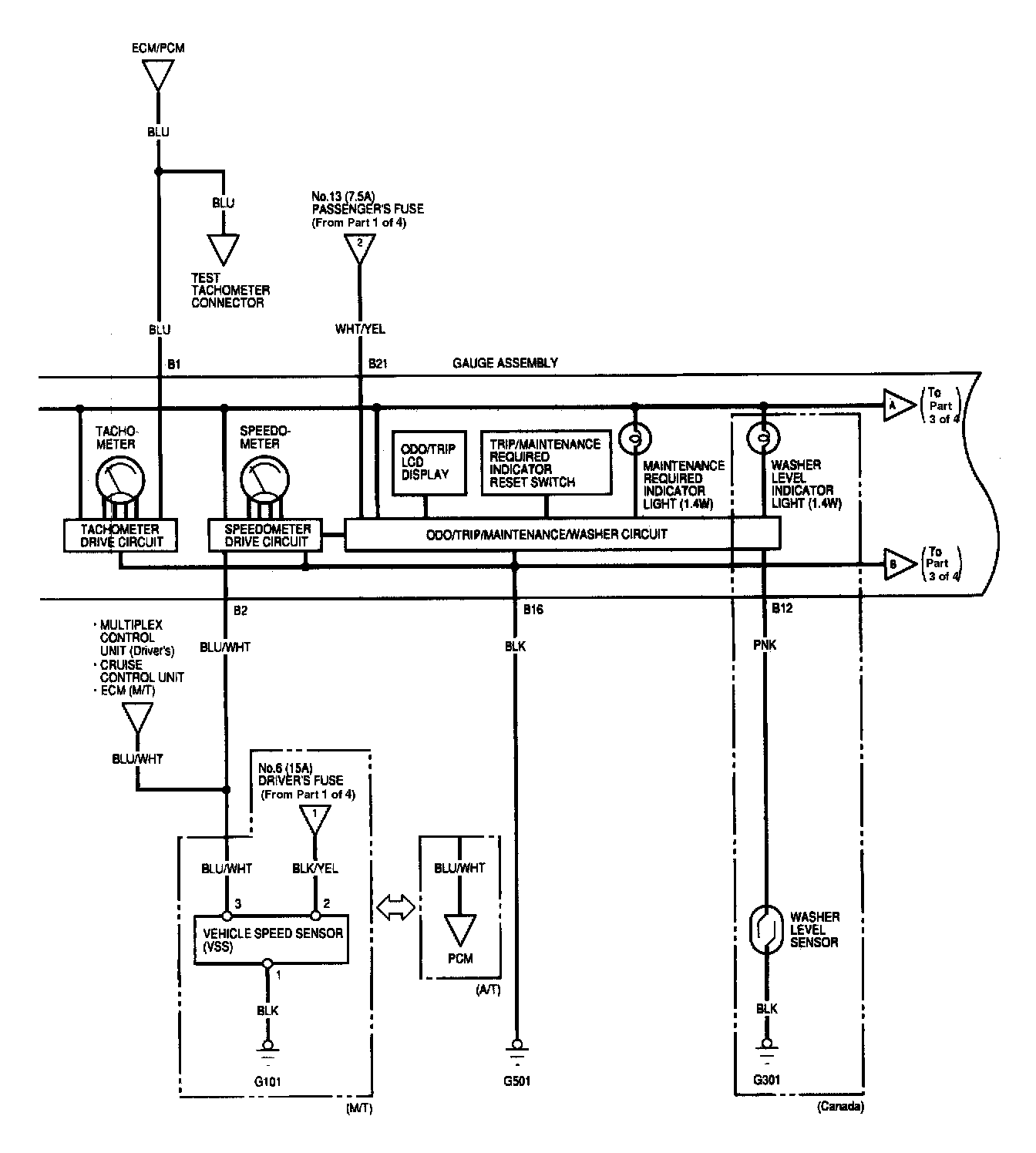

Gauges (Part 2 Of 4):

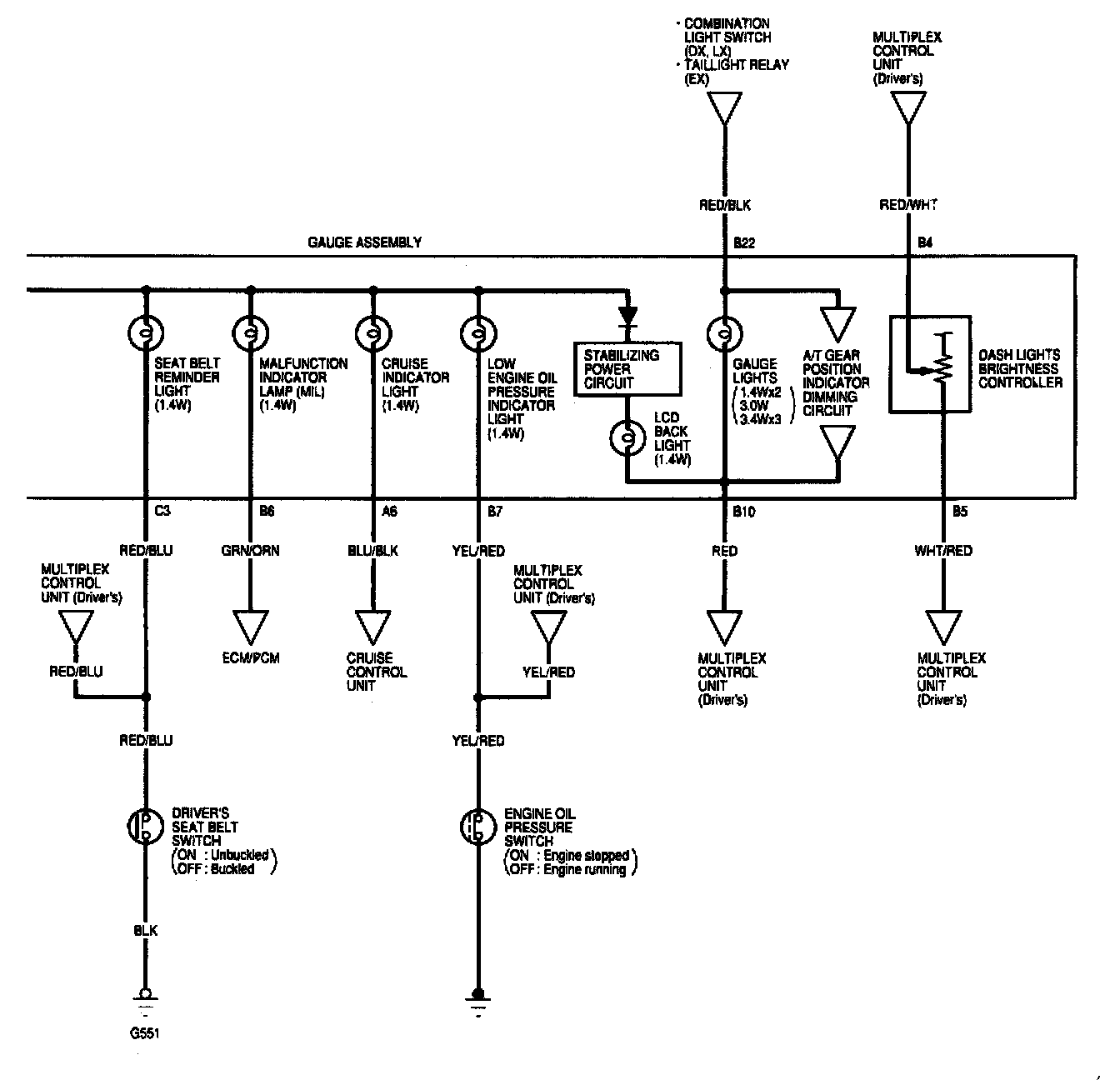

Gauges (Part 3 Of 4):

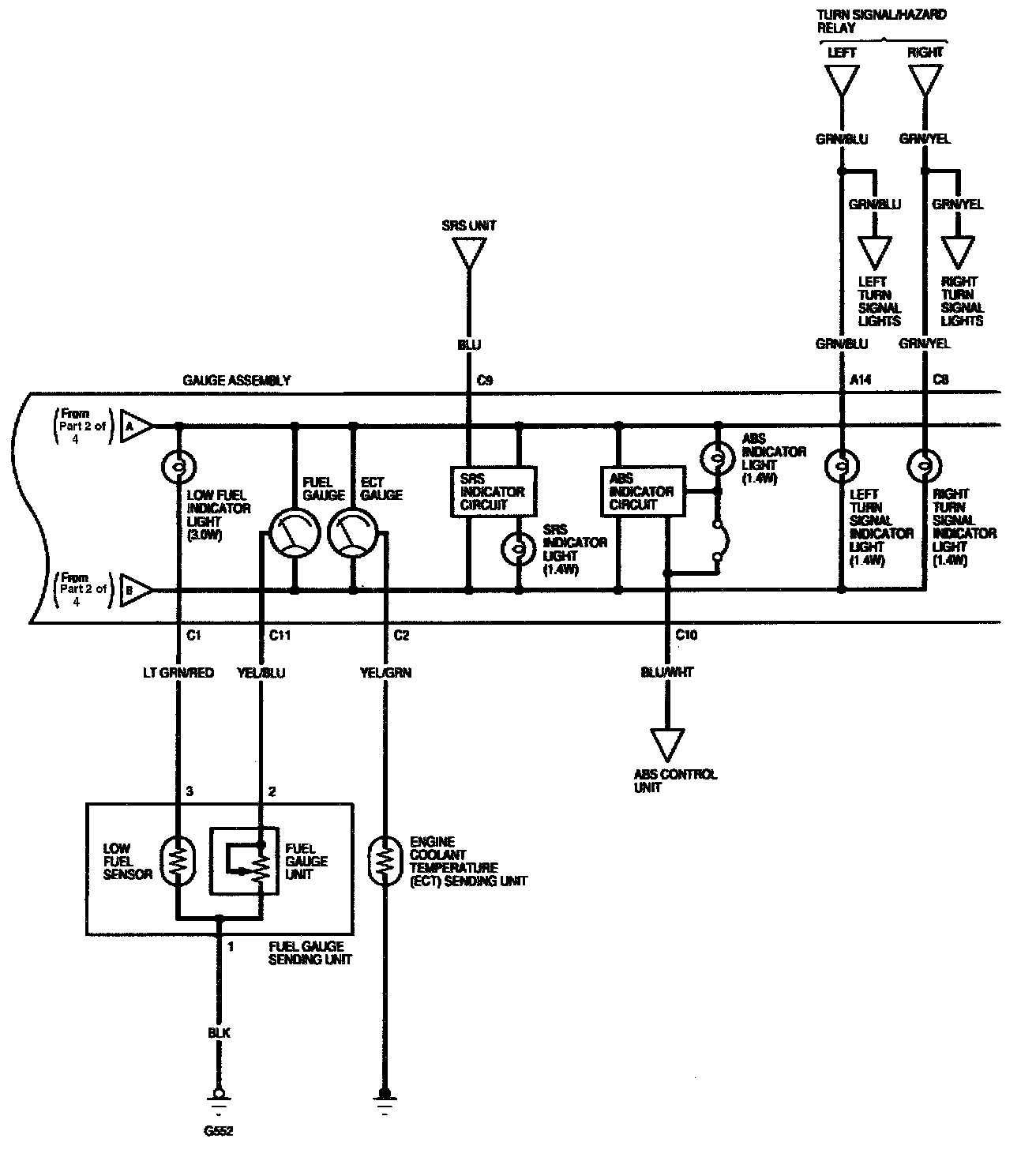

Gauges (Part 4 Of 4):
