Trunk Lamp: Testing and Inspection

1. Open the trunk lid.

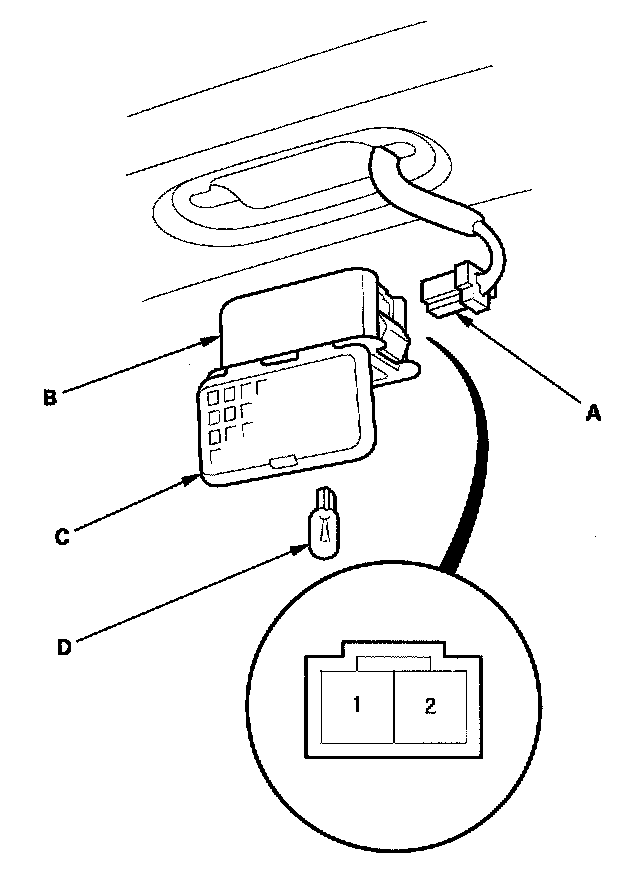

2. Pry out the trunk light assembly.




3. Disconnect the 2P connector (A) from the housing (B).
4. Open the trunk light cover (C).
5. Make sure that the bulb (D) is OK. Check for continuity between the No.1 and No.2 terminals.
