Programmed Fuel Injection (PGM-FI) System

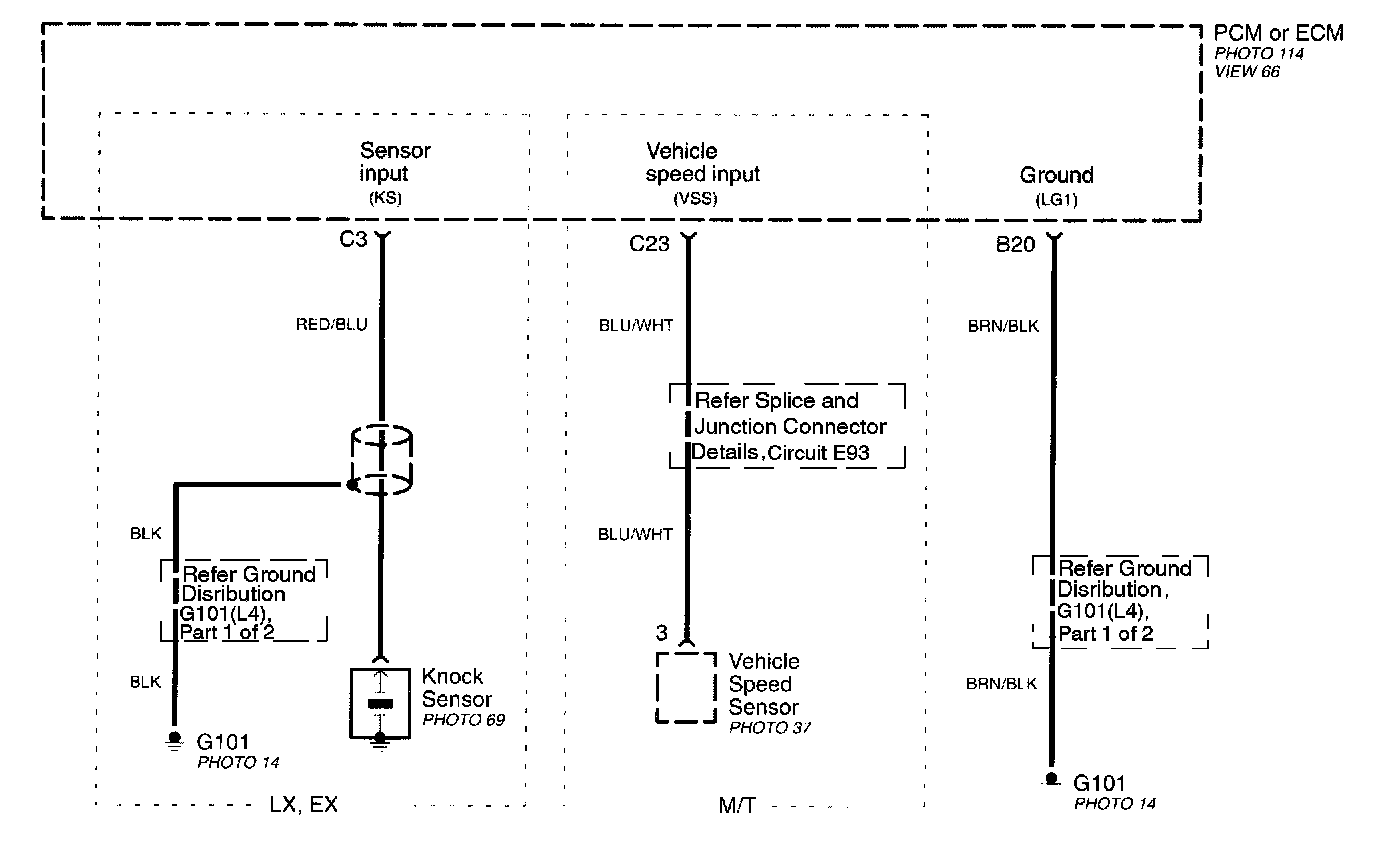

Part 1 Of 4:

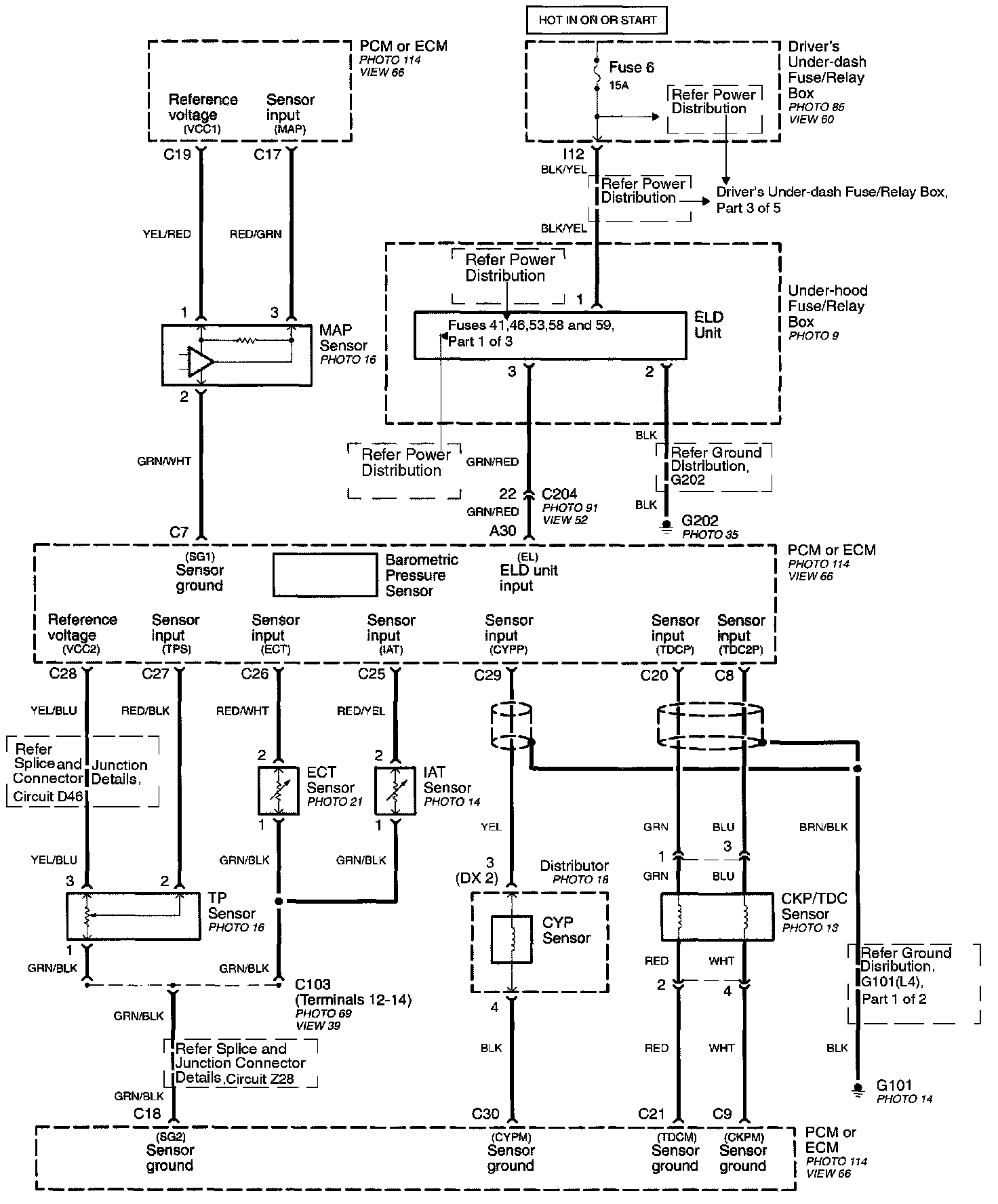

Part 2 Of 4:

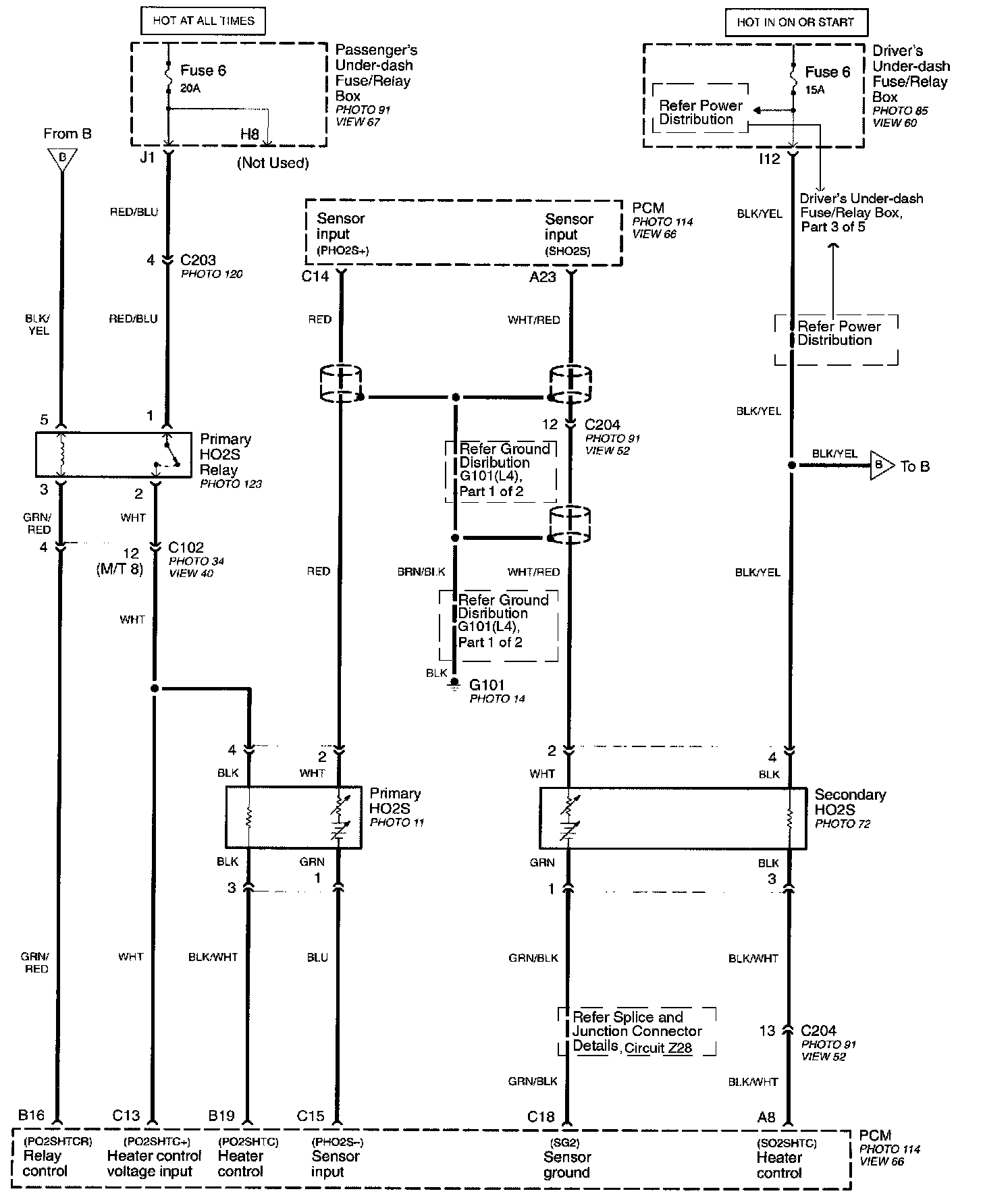

Part 3 Of 4:



Part 4 Of 4 (All except ULEV):



Part 4 Of 4 (ULEV):
