Mechanical Specifications

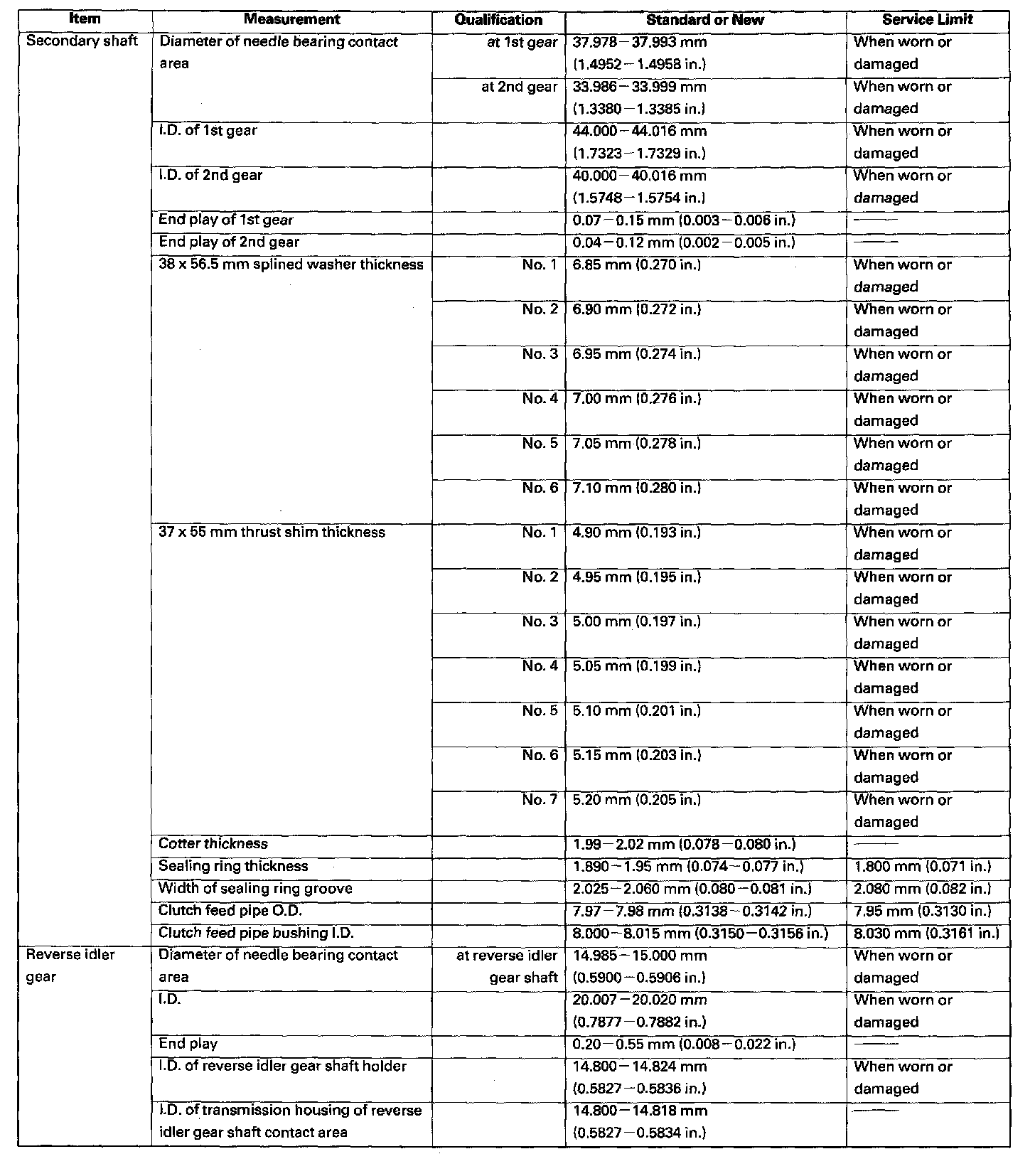

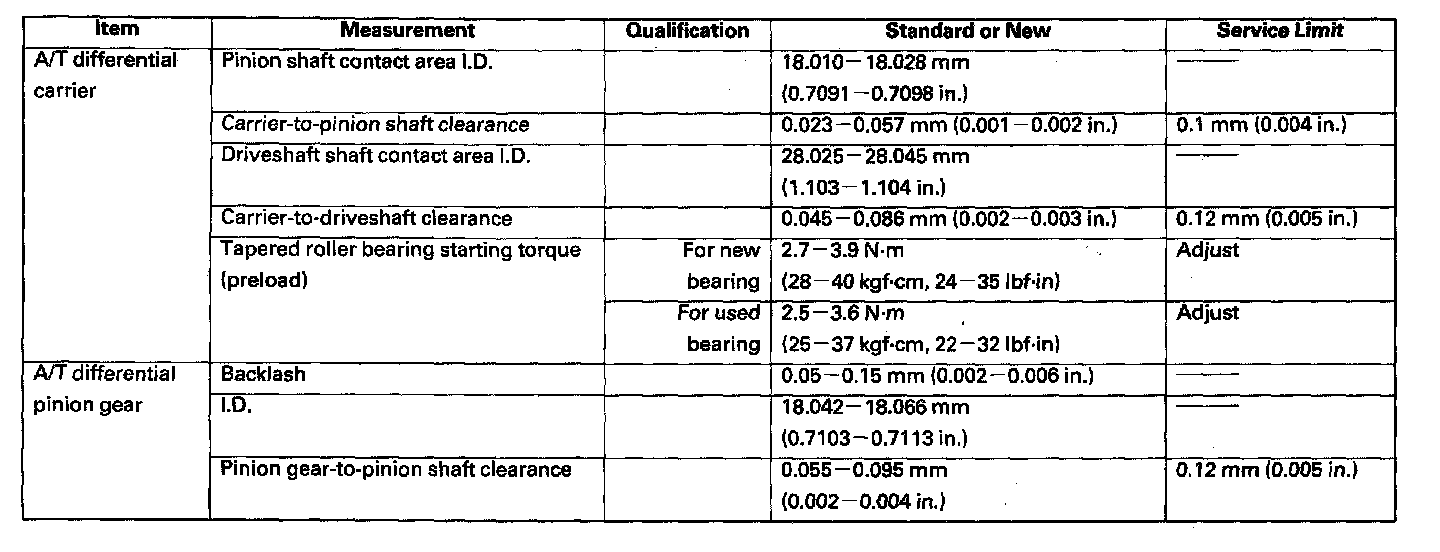

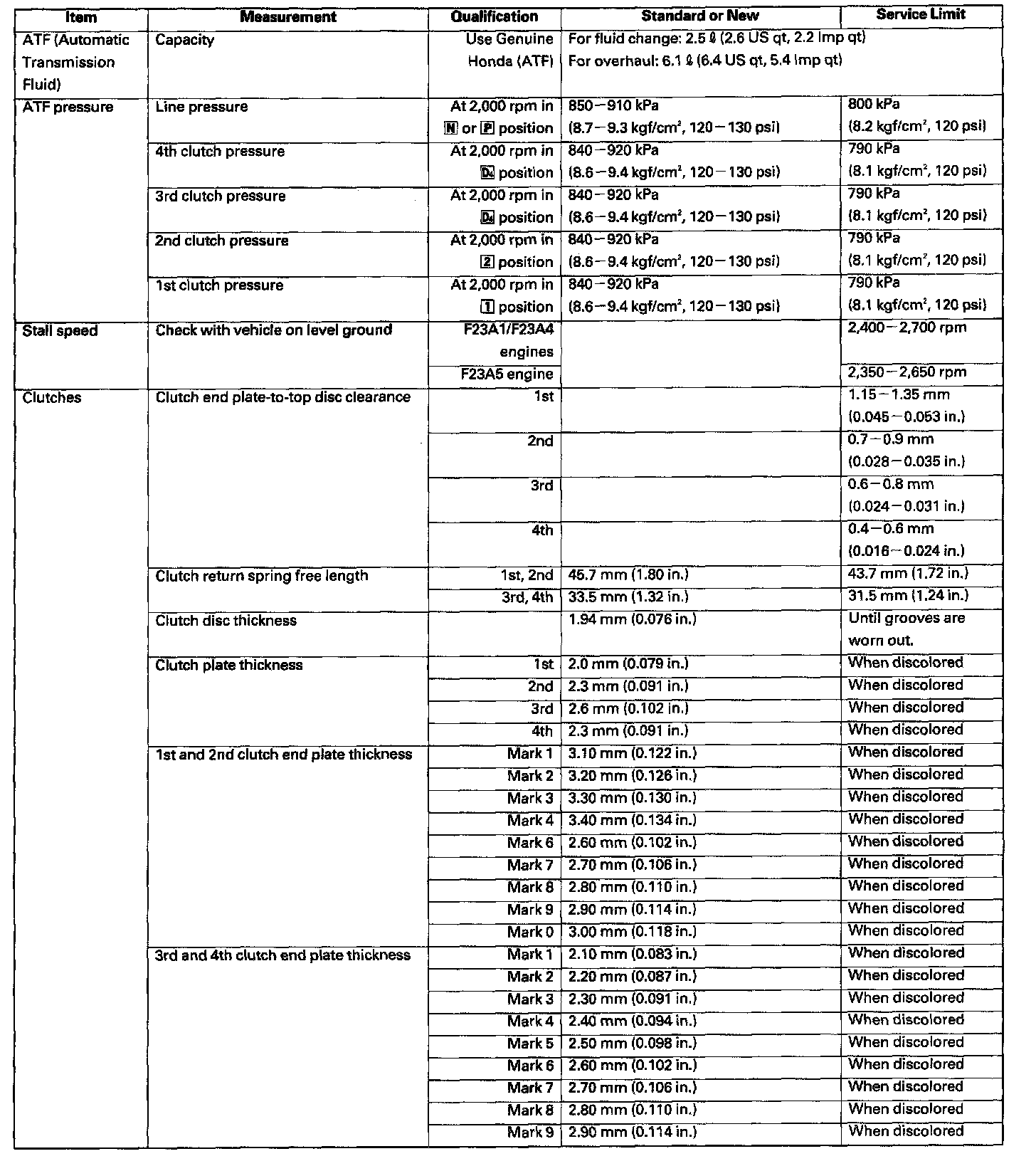

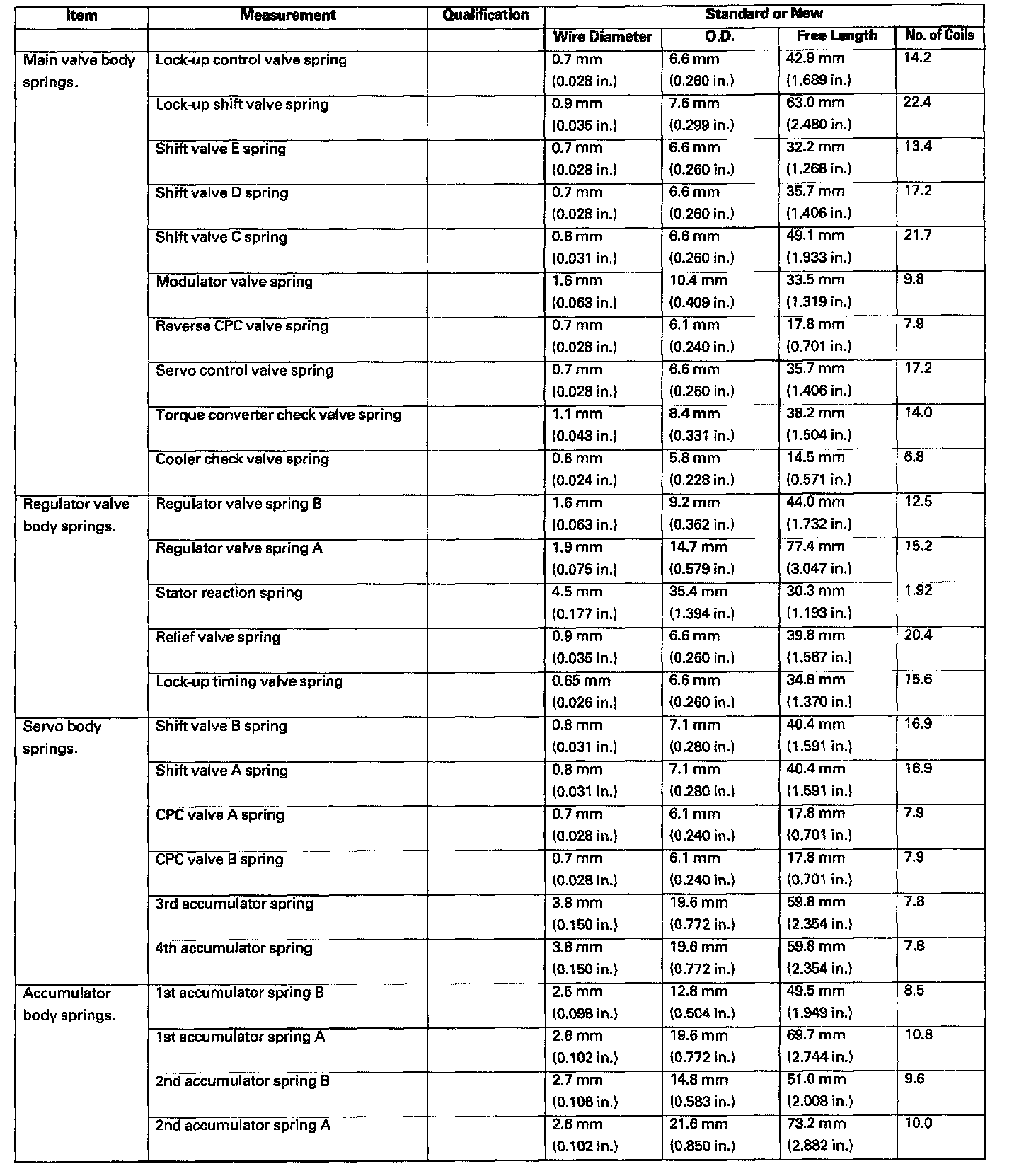

Automatic Transmission And Differential (Part 1 Of 6):

Automatic Transmission And Differential (Part 2 Of 6):

Automatic Transmission And Differential (Part 3 Of 6):

Automatic Transmission And Differential (Part 4 Of 6):

Automatic Transmission And Differential (Part 5 Of 6):

Automatic Transmission And Differential (Part 6 Of 6):

Automatic Transmission And Differential With SULEV Emissions (Part 1 Of 5):

Automatic Transmission And Differential With SULEV Emissions (Part 2 Of 5):

Automatic Transmission And Differential With SULEV Emissions (Part 3 Of 5):

Automatic Transmission And Differential With SULEV Emissions (Part 4 Of 5):

Automatic Transmission And Differential With SULEV Emissions (Part 5 Of 5):
