Connectors and Harnesses

Connector Index:

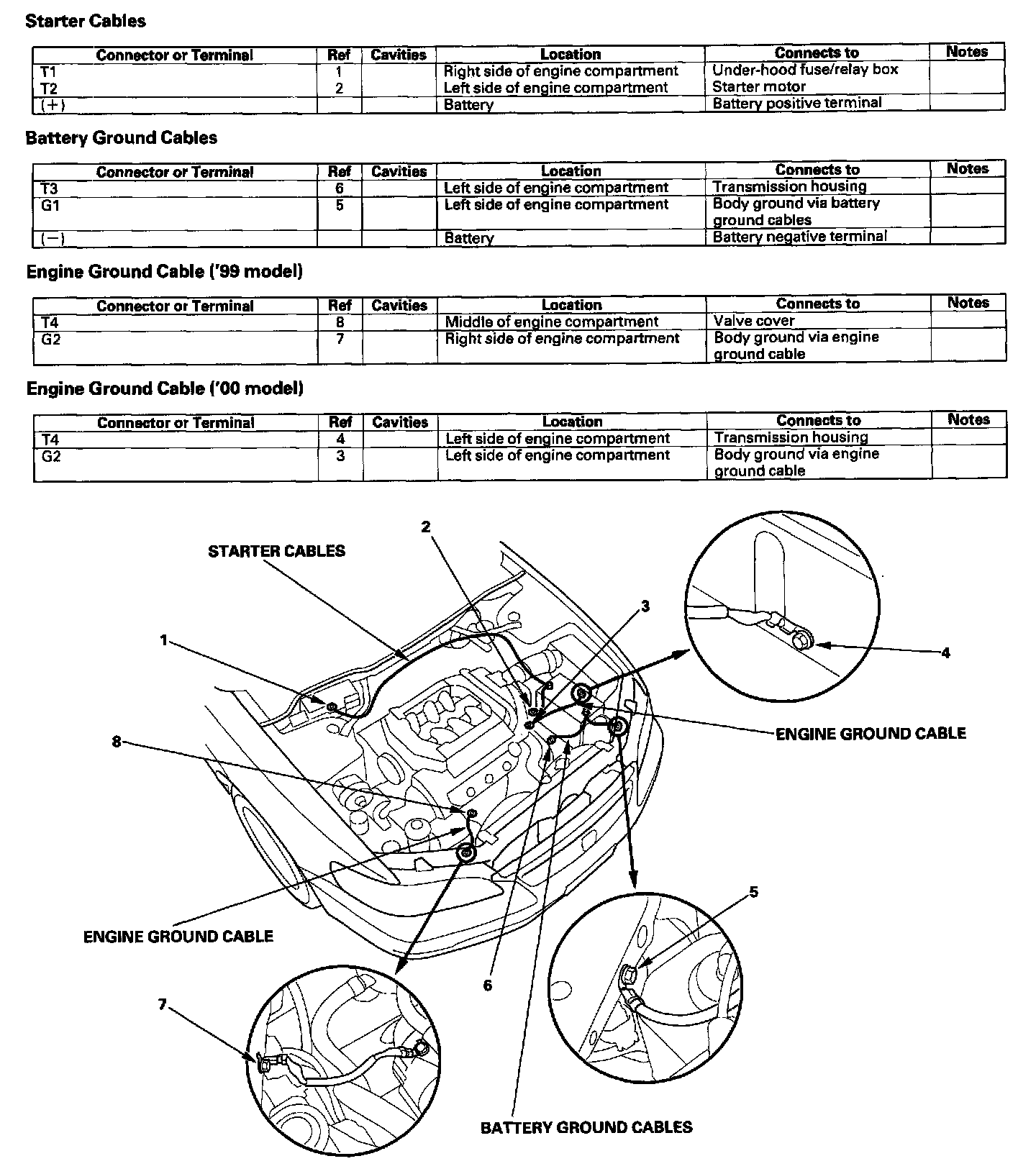

Starter Cables, Battery Ground Cables, Engine Ground Cable ('99 - 00 Models):

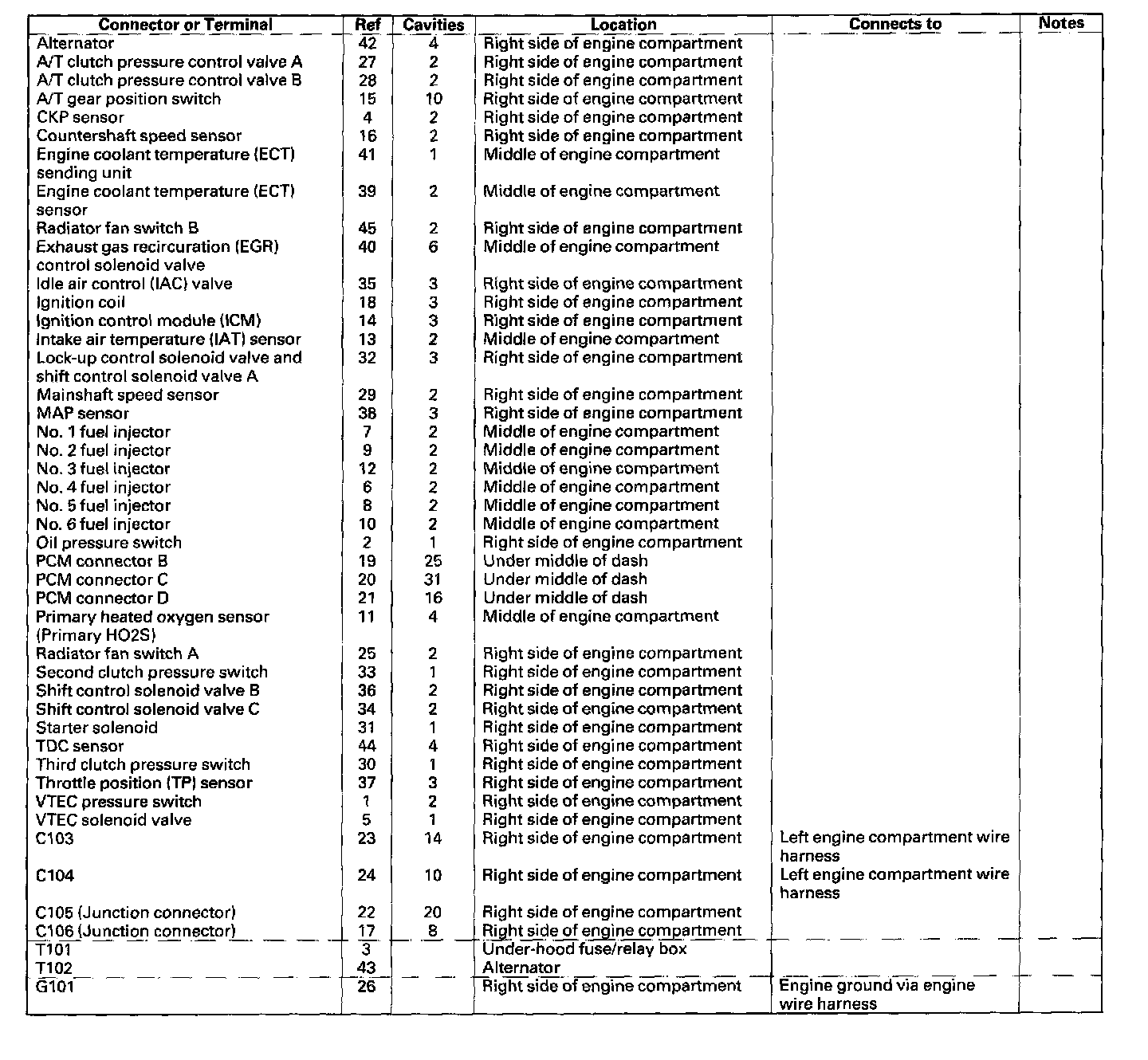

Engine Wire Harness - Index:

Engine Wire Harness - View:

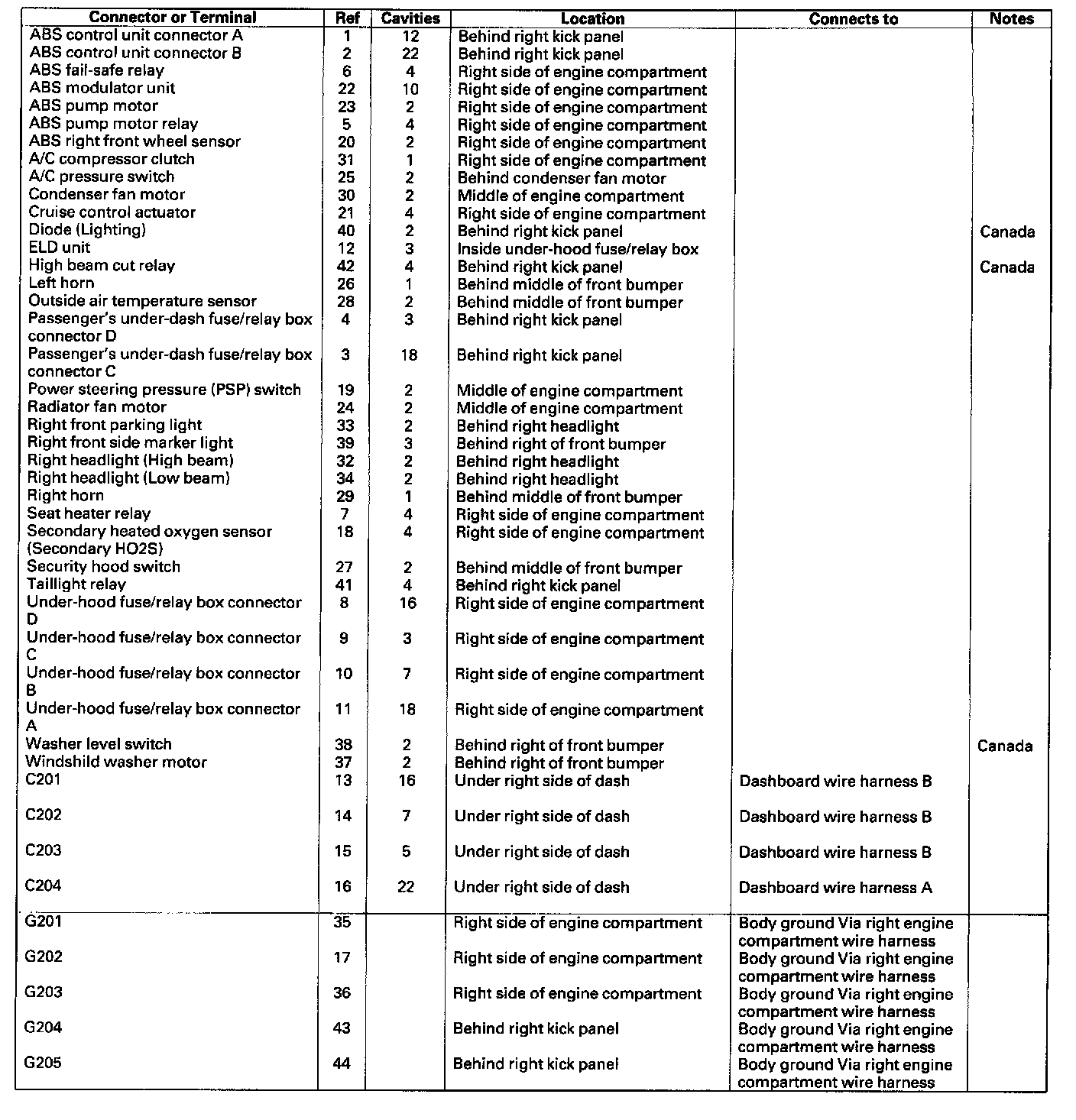

Right Engine Compartment Wire Harness - Index:

Right Engine Compartment Wire Harness - View:

Left Engine Compartment Wire Harness - Index:

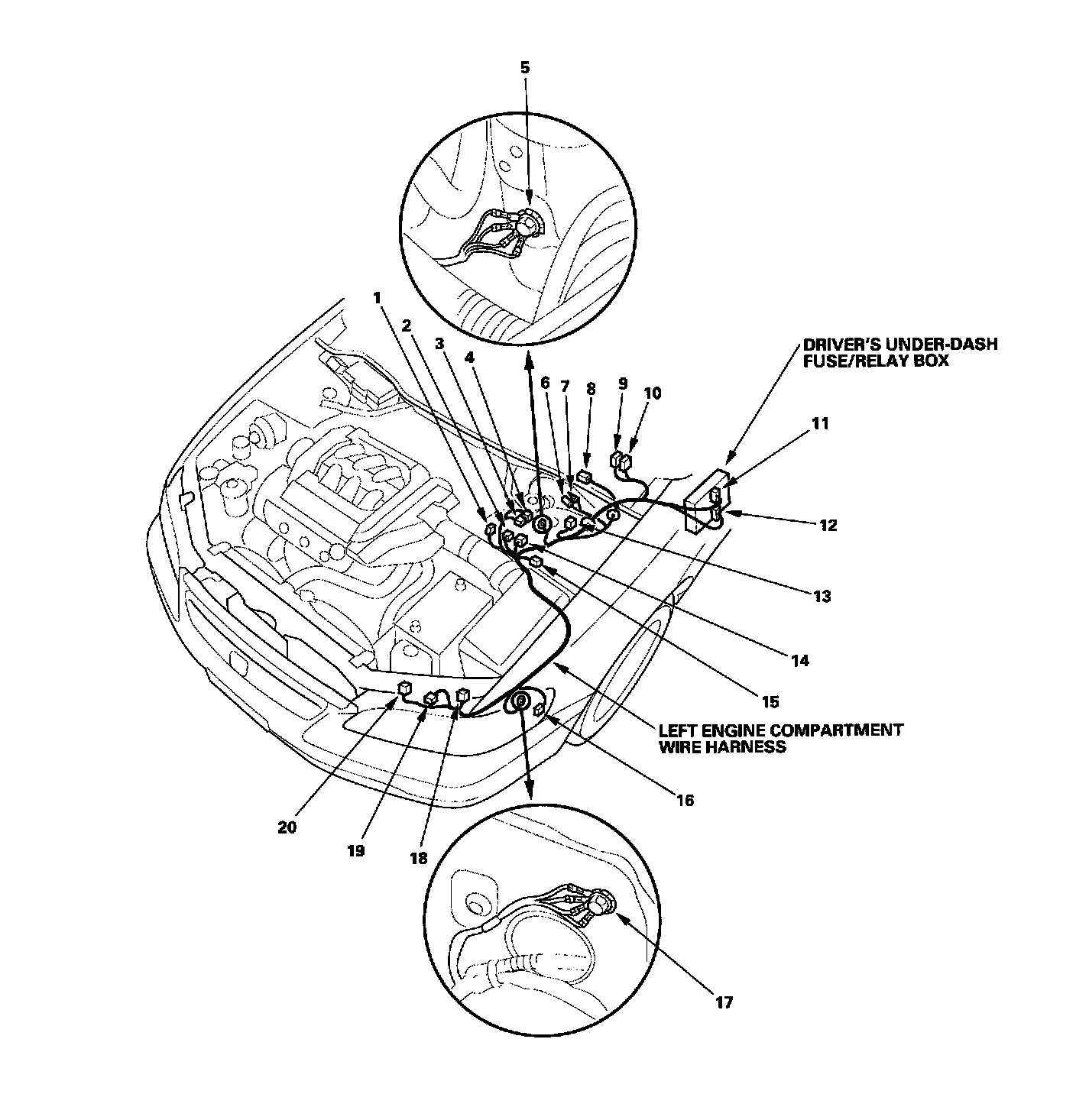

Left Engine Compartment Wire Harness - View:

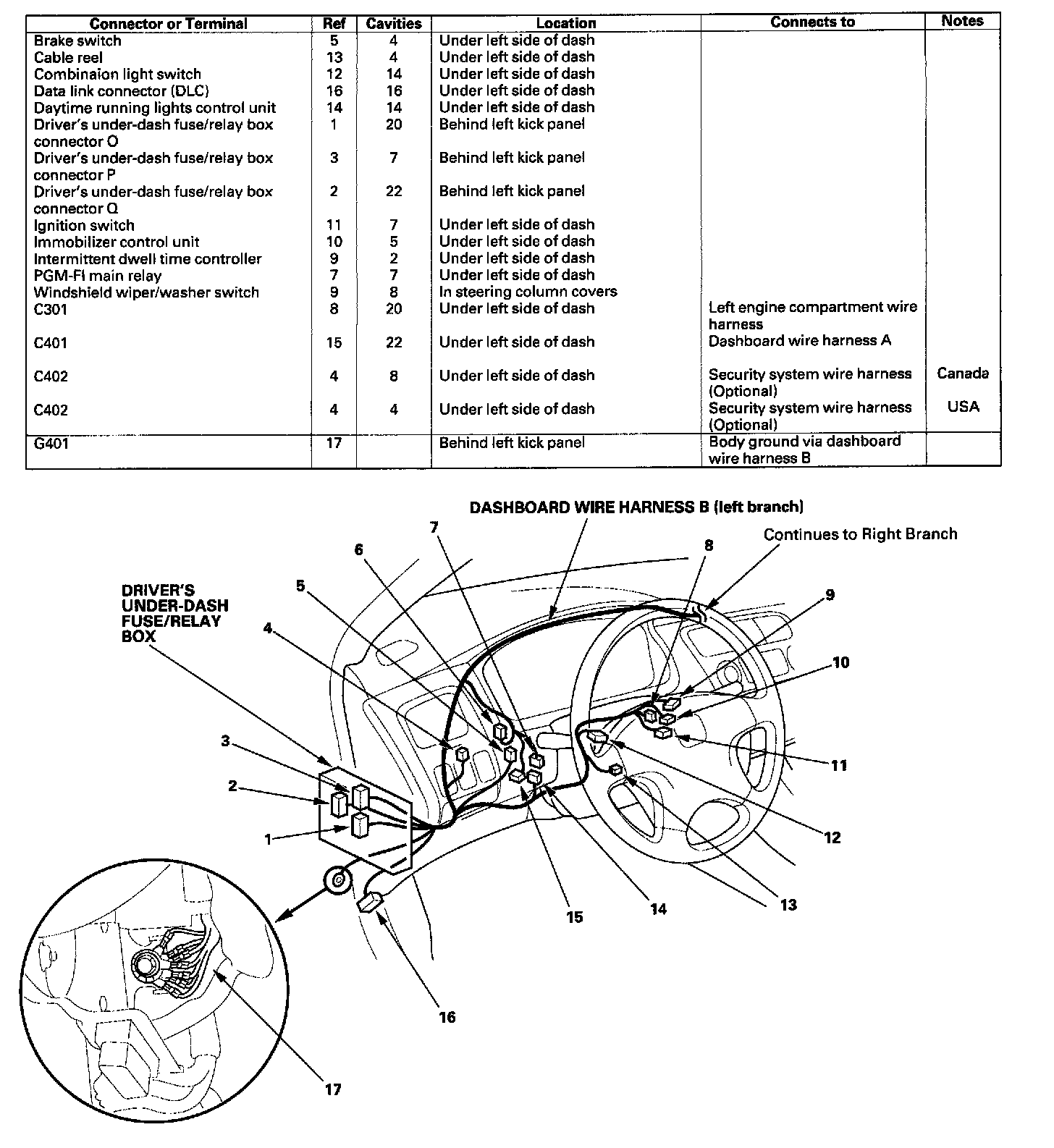

Dashboard Wire Harness B (left Branch):

Dashboard Wire Harness B (Right Branch):

Dashboard Wire Harness A - Index:

Dashboard Wire Harness A - Index/ View:
