Parking Brake Warning Switch: Testing and Inspection

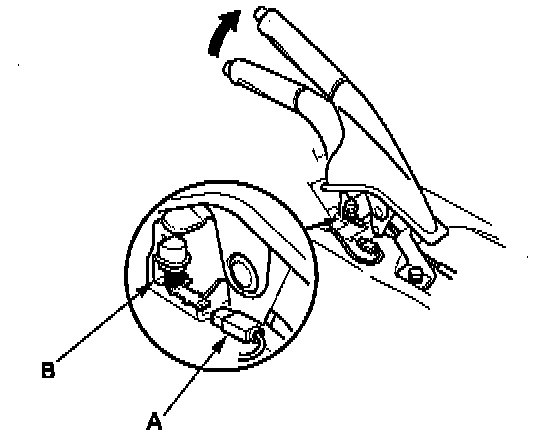

1. Remove the rear console, and disconnect the connector (A) from the switch (B).
2. Check for continuity between the positive terminal and body ground:
- With the brake lever up, there should be continuity.
- With the brake lever down, there should be no continuity.

NOTE (Canada): If the parking brake switch is OK, but the brake system indicator does not function, perform the input test for the daytime running lights control unit.
