Fuel Gauge - Readings Are Inaccurate
98-056April 20, 1999
*Applies To:
1998-99 Accord V6 - thru VIN 1HGCG1...XA019127
- thru VIN 1HGCG2...XA013424*
Inaccurate Fuel Gauge
(Supersedes 98-056, dated July 28, 1998)
SYMPTOM
The fuel gauge may not read accurately when it is between 1/2 and Full, and/or the gauge may not go to Full after the tank is filled.
PROBABLE CAUSE
Sulfur in the fuel affects the resistance of the fuel gauge sending unit.
CORRECTIVE ACTION
Replace the fuel gauge sending unit with an improved unit.
PARTS INFORMATION
Fuel Gauge Sending Unit:
*P/N 17630-S84-305, H/C 6183289*
WARRANTY CLAIM INFORMATION
In warranty: The normal warranty applies.
Operation number: 310120
Flat rate time: 0.6 hour
Failed part: P/N 17630-S84-A01
H/C 5433404
Detect code: 039
Contention code: B99
Template ID: 98-056A
Skill level: Repair Technician
Out of warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.
REPAIR PROCEDURE
1. Open the trunk. Remove the trunk floor.
2. Remove the fuel pump access cover (3 screws).
3. Disconnect the 5P connector from the fuel pump assembly.

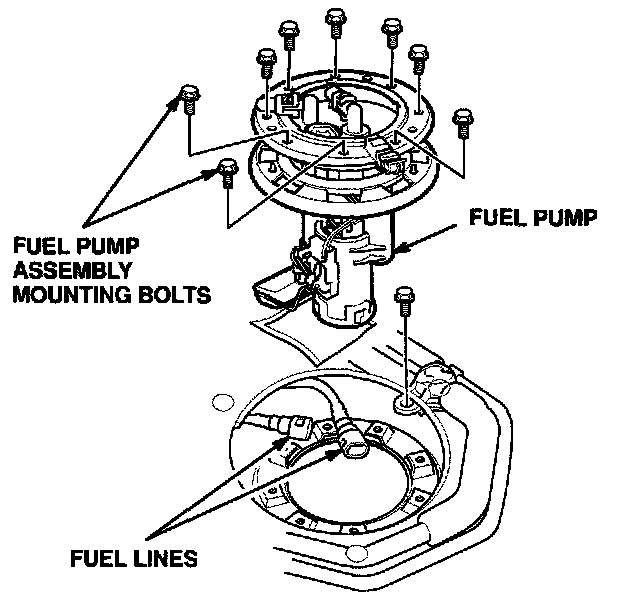

4. Disconnect the fuel lines from the fuel pump assembly (quick-disconnect fittings).
5. Remove the fuel pump assembly mounting bolts. Remove the fuel pump from the tank.

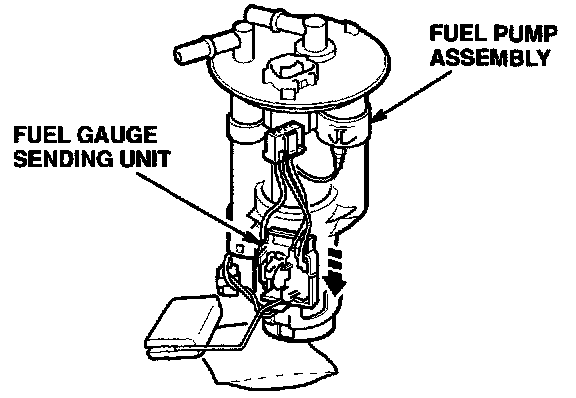

6. Remove the fuel gauge sending unit from the fuel pump assembly.
7. Install the new fuel gauge sending unit on the fuel pump assembly by placing it against the assembly and sliding it up until it locks in place.
8. Reinstall the fuel pump assembly in the fuel tank, and reconnect the electrical connector and lines. Torque the mounting bolts to 4 Nm (3 lb-ft).
9. Reinstall the access cover and the trunk floor.
