Washer Fluid Level Switch: Testing and Inspection
1.

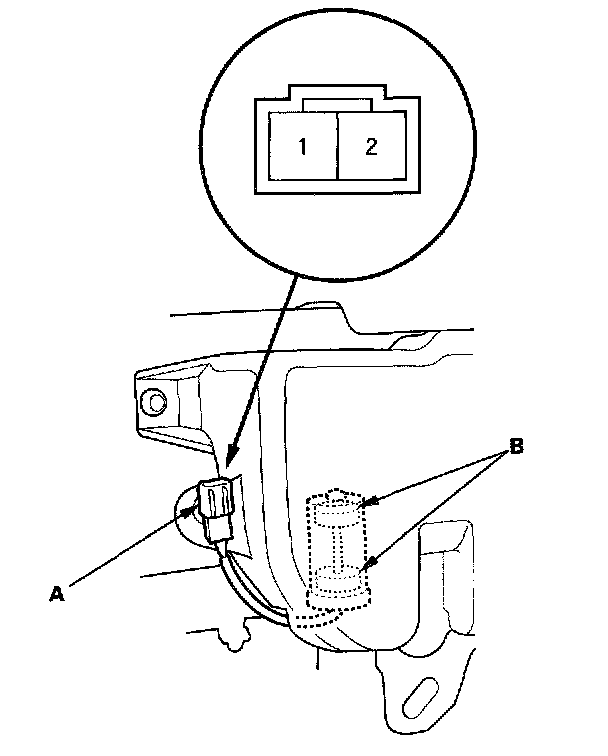

Remove the left inner fender.
2.
Disconnect the switch 2P connector (A).
3.

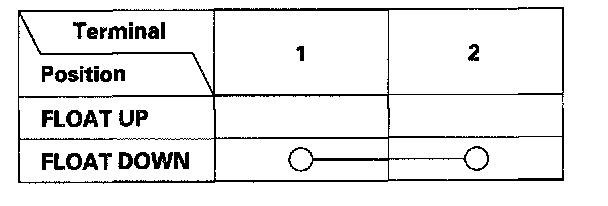

Check for continuity between the terminals in each float (B) position according to the table.
