Circuit Diagram

Keyless Entry/ Security Alarm System (Part 1 Of 5):

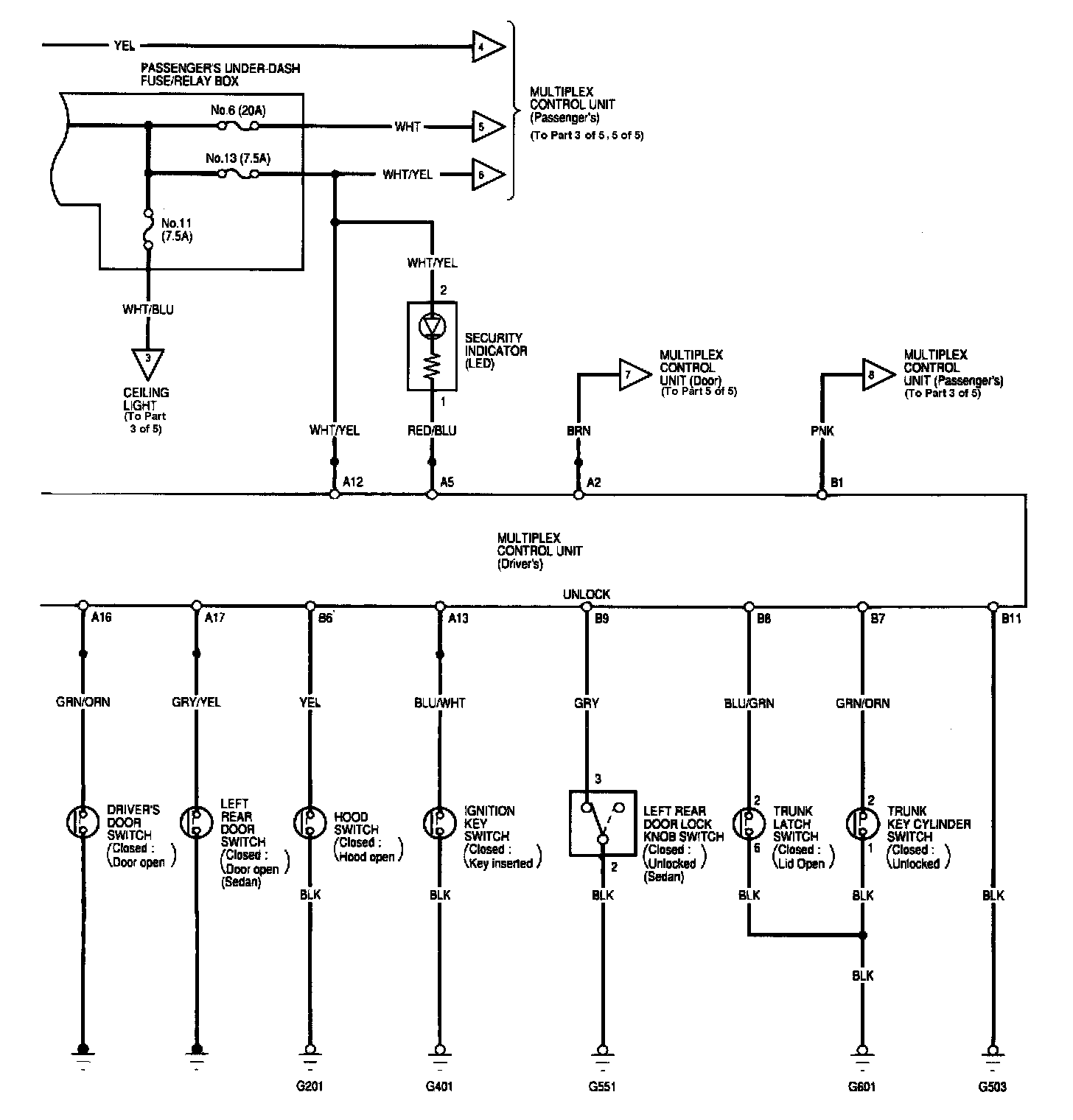

Keyless Entry/ Security Alarm System (Part 2 Of 5):

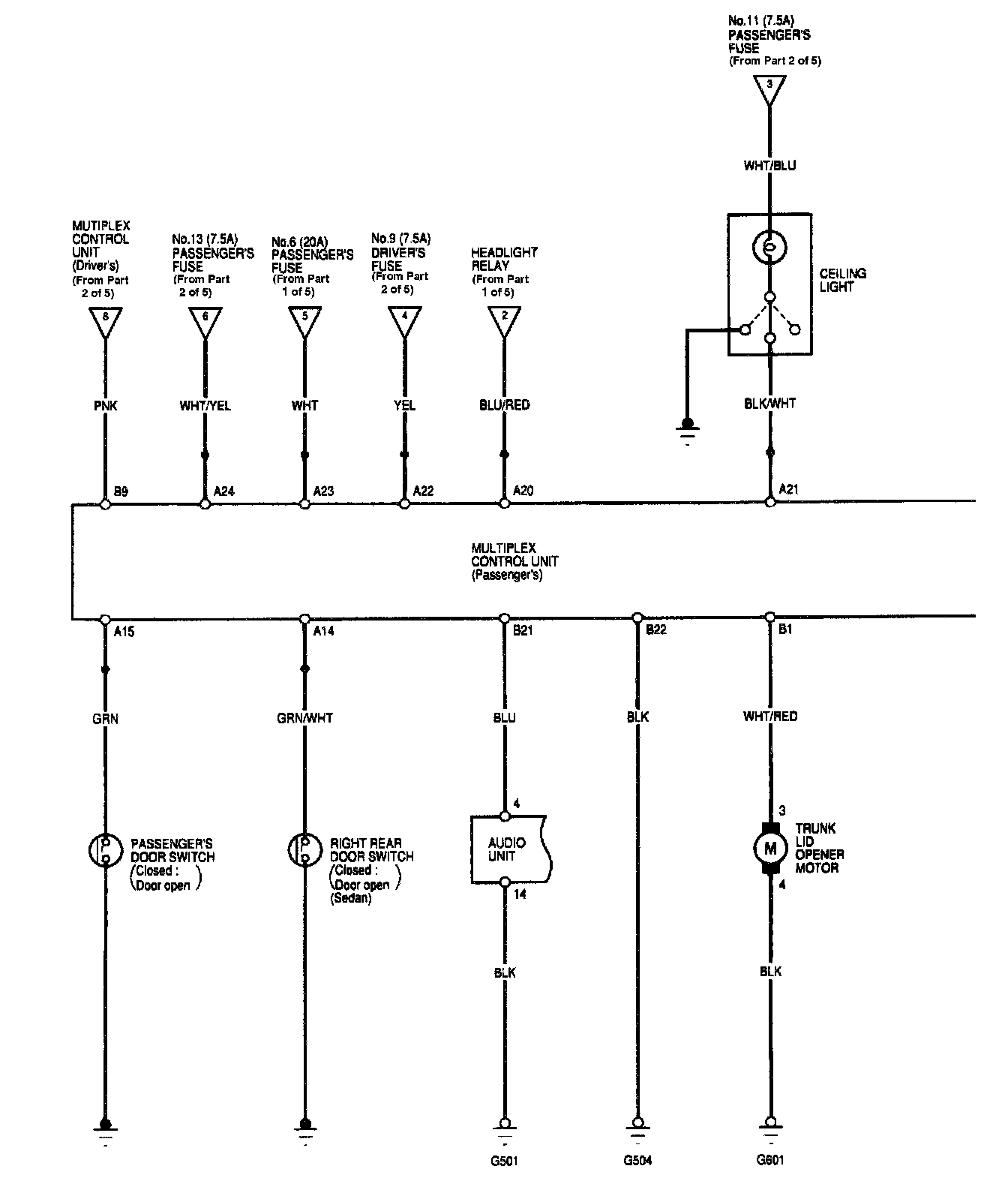

Keyless Entry/ Security Alarm System (Part 3 Of 5):

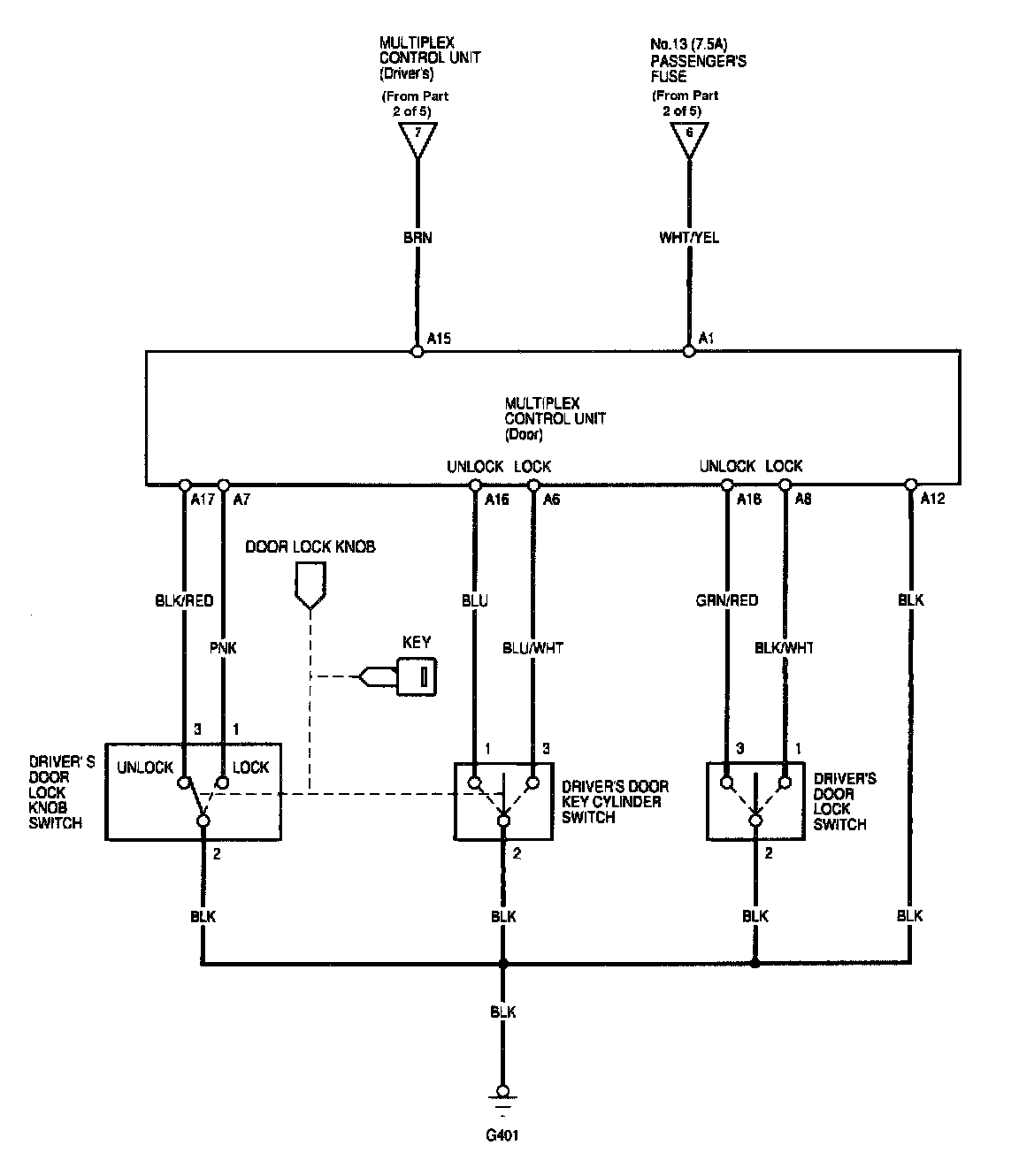

Keyless Entry/ Security Alarm System (Part 4 Of 5):

Keyless Entry/ Security Alarm System (Part 5 Of 5):
