Electrical Troubleshooting Manual Diagrams

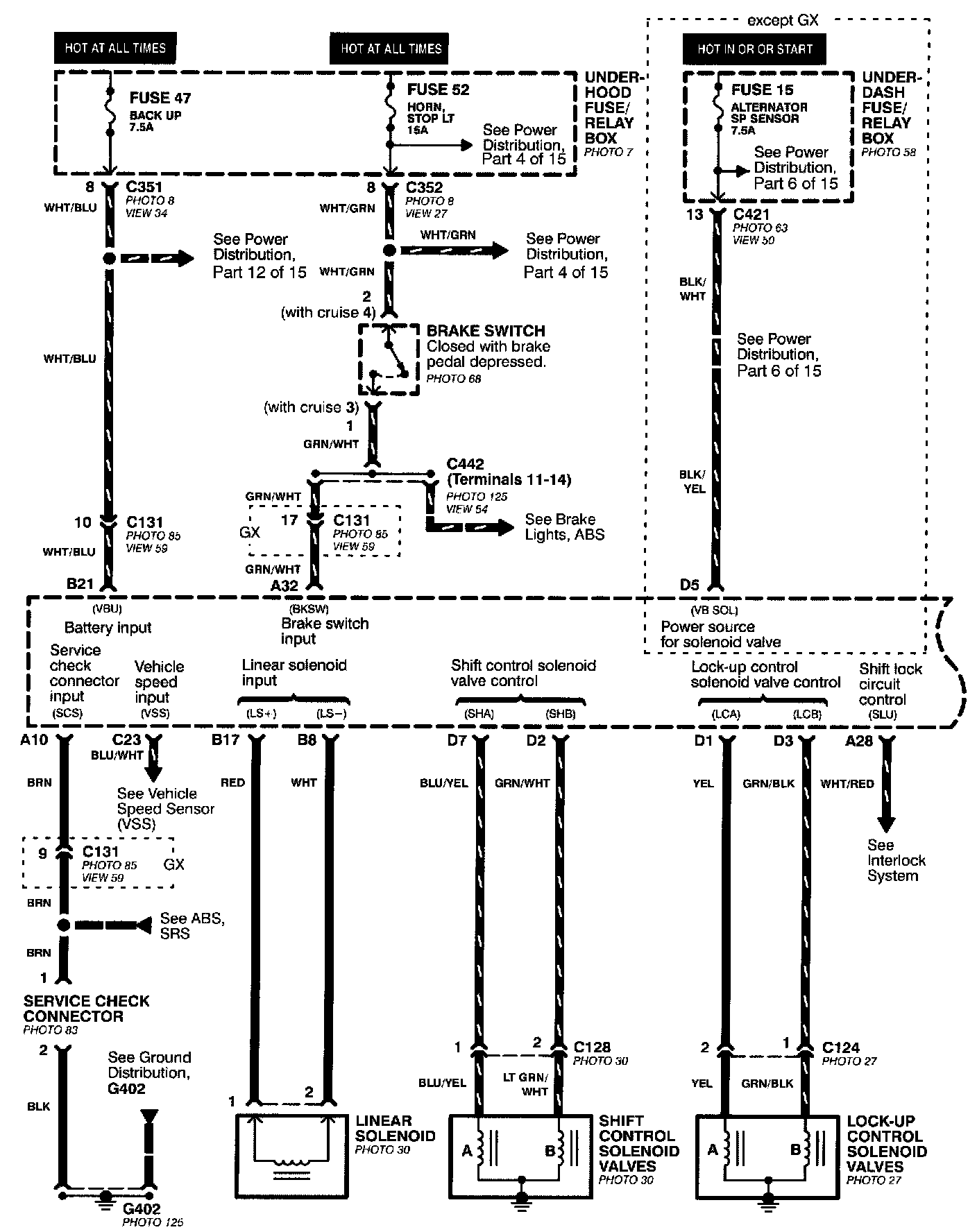

Part 1 of 2:




Part 2 of 2:




Part 1 of 2:




Part 2 of 2:
