Schematic Diagrams

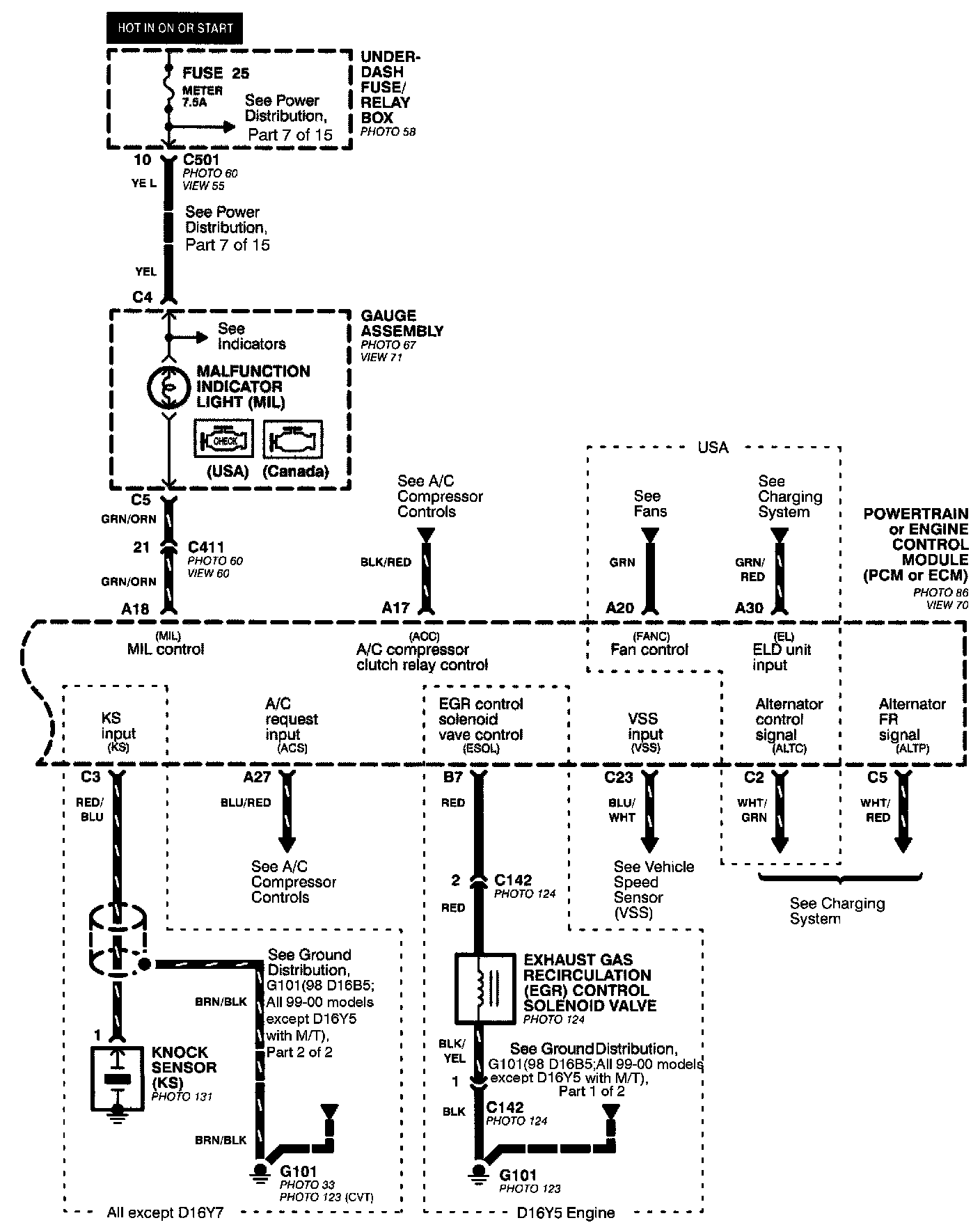

Part 1 (All 99-00 Models Except D16Y5 With M/T And D16B5):

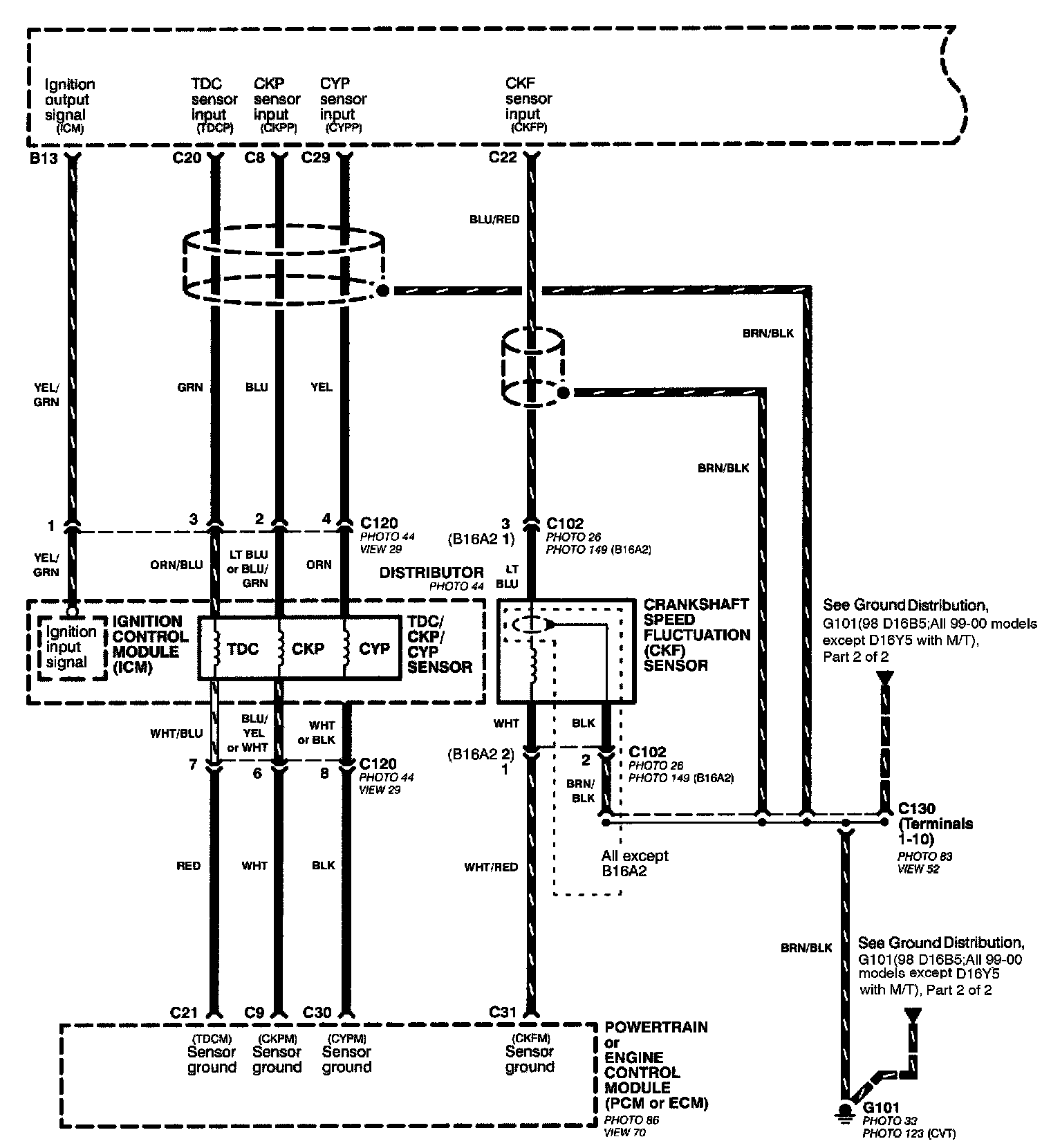

Part 2 (All 99-00 Models Except D16Y5 With M/T And D16B5):

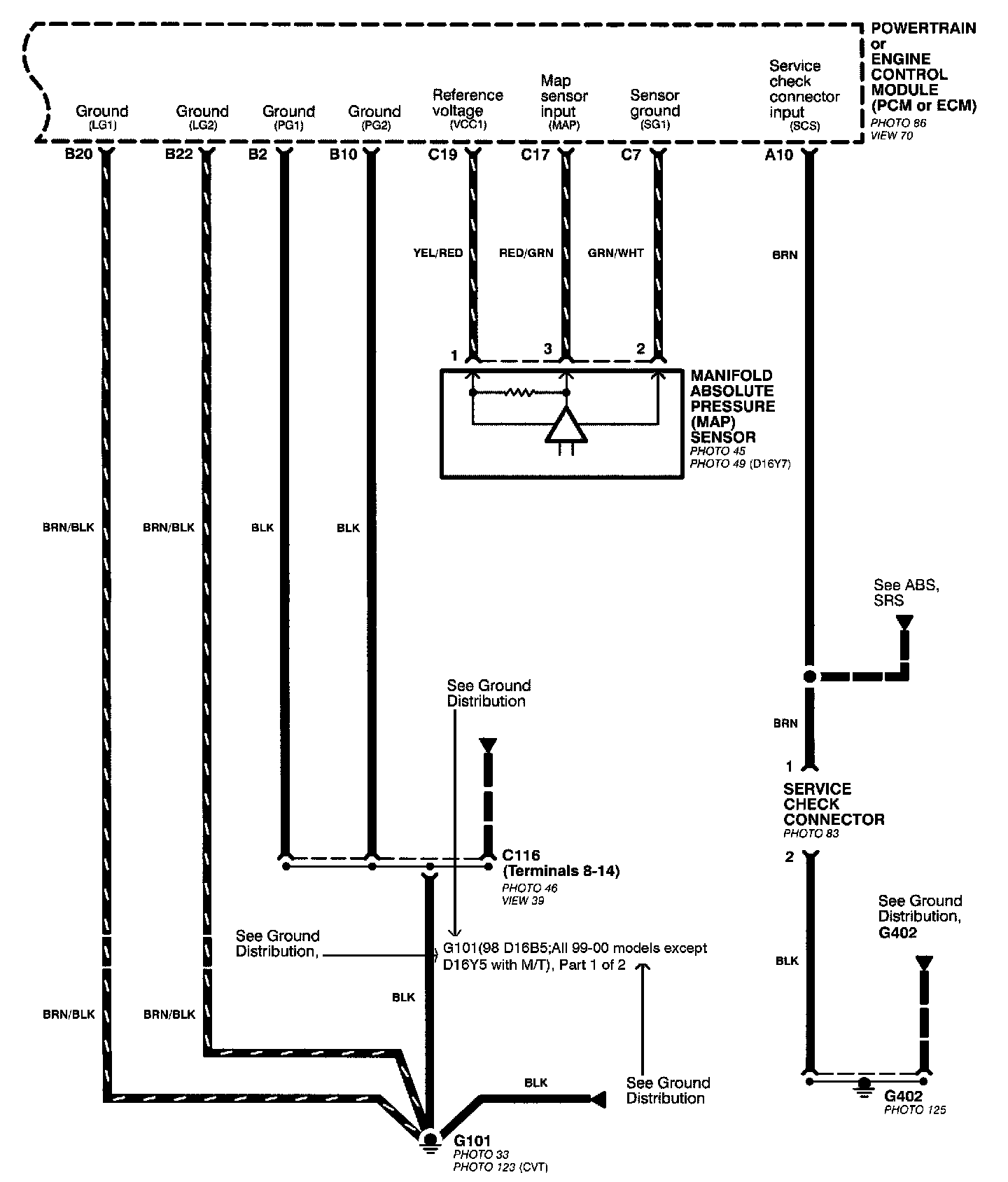

Part 3 (All 99-00 Models Except D16Y5 With M/T And D16B5):

Part 4 (All 99-00 Models Except D16Y5 With M/T And D16B5):

Part 5 (All 99-00 Models Except D16Y5 With M/T And D16B5):

Part 6 (All 99-00 Models Except D16Y5 With M/T And D16B5):

PGM-FI D16Y7:

PGM-FI D16Y7:
