Ground Distribution

G101, Part 1 of 2:



G101, Part 2 of 2:

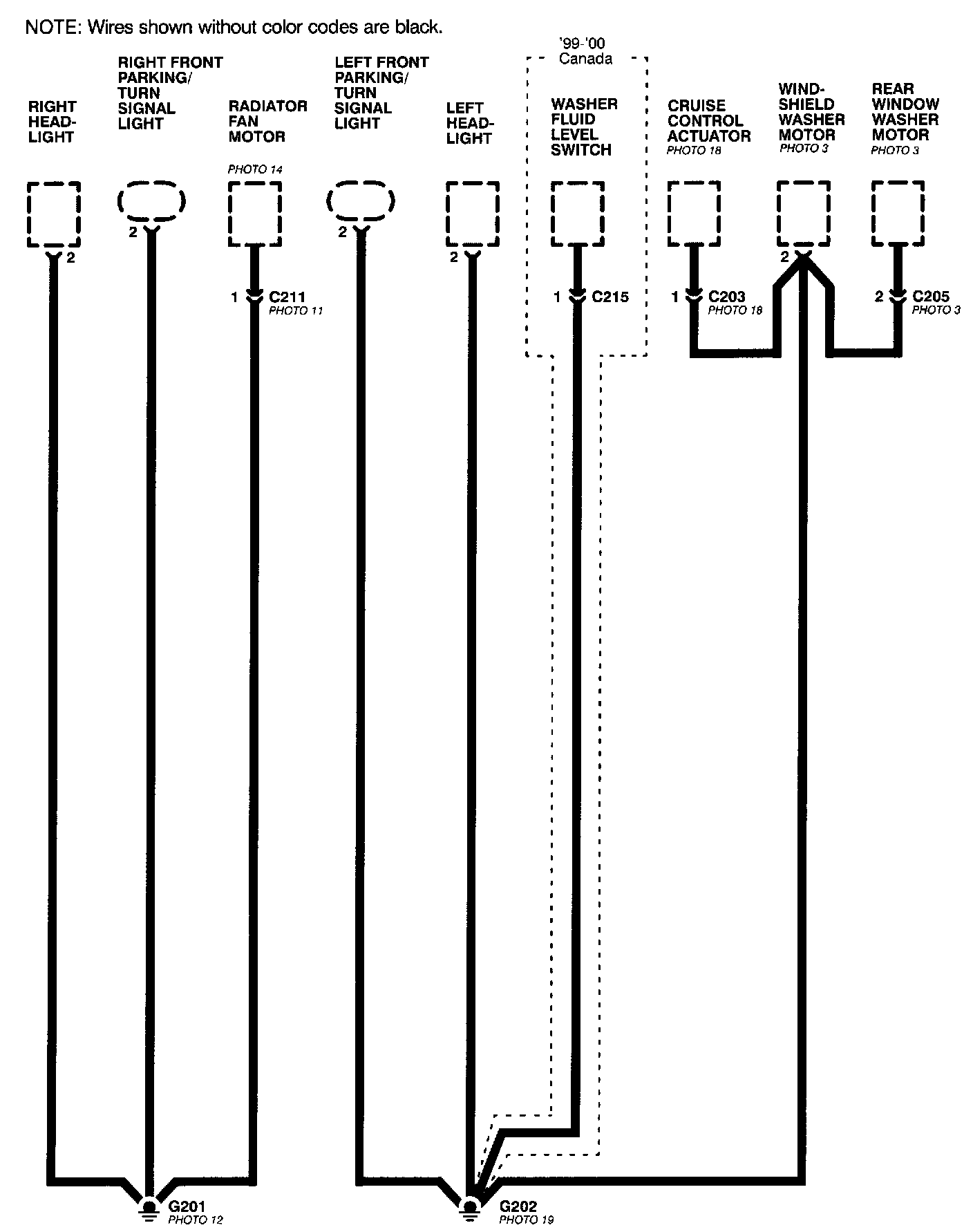

G201 And G202:

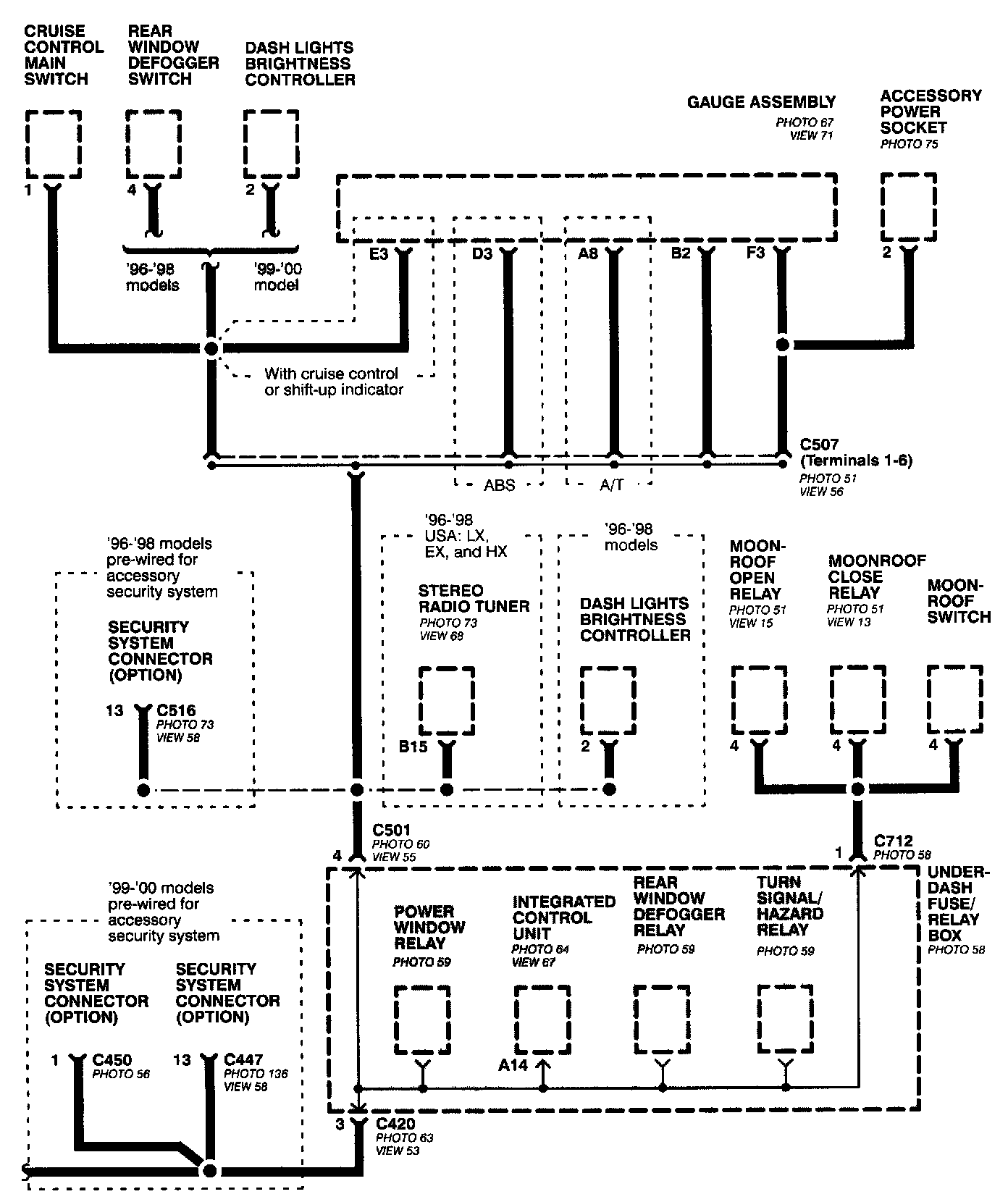

G402:

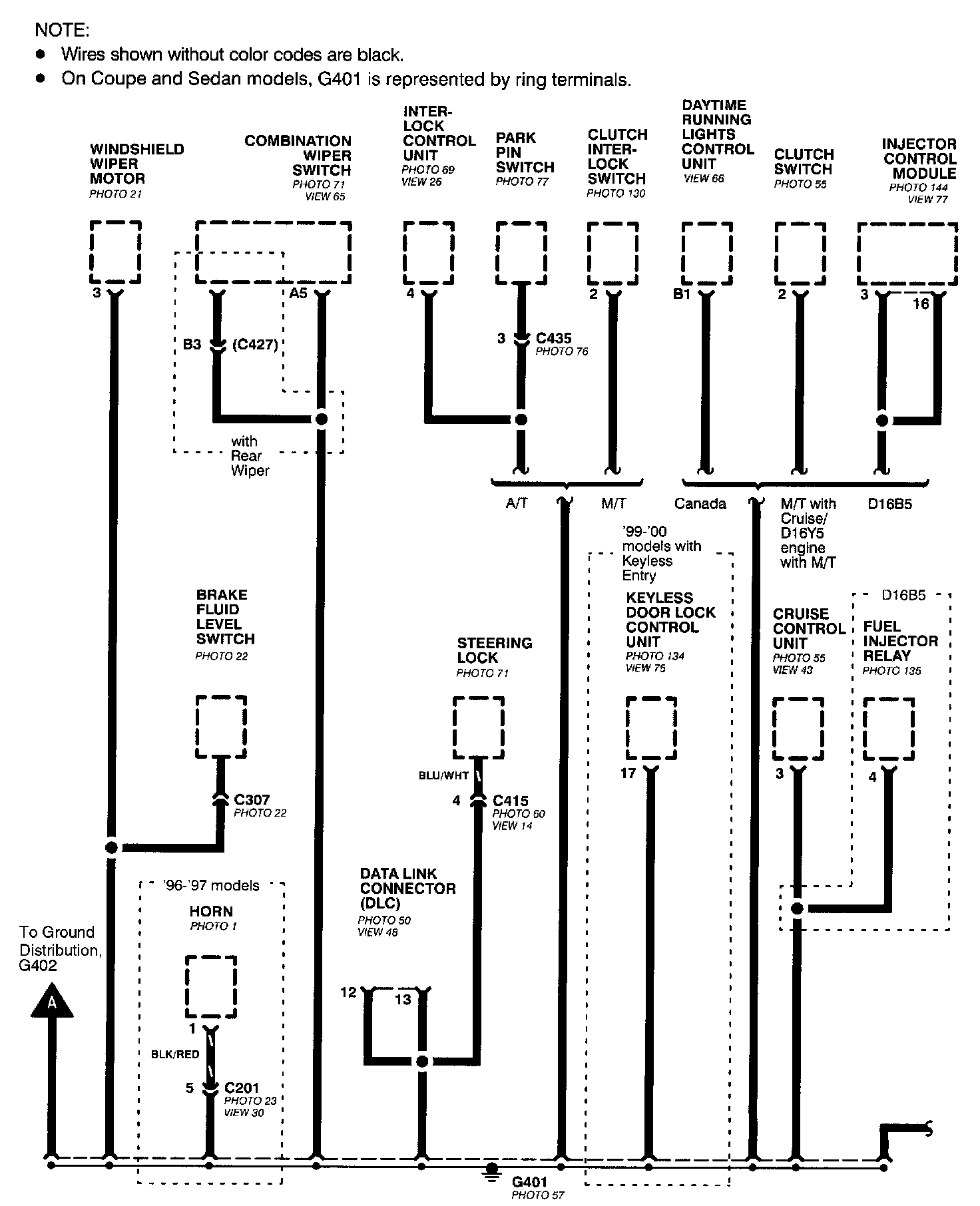

G401, Part 1 of 2:



G401, Part 2 of 2:



G551:

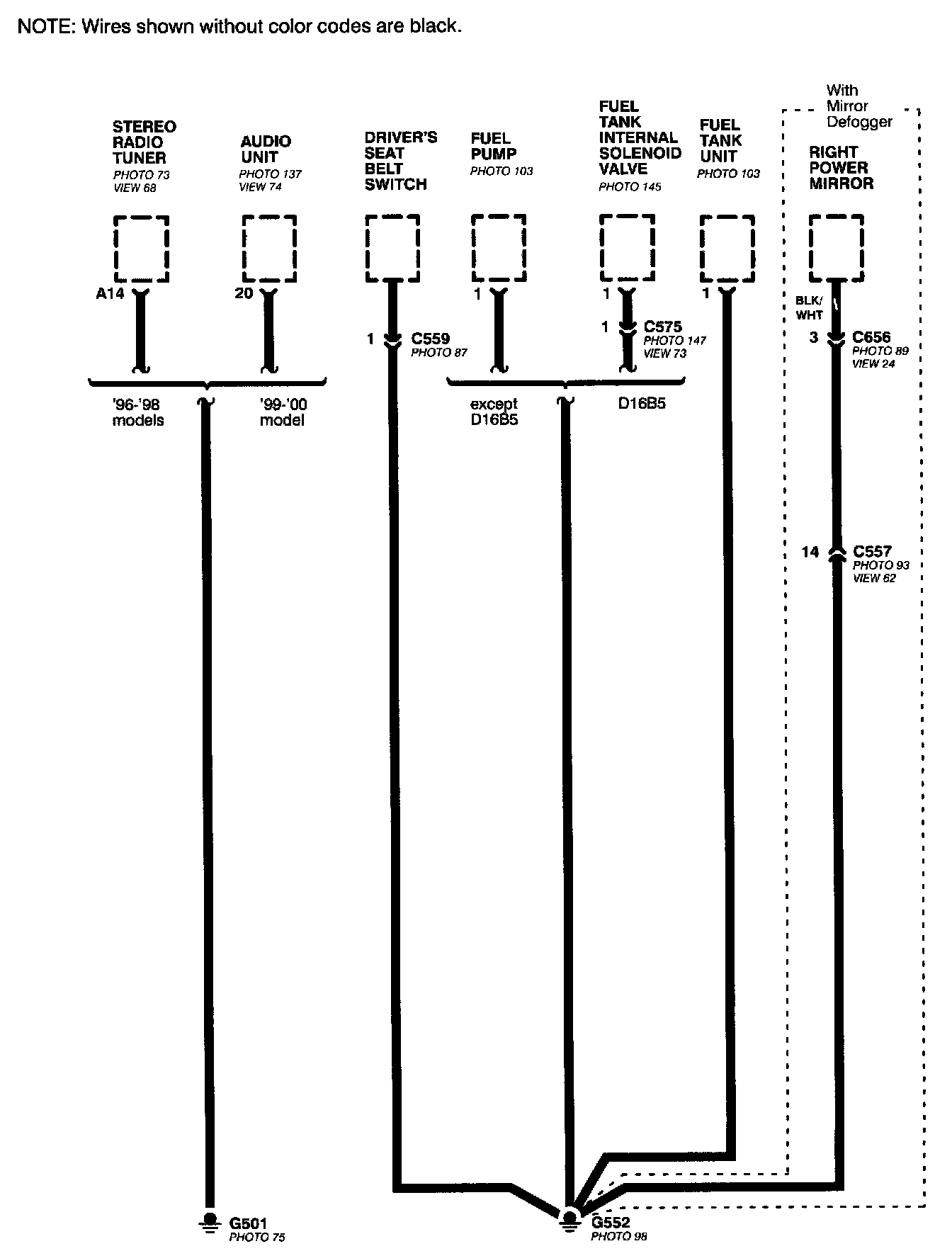

G501 And G502:

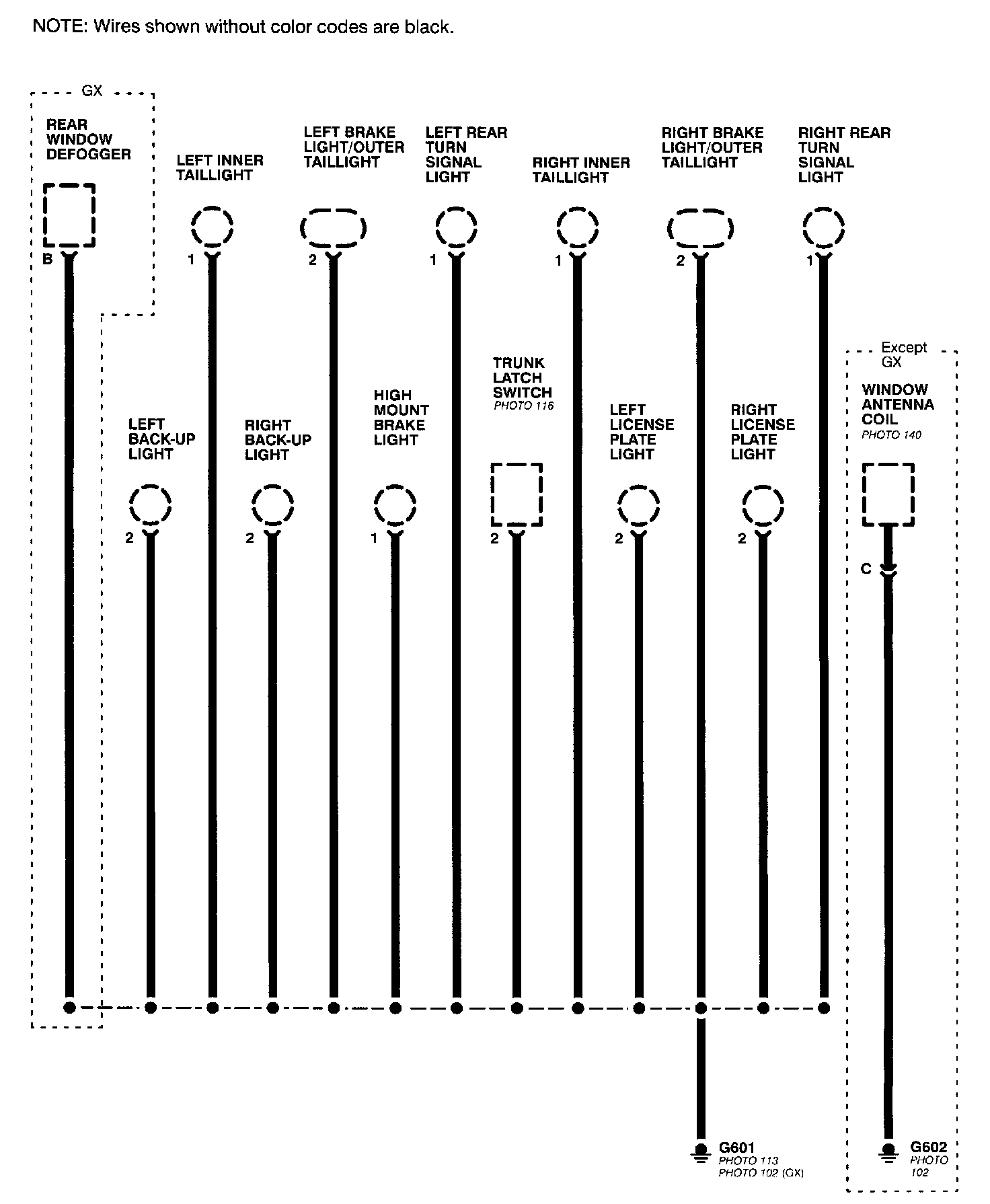

G601 And G602:



G1, G2, G3 And G403:

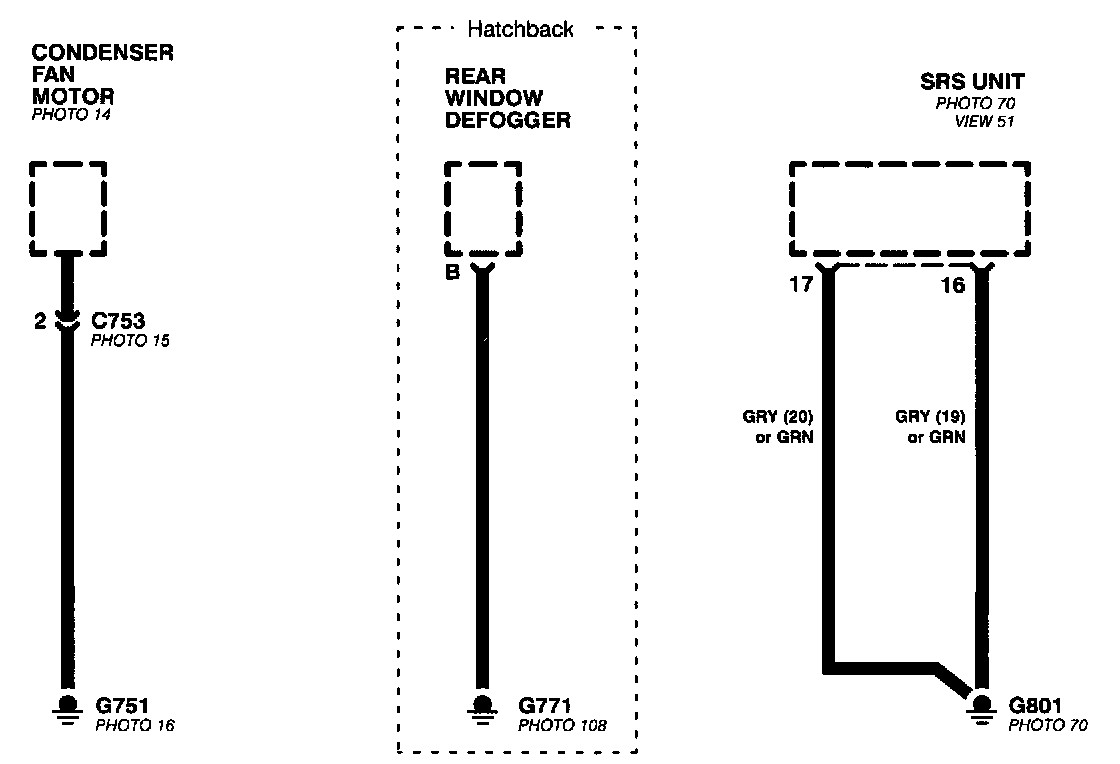

G751, G771 And G801:
