Main Wire Harness (Right Side of Dash and Floor Branch)
Harness Location View:

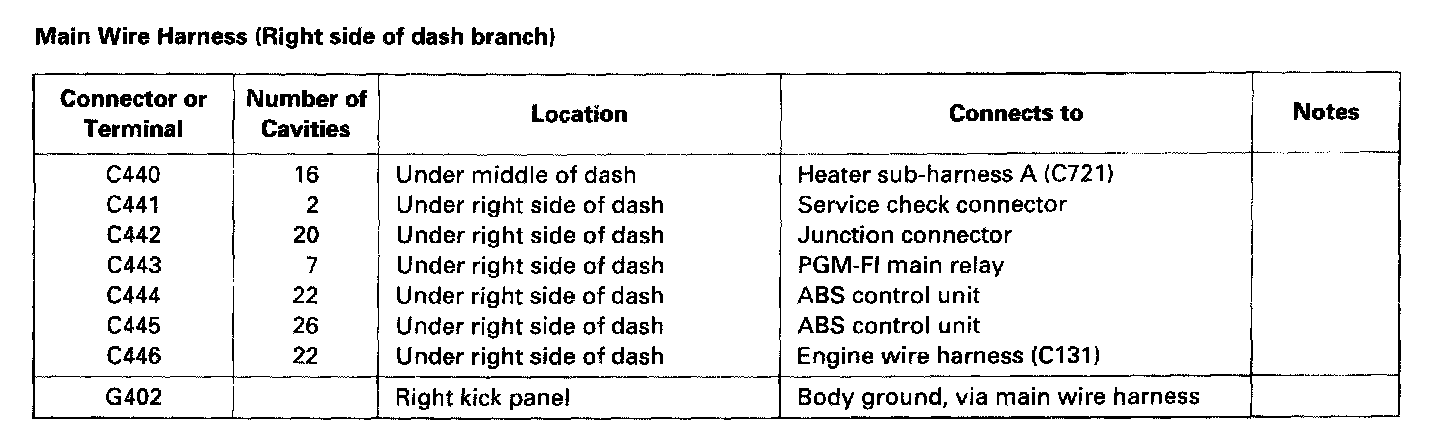

Main Wire Harness (Right Side Of Dash Branch):
