Wiring Diagrams

Without Keyless Entry/Power Door Locks /Part 1 of 2:



Without Keyless Entry/Power Door Locks /Part 2 of 2:

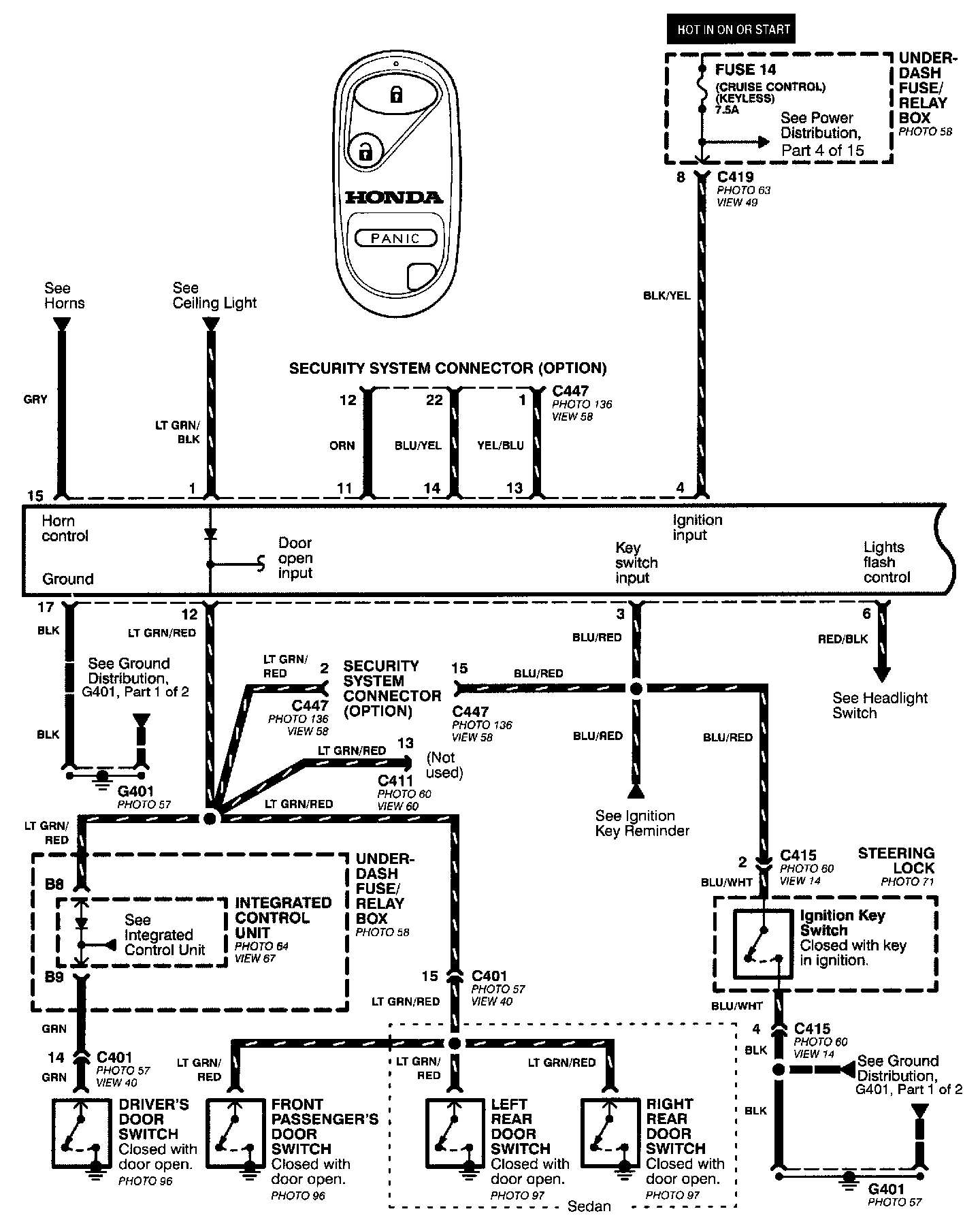

With Keyless Entry/Power Door Locks /Part 1 Of 2:

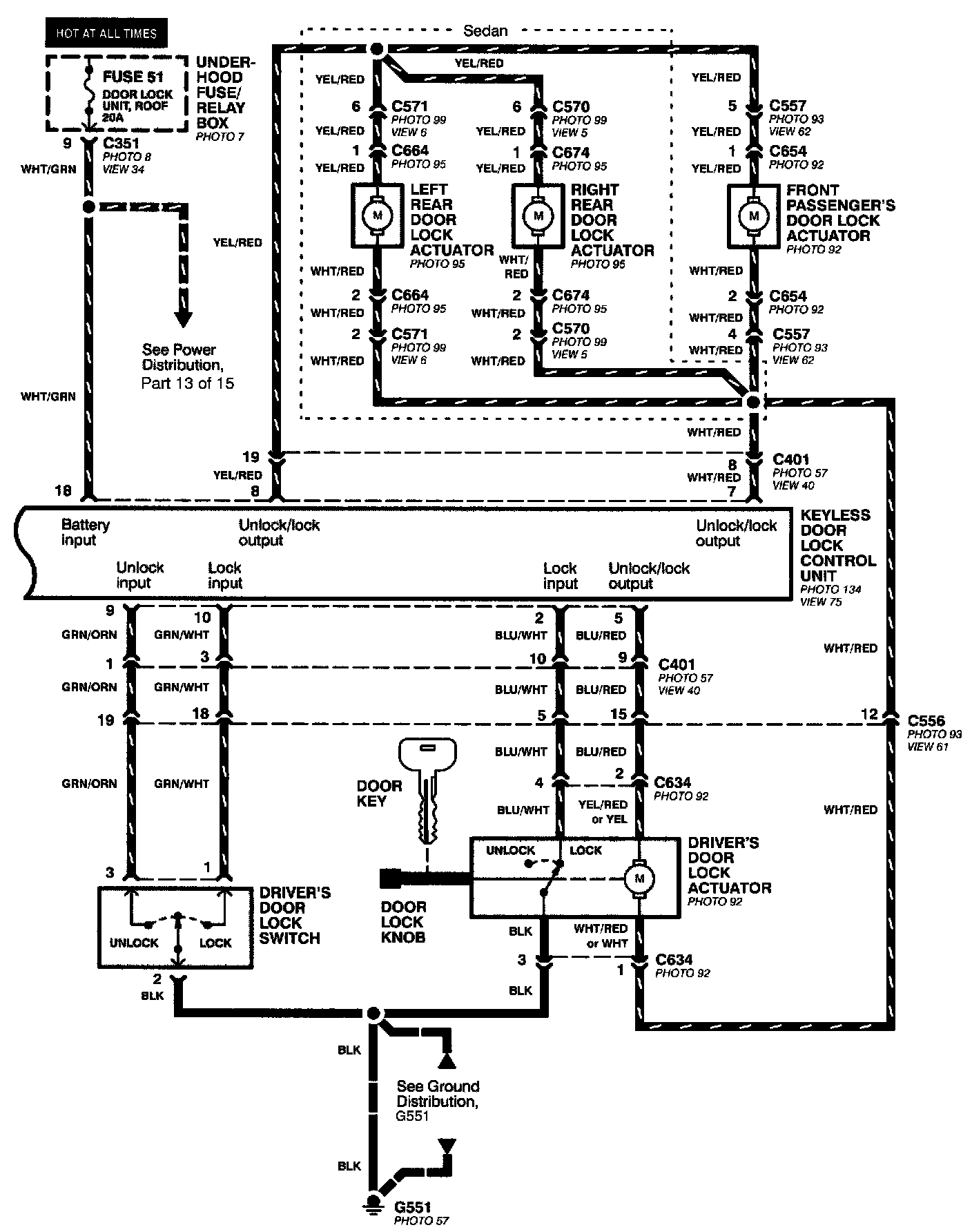

With Keyless Entry/Power Door Locks /Part 2 Of 2:
