Home >> Honda >> 1999 >> Civic GX Sedan L4-1.6L CNG >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Electronic Climate Control

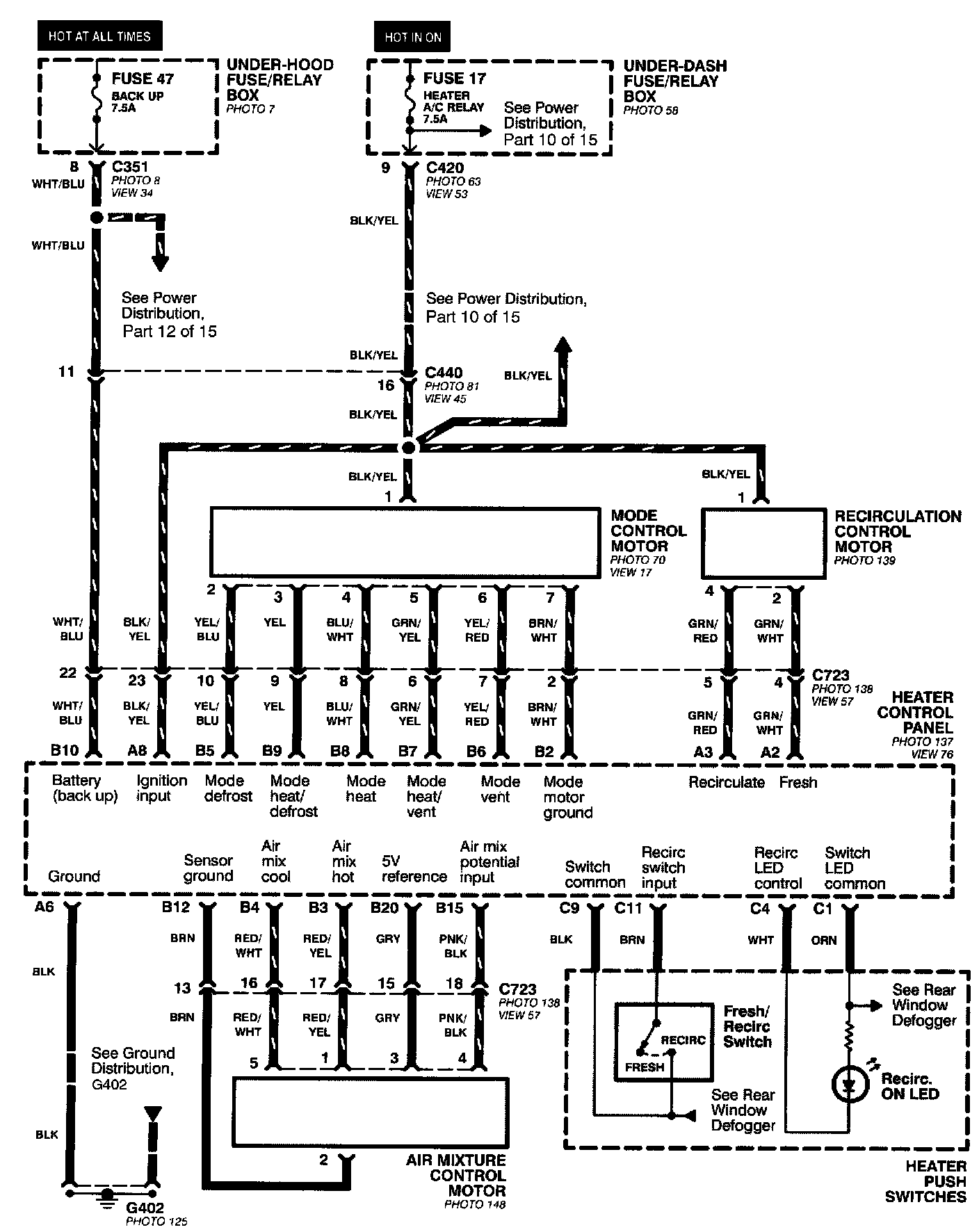

Electronic Climate Control

Power Distribution:
