Timing Belt: Testing and Inspection

Inspection

1. Remove the cylinder head cover.
2. Remove the upper cover.

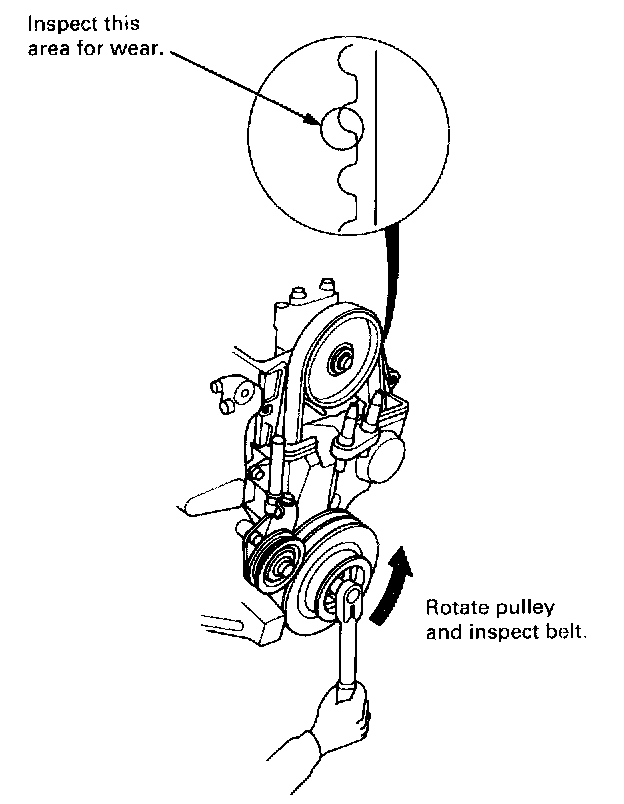

3. Inspect the timing belt for cracks and oil or coolant soaking.

NOTE:
- Replace the belt if oil or coolant soaked.
- Remove any oil or solvent that gets on the belt.

4. After inspecting, retorque the crankshaft pulley bolt.
