Schematic Diagrams

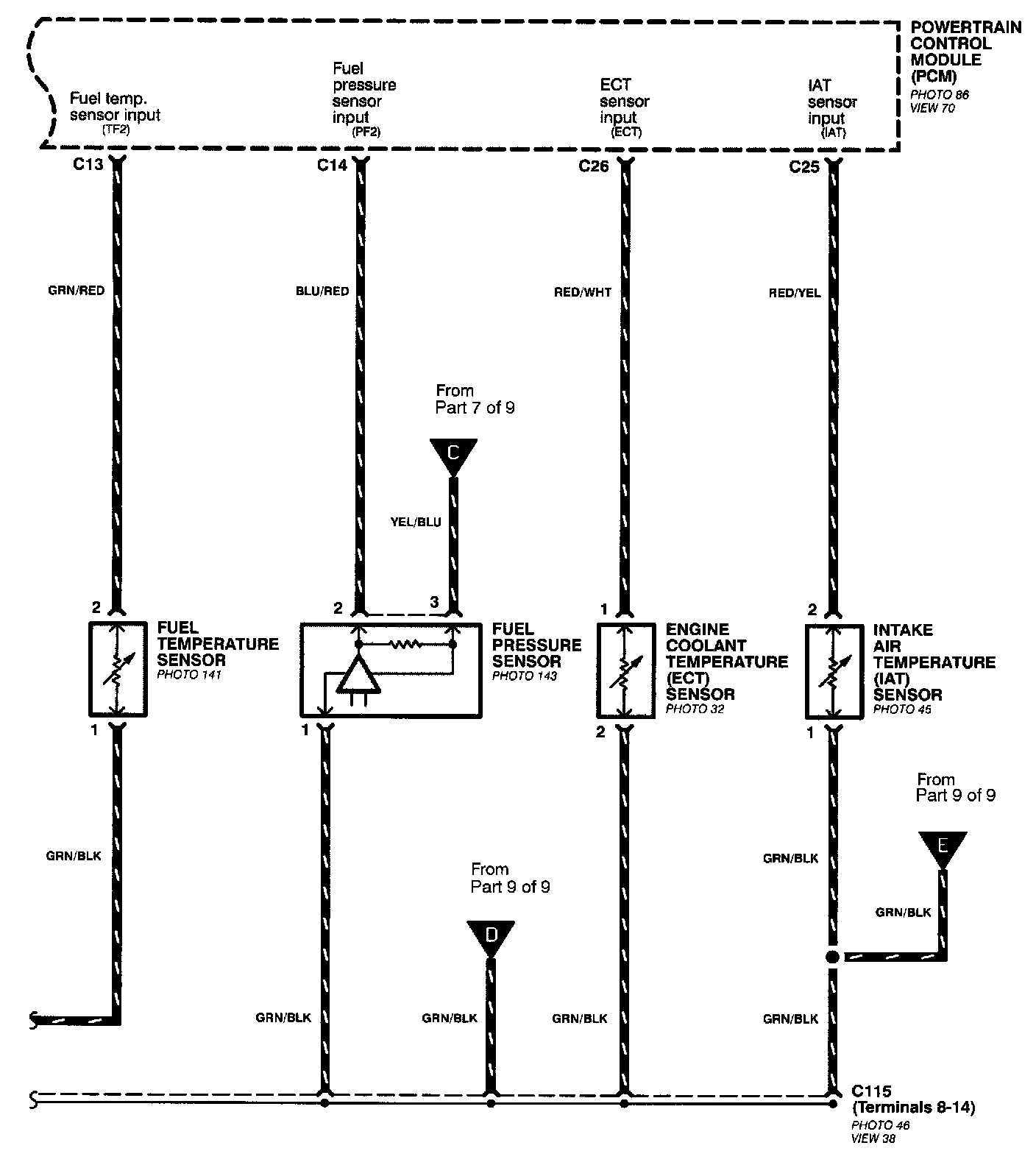

Part 1 of 9:

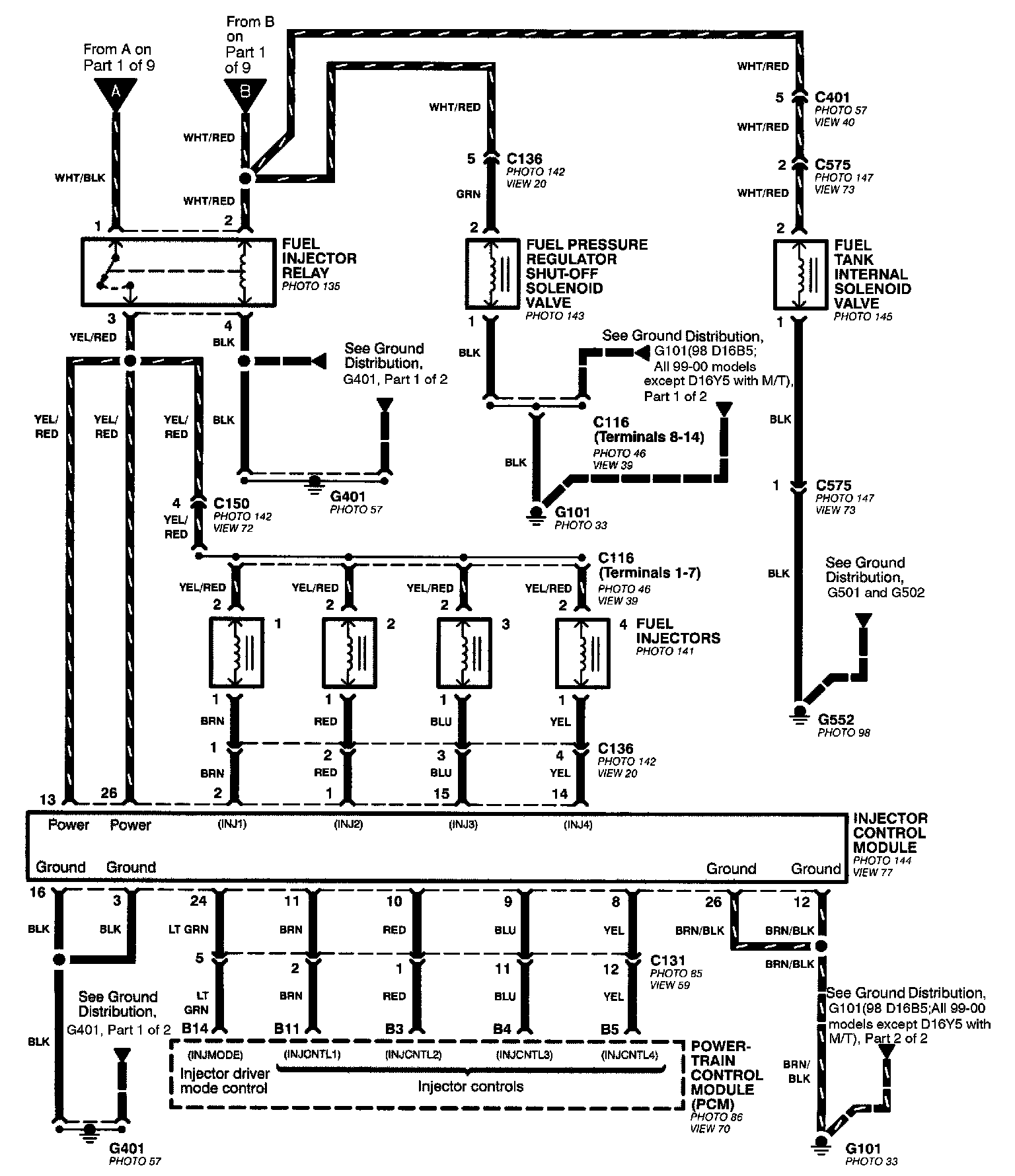

Part 2 of 9:

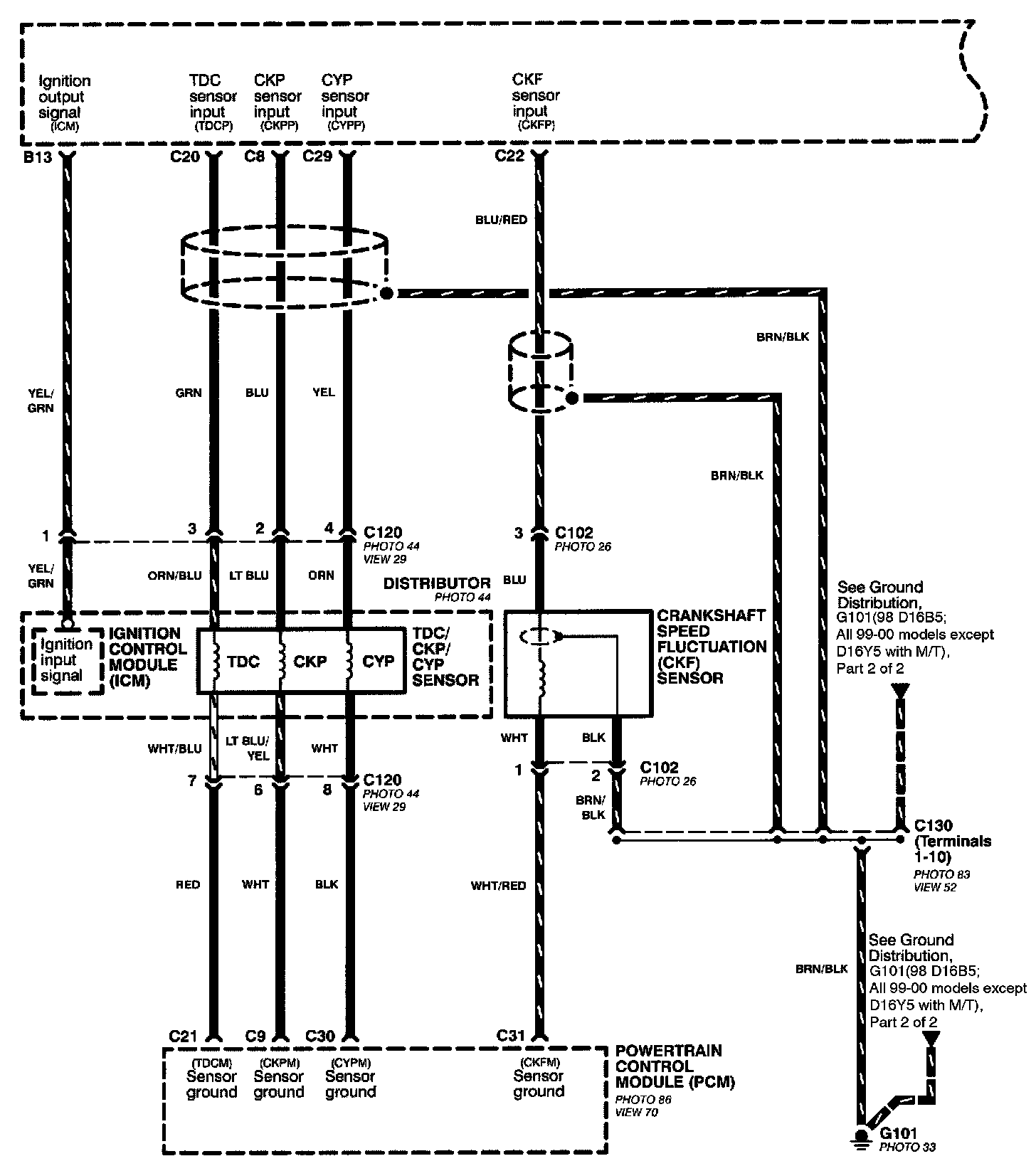

Part 3 of 9:

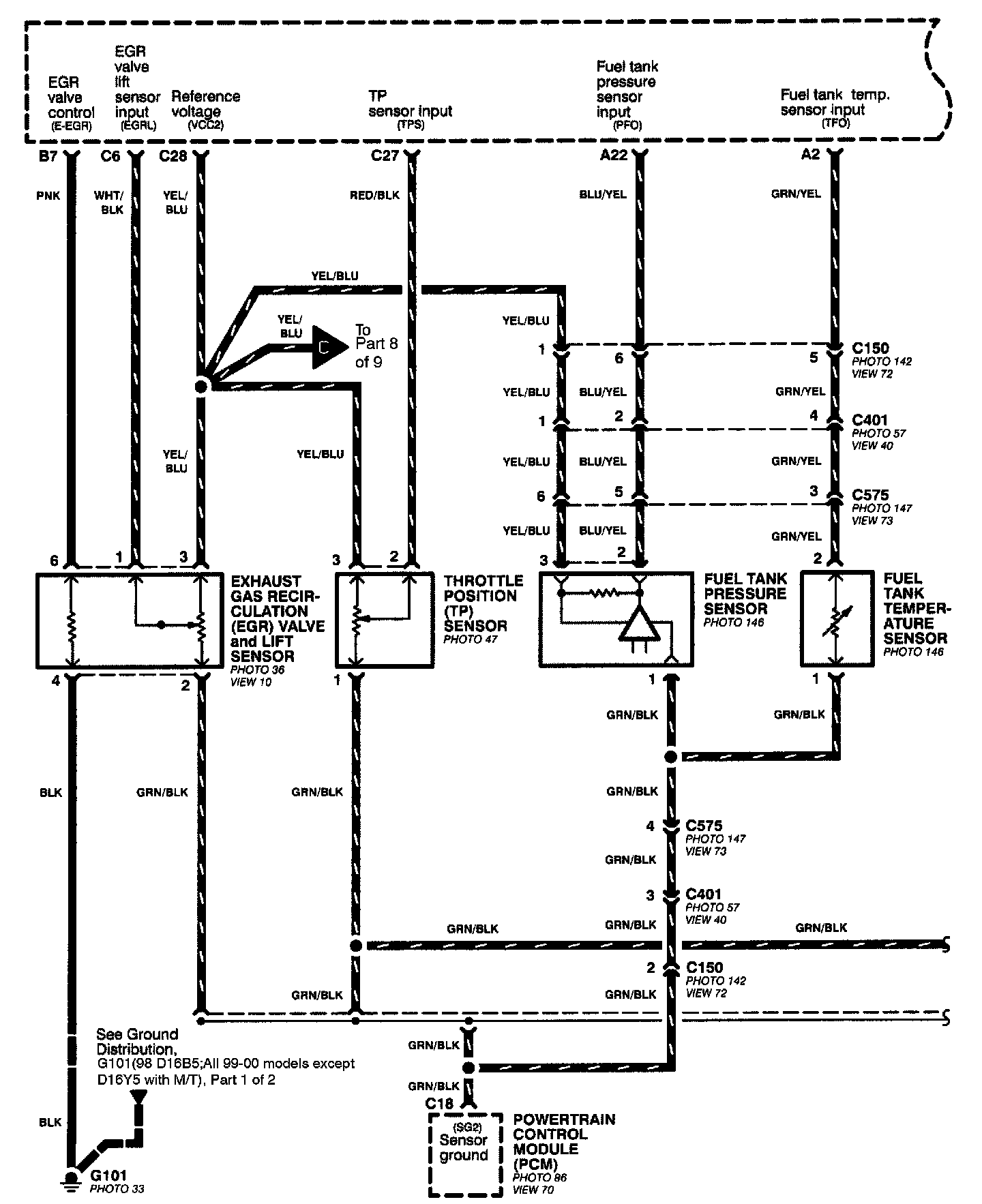

Part 4 of 9:

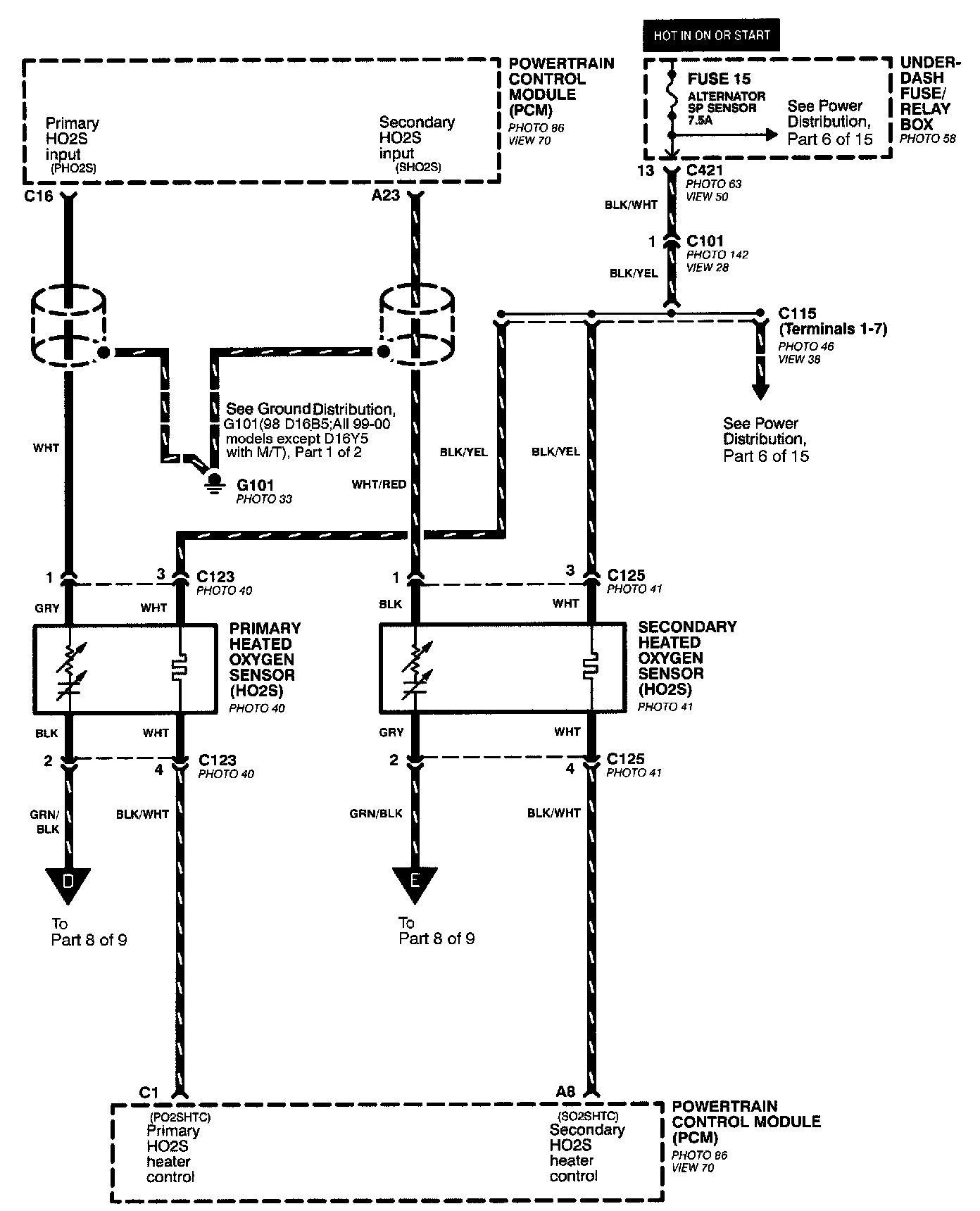

Part 5 of 9:

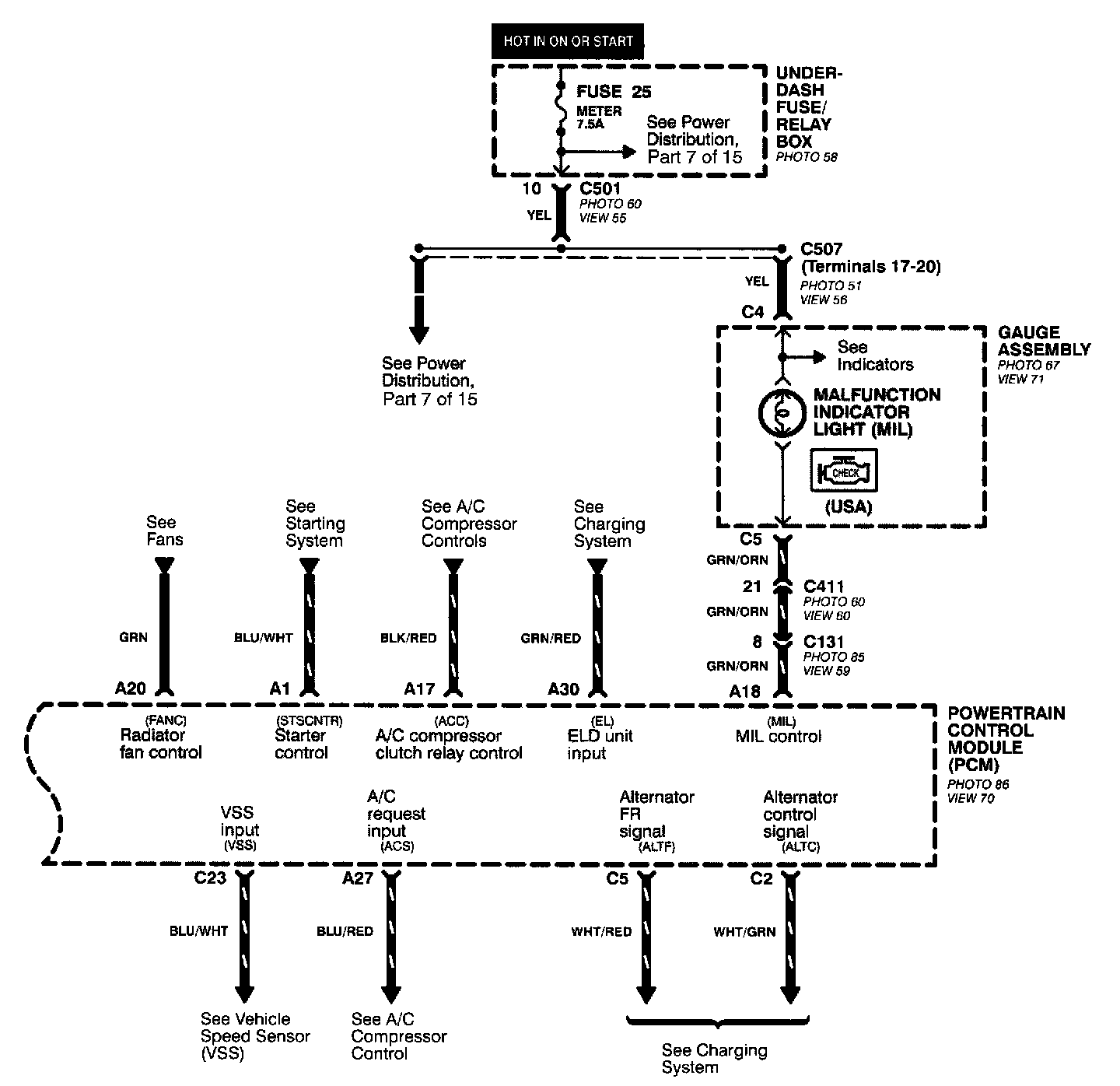

Part 6 of 9:




Part 7 of 9:




Part 8 of 9:




Part 9 of 9:
