Wiring Diagram

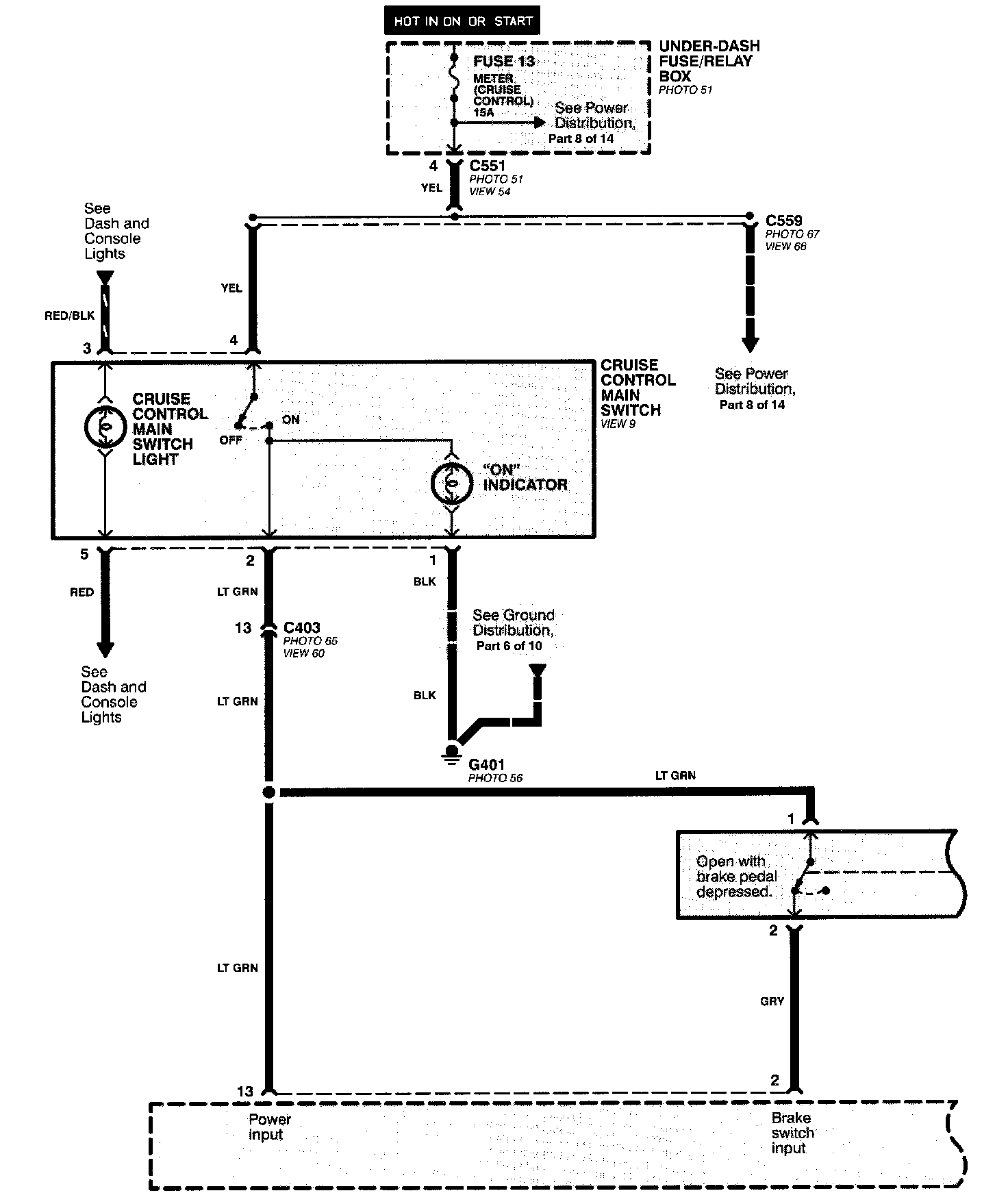

Cruise Control (Part 1 Of 3):

Cruise Control (Part 1 Of 3)
Cruise Control Main Switch
- Cruise Control Main Switch Light
Under-Dash Fuse/Relay Box

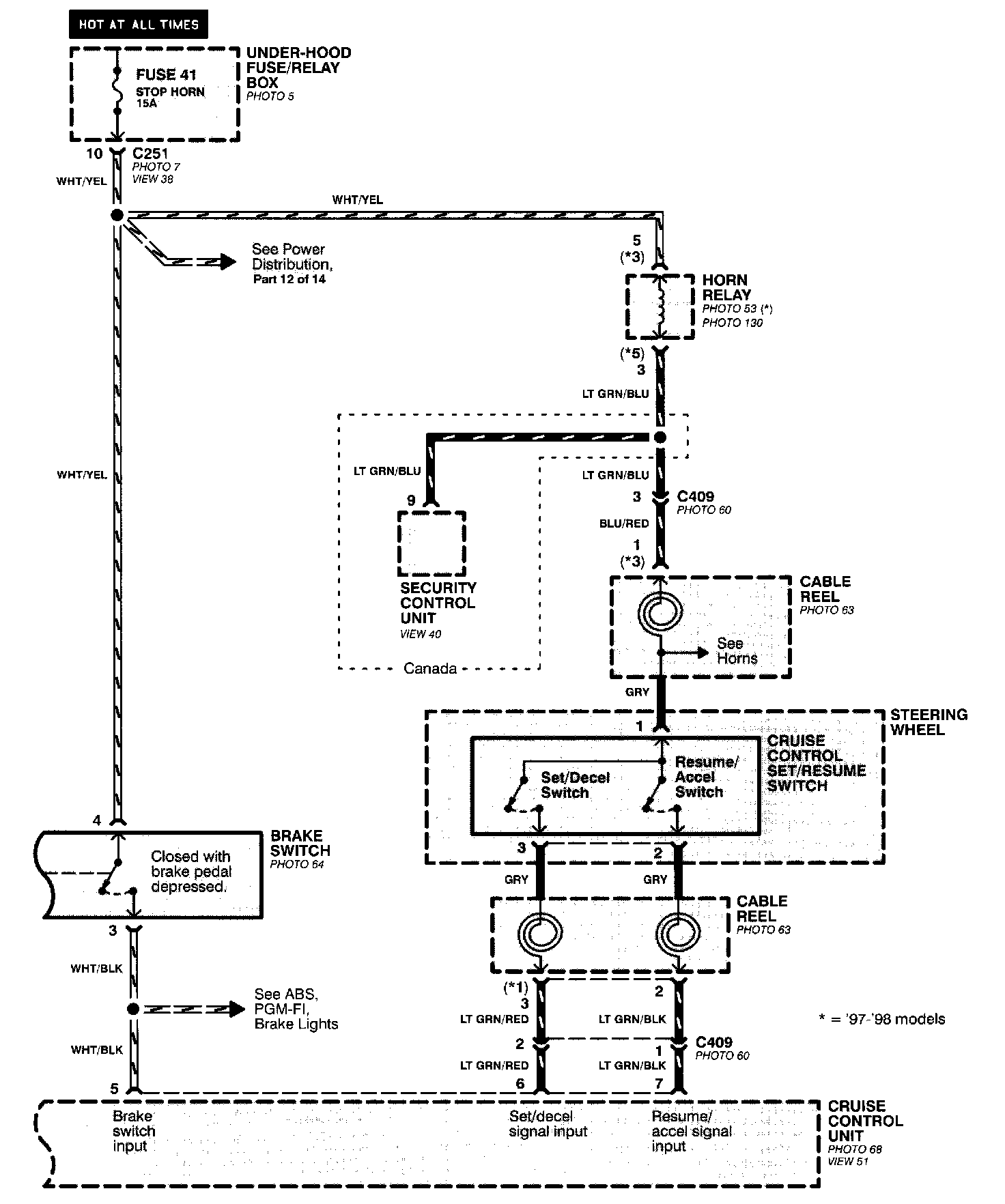

Cruise Control (Part 2 Of 3):

Cruise Control (Part 2 Of 3)
Brake Switch
Cable Reel
Cruise Control Unit
Horn Relay
Security Control Unit
Steering Wheel
- Cruise Control Set/Resume Switch
Under-Hood Fuse/Relay Box

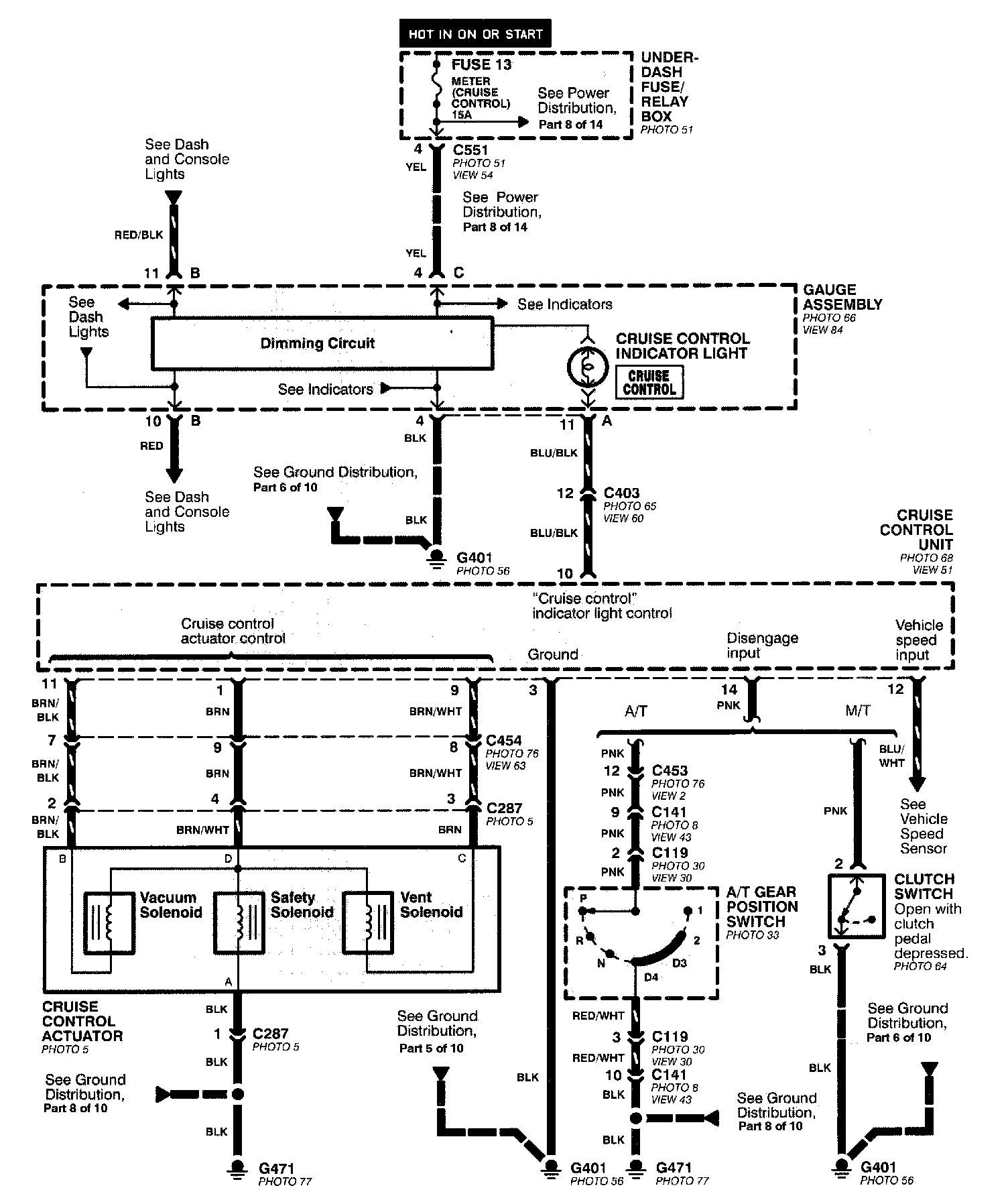

Cruise Control (Part 3 Of 3):

Cruise Control (Part 3 Of 3)
A/T Gear Position Switch
Clutch Switch
Cruise Control Actuator
Cruise Control Indicator Light
Cruise Control Unit
Gauge Assembly
Under-Dash Fuse/Relay Box
