Prelude Type-SH L4-2156cc 2.2L DOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relays
>>
Under-Hood Fuse/Relay Box
Under-Hood Fuse/Relay Box
Front View

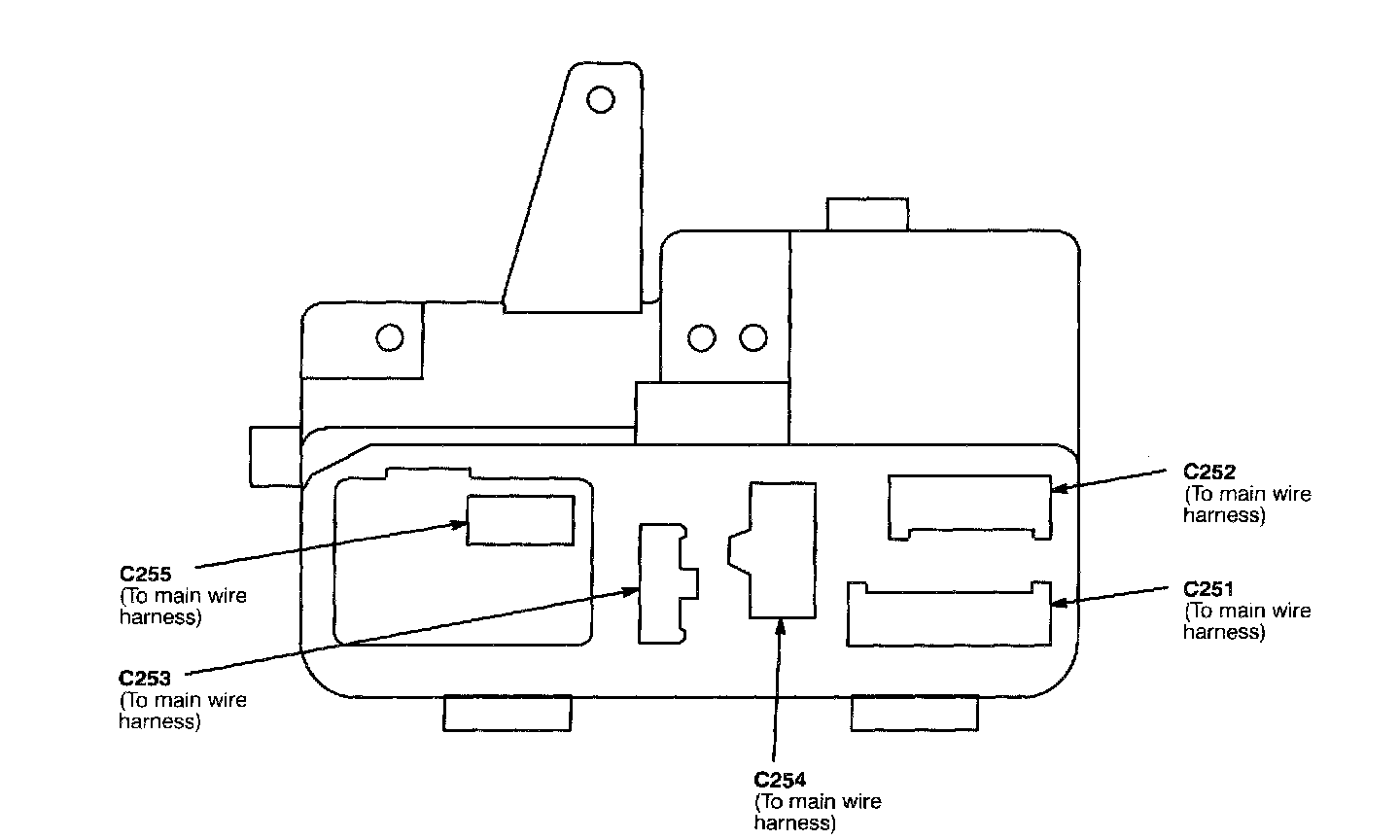

Rear View

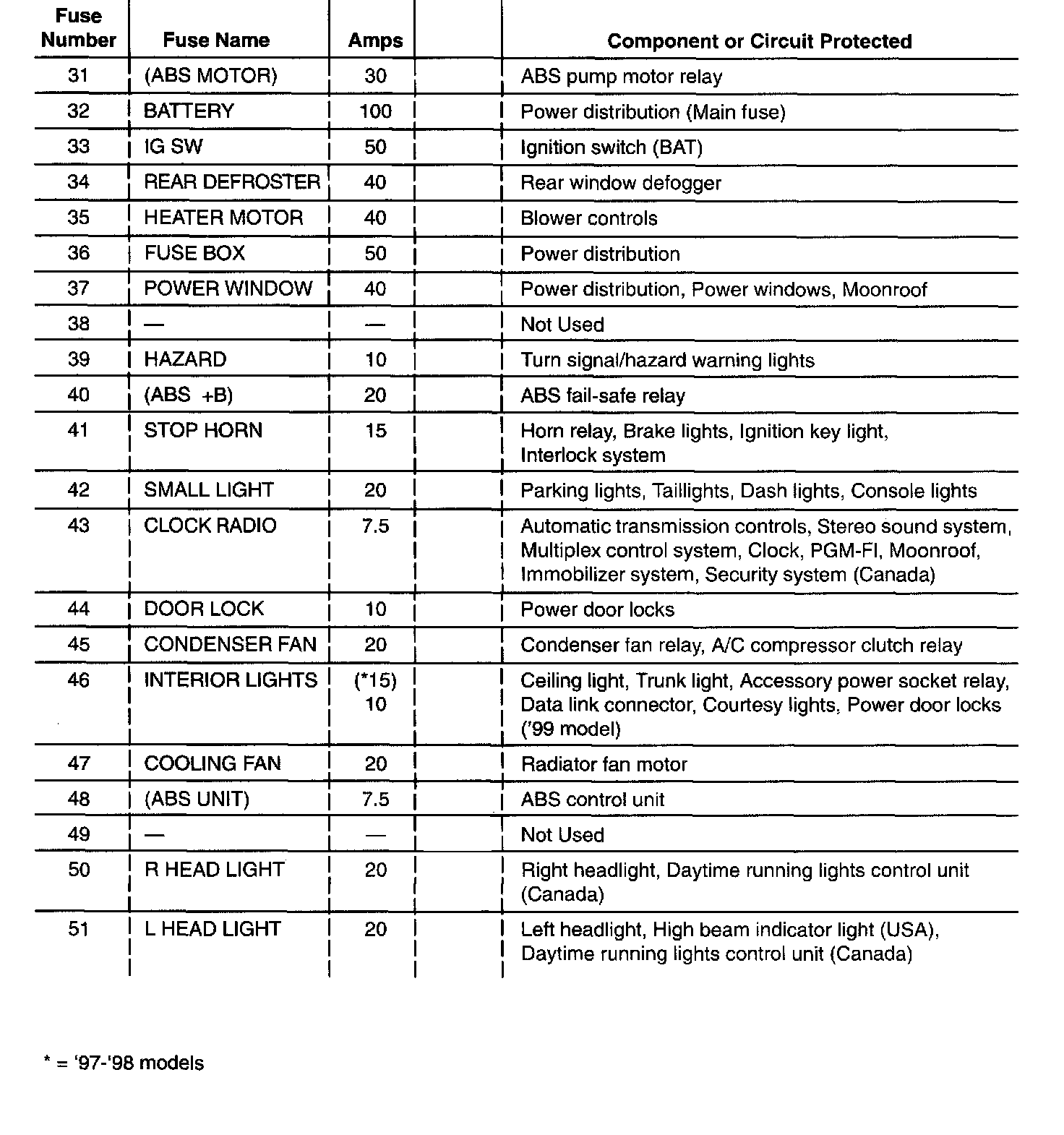

Fuse-to-Component Index
