Anti-Lock Brake System (Part 1 Of 4):

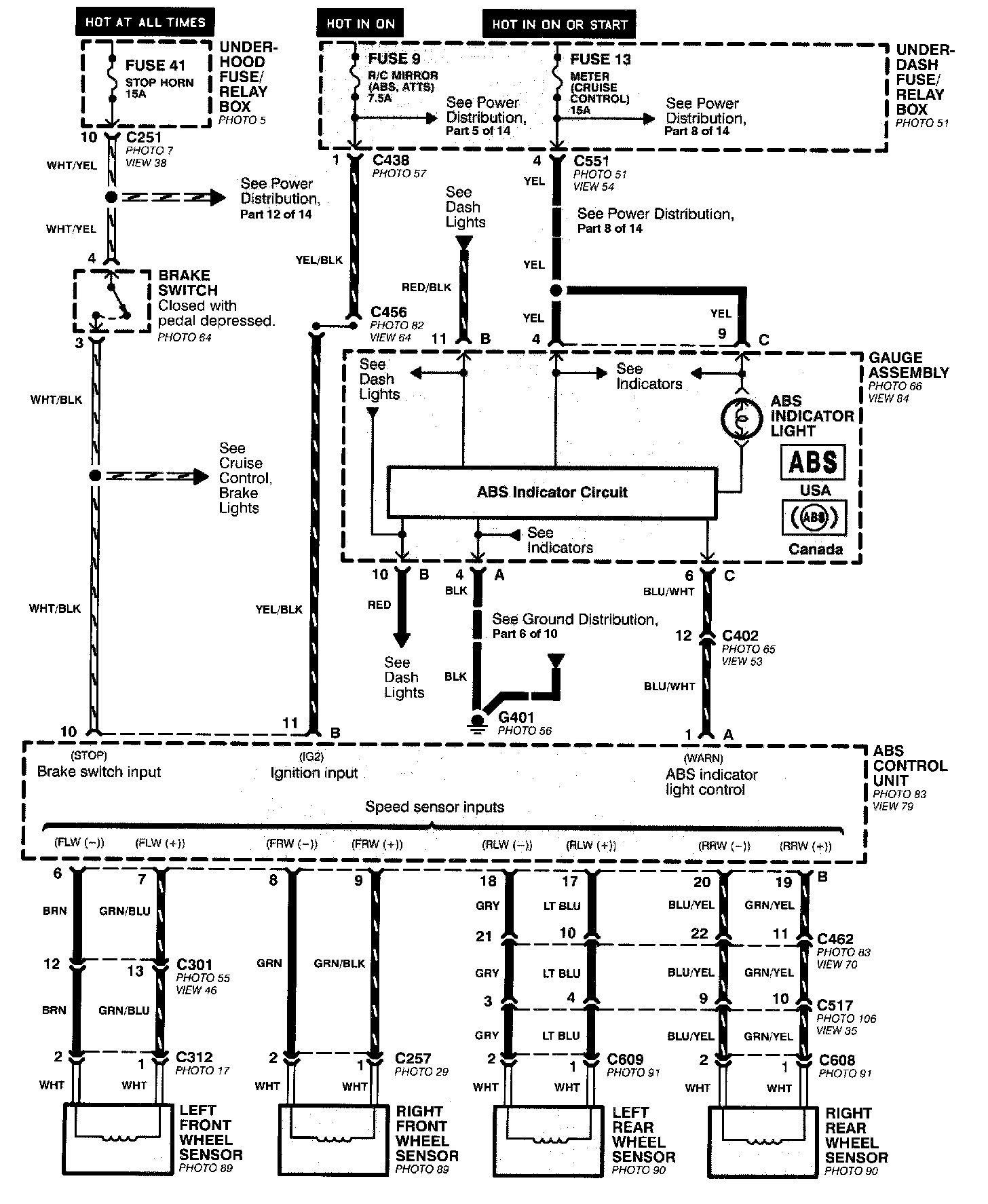

Anti-Lock Brake System (ABS) (Part 1 Of 4)
ABS Control Unit
Brake Switch
Gauge Assembly
- ABS Indicator Light
Left Front Wheel Sensor
Left Rear Wheel Sensor
Right Front Wheel Sensor
Right Rear Wheel Sensor
Under-Dash Fuse/Relay Box
Under-Hood Fuse/Relay Box

Anti-Lock Brake System (Part 2 Of 4):

Anti-Lock Brake System (ABS) (Part 2 Of 4)
ABS Control Unit
ATTS Control Unit
Brake Fluid Level Switch
Daytime Running Lights Control Unit
Engine Control Module (ECM)
Parking Brake Switch

Anti-Lock Brake System (Part 3 Of 4):

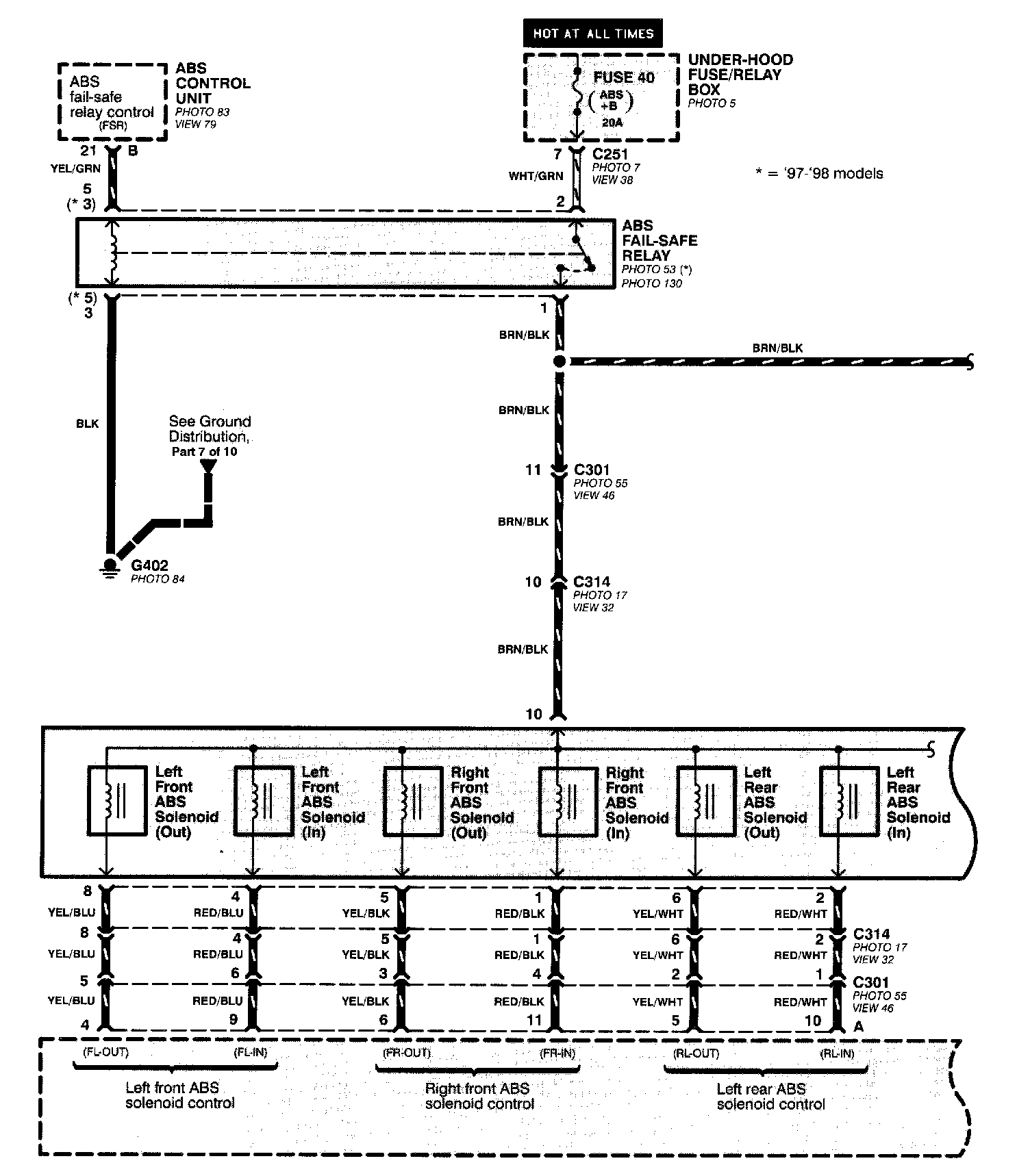

Anti-Lock Brake System (ABS) (Part 3 Of 4)
ABS Control Unit
ABS Fail-Safe Relay
Left Front ABS Solenoid (In & Out)
Left Rear ABS Solenoid (In & Out)
Right Front ABS Solenoid (In & Out)
Under-Hood Fuse/Relay Box

Anti-Lock Brake System (Part 4 Of 4):

Anti-Lock Brake System (ABS) (Part 4 Of 4)
ABS Control Unit
ABS Modulator Unit
ABS Pump Motor
Right Rear ABS Solenoid (In & Out)
Under-Hood Fuse/Relay Box
- ABS Pump Motor Relay
