Wiring Diagrams

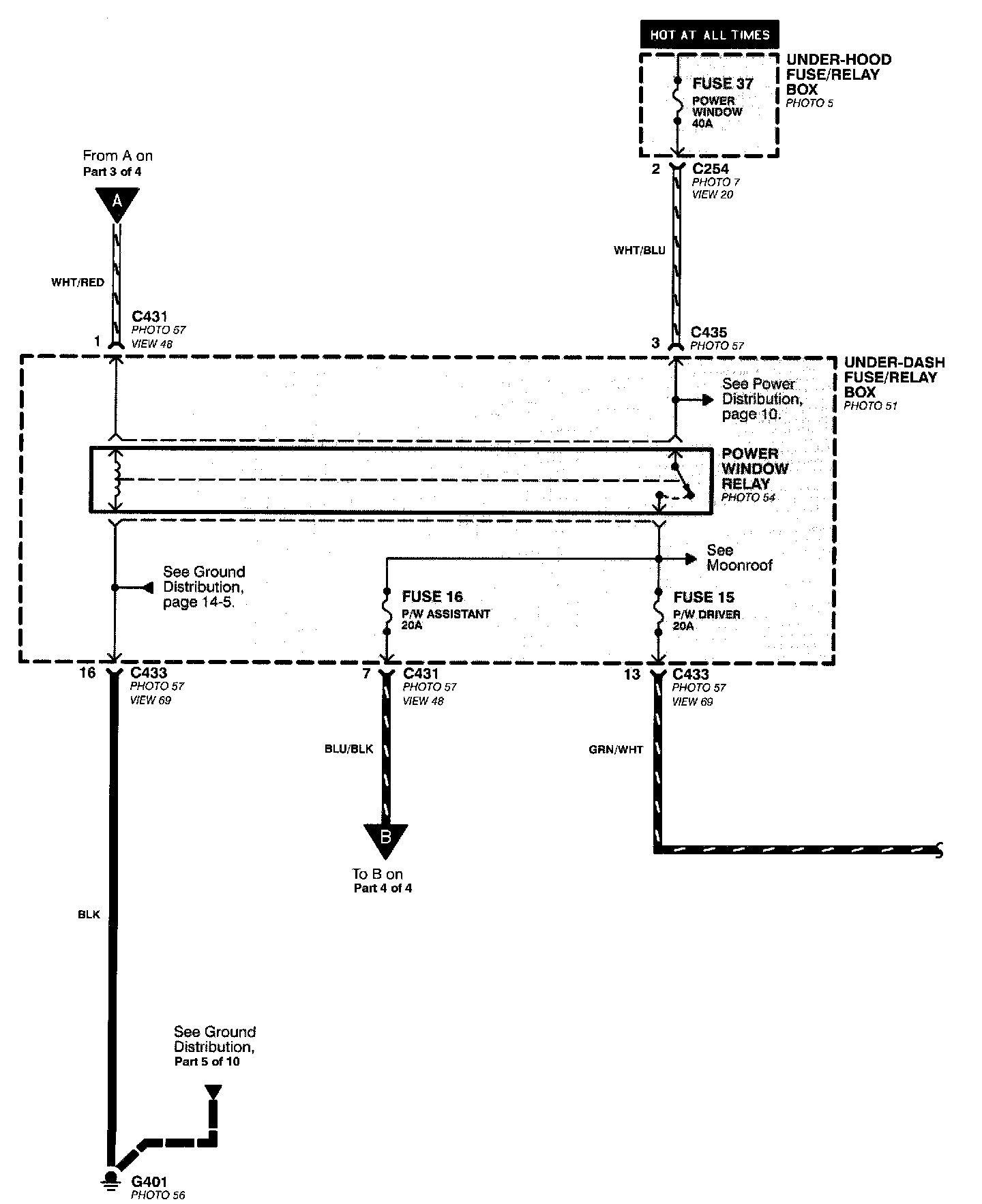

Power Windows (Part 1 Of 4):




Power Windows (Part 1 of 4)
Under-Dash Fuse/Relay Box
- Power Window Relay
Under-Hood Fuse/Relay Box

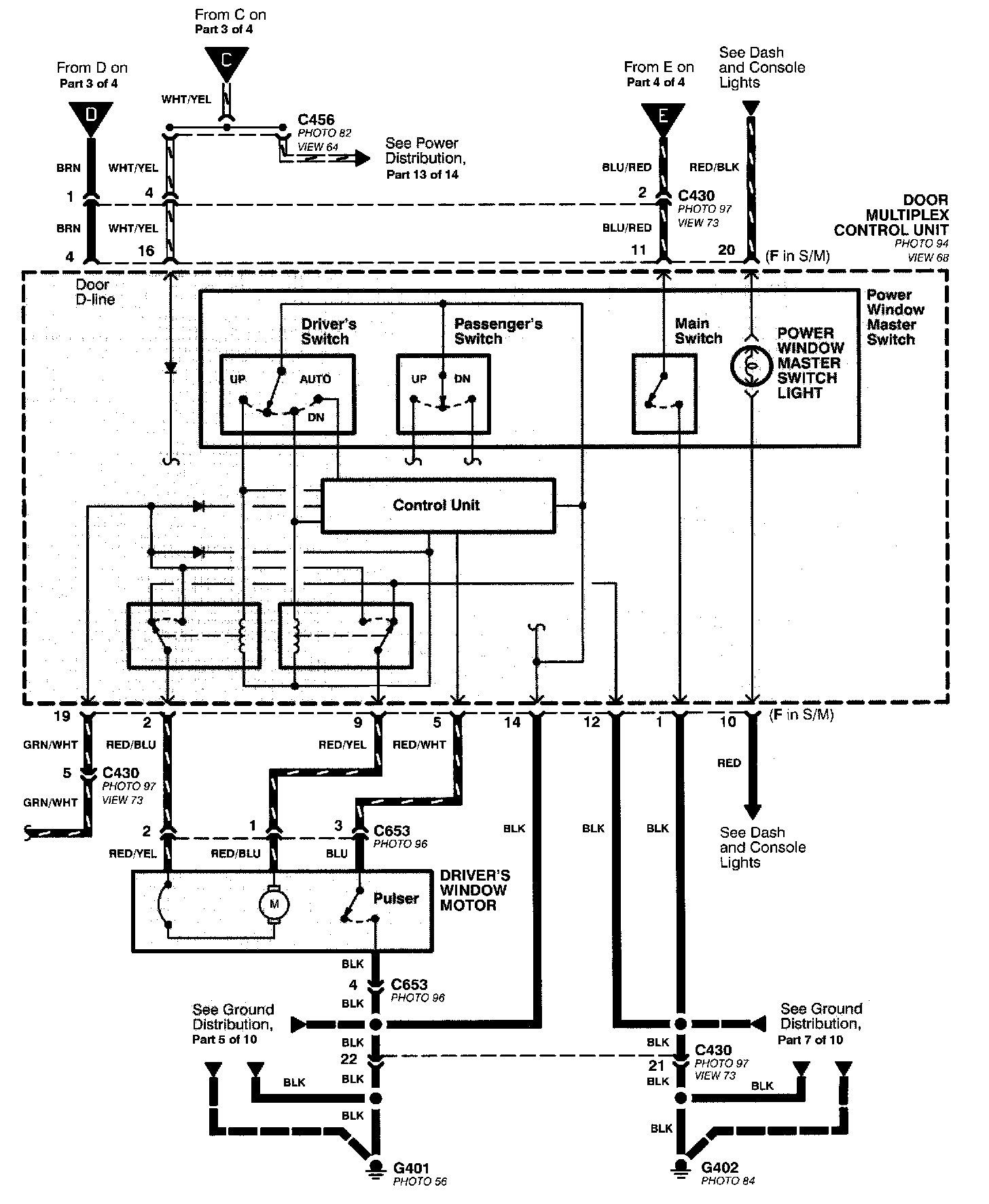

Power Windows (Part 2 Of 4):




Power Windows (Part 2 of 4)
Door Multiplex Control Unit
- Power Window Master Switch Light
- Driver's Switch
- Main Switch
- Passenger's Switch
Driver's Window motor

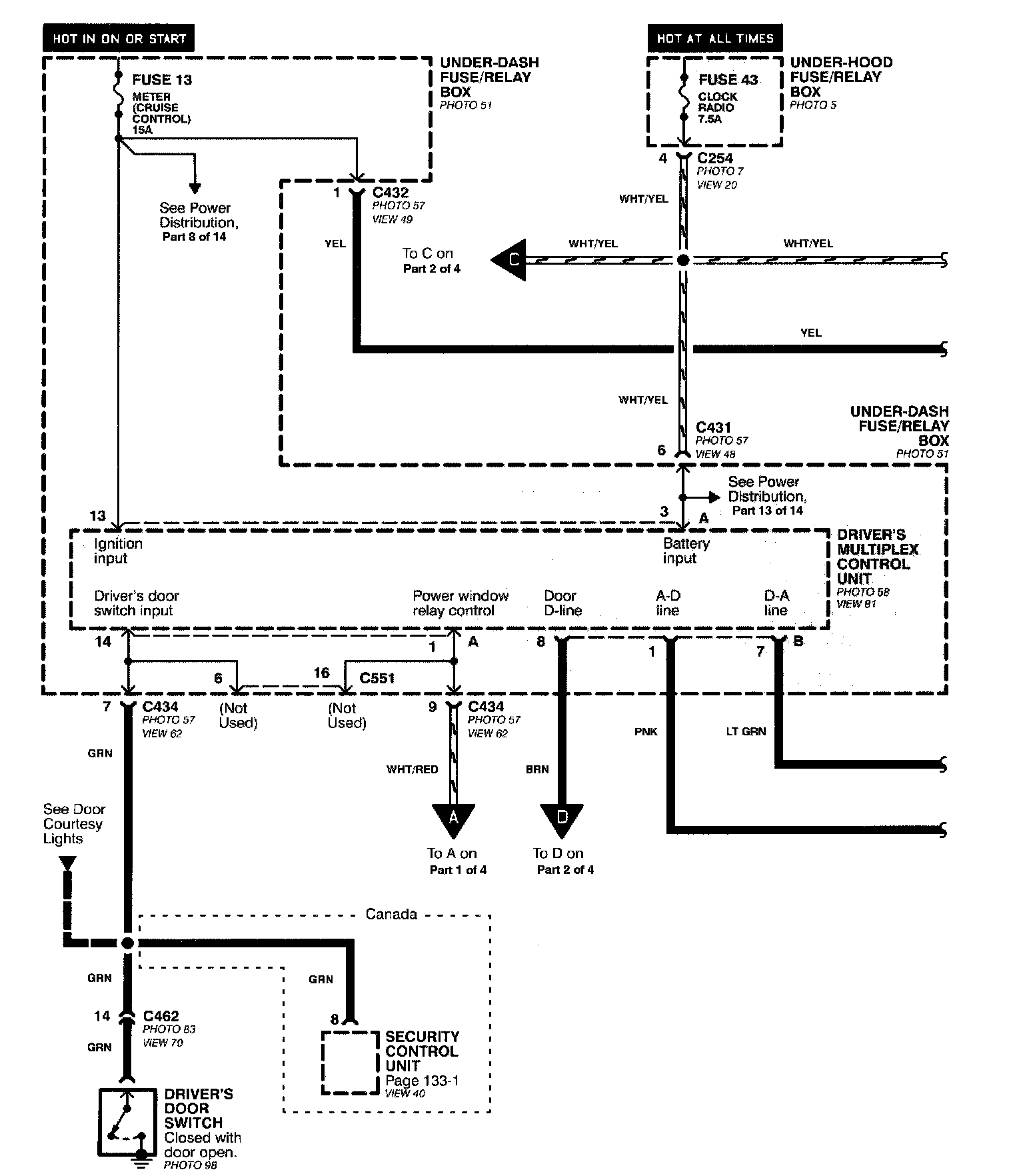

Power Windows (Part 3 Of 4):




Power Windows (Part 3 of 4)
Driver's Door Switch
Security Control Unit
Under-Dash Fuse/Relay Box
- Driver's Multiplex Control Unit
Under-Hood Fuse/Relay Box

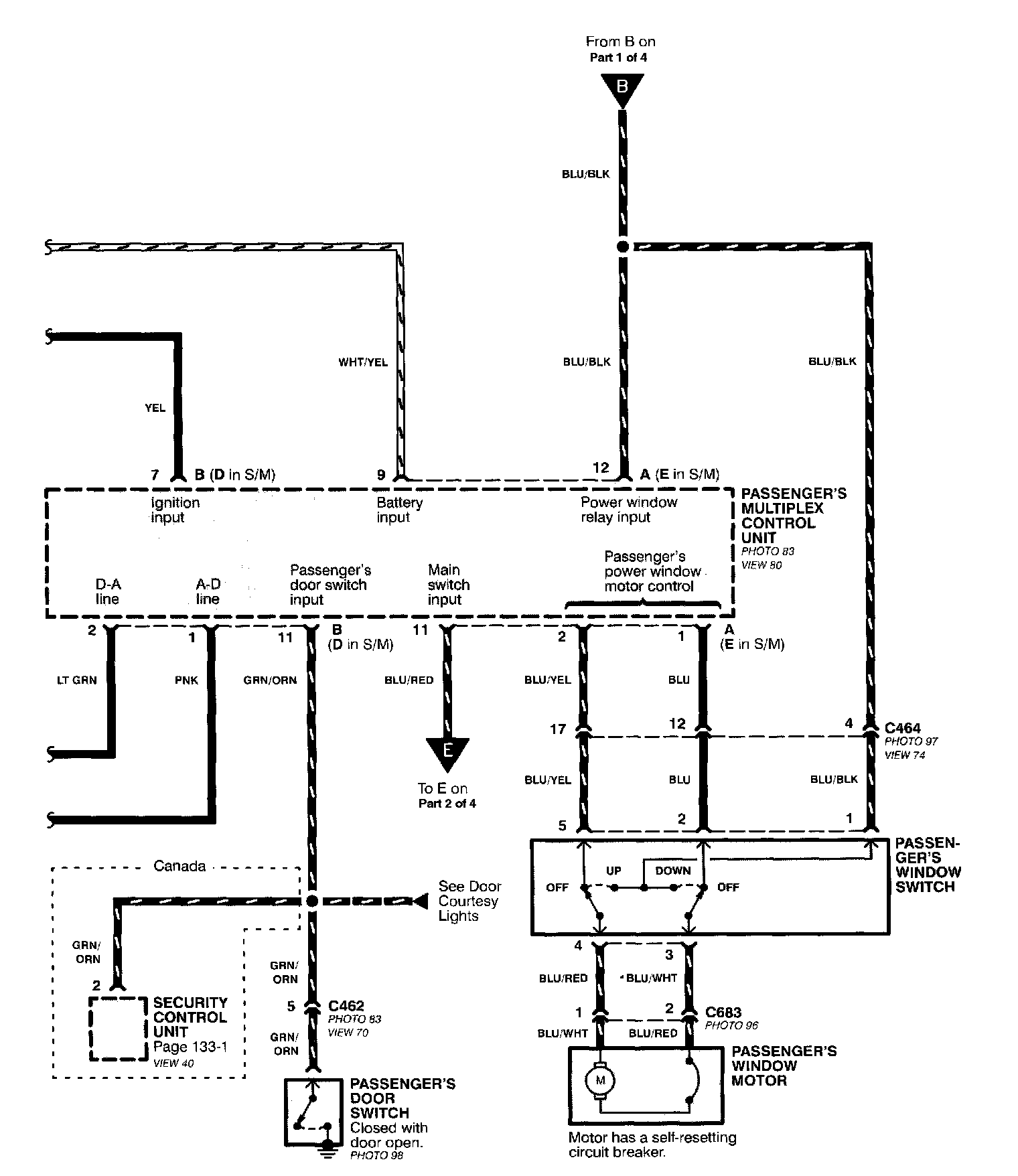

Power Windows (Part 4 Of 4):




Power Windows (Part 4 of 4)
Passenger's Door Switch
Passenger's Window Motor
Passenger's Window Switch
Passenger's Multiplex Control Unit
Security Control Unit
