System Diagram

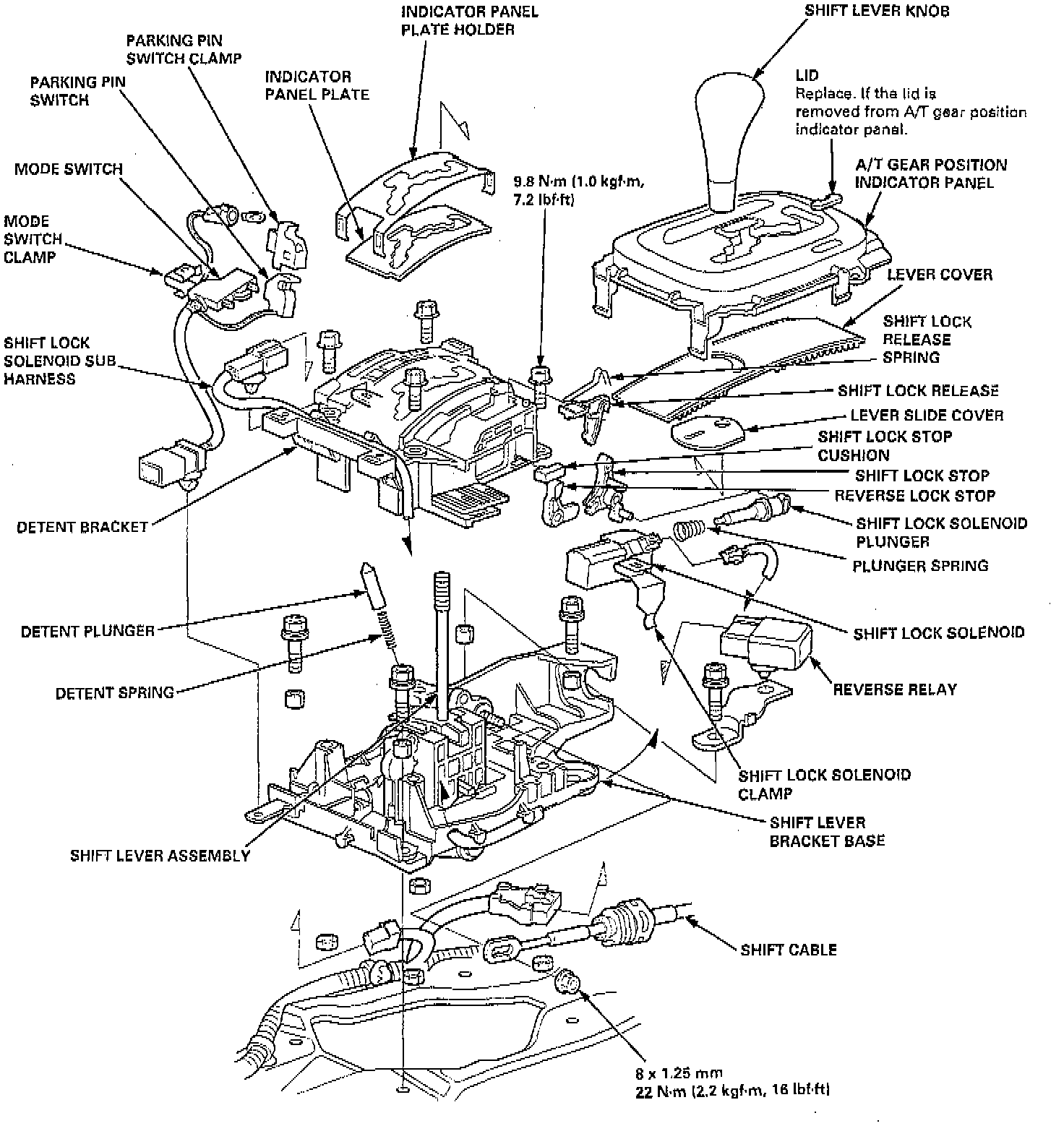

SHIFTER/CONSOLE

Part 1 Of 2:




Part 2 Of 2:





RIGHT SIDE COVER

Part 1 Of 2:




Part 2 Of 2:

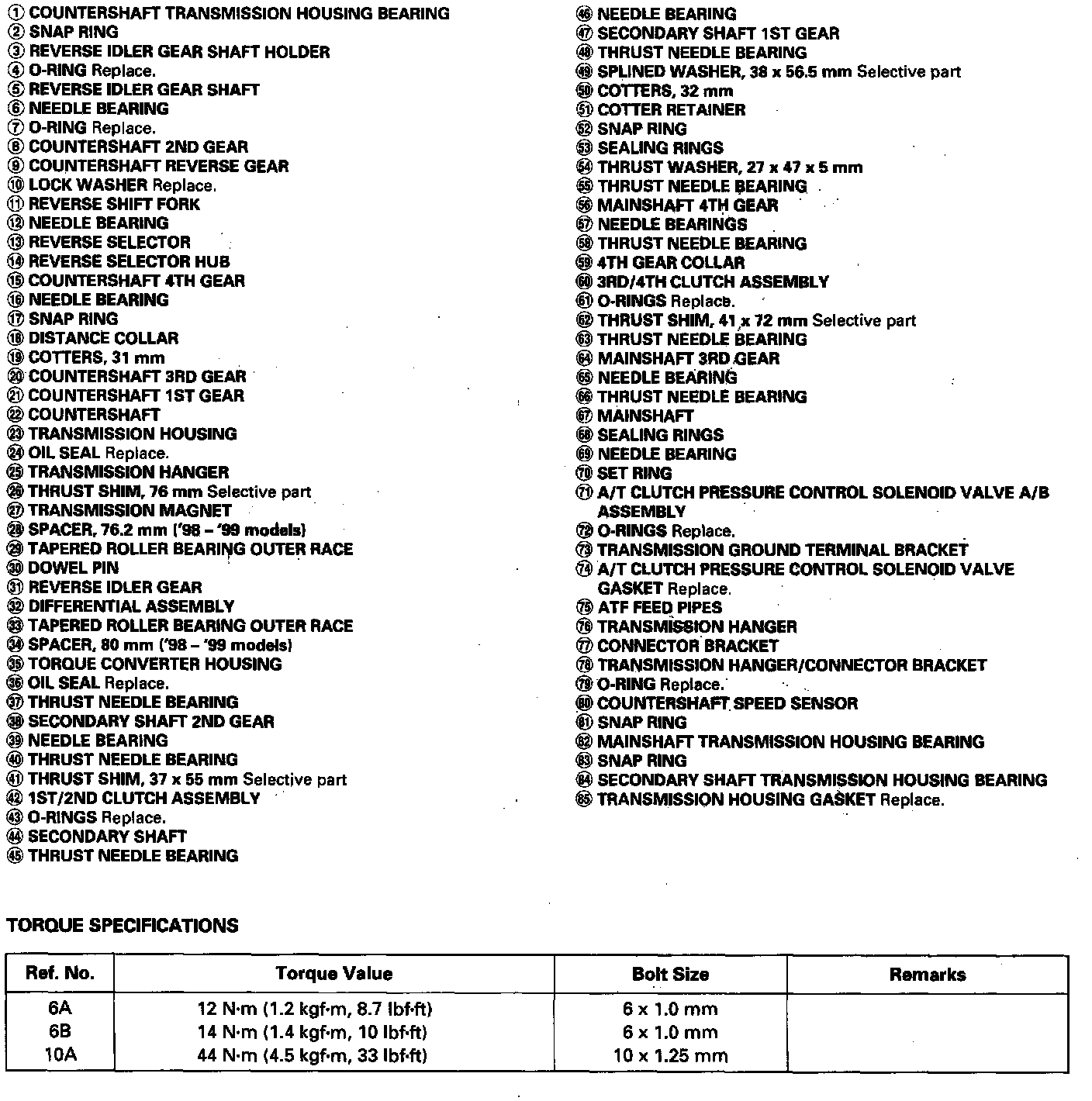

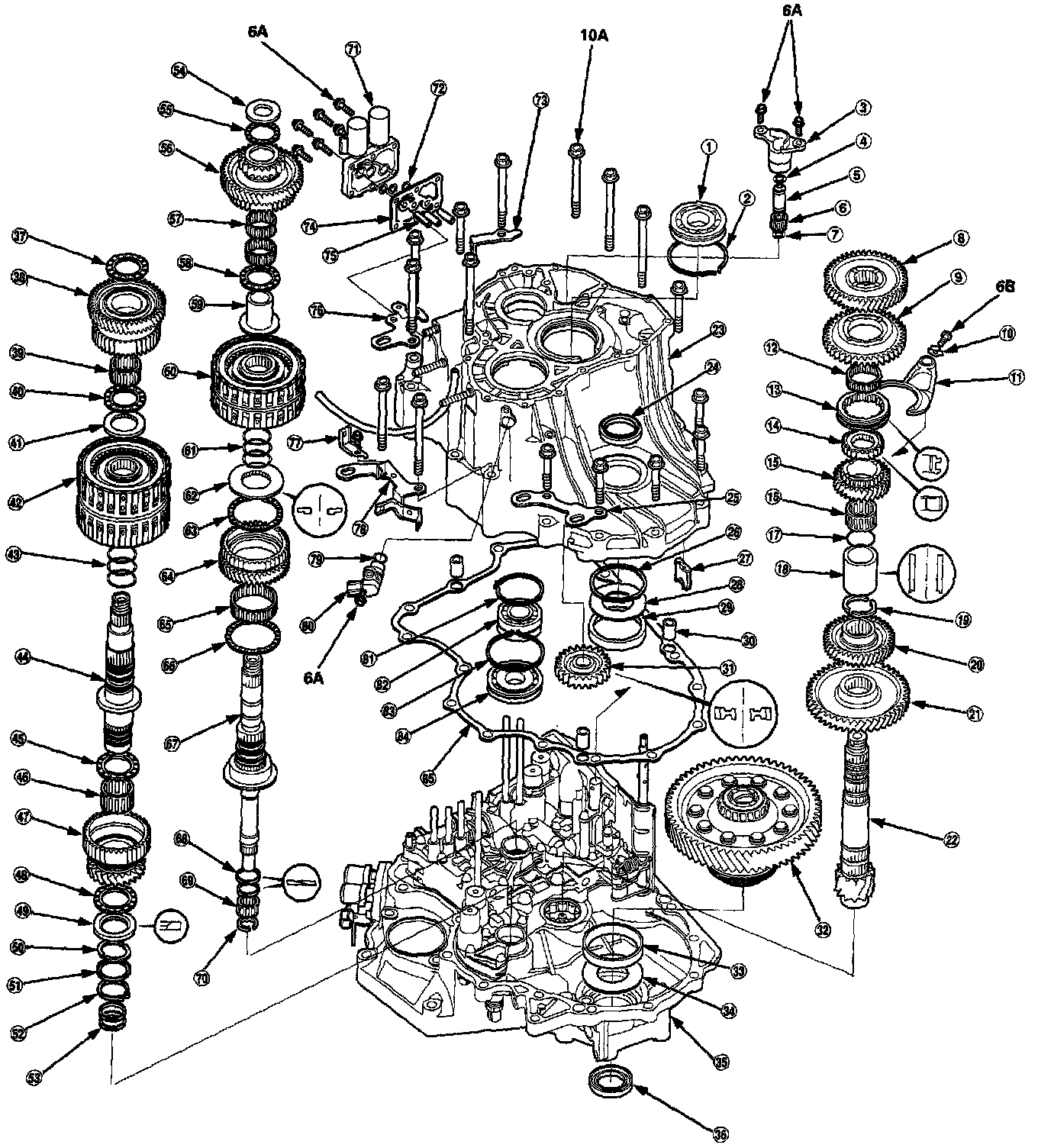

TRANSMISSION HOUSING

Part 1 Of 2:




Part 2 Of 2:

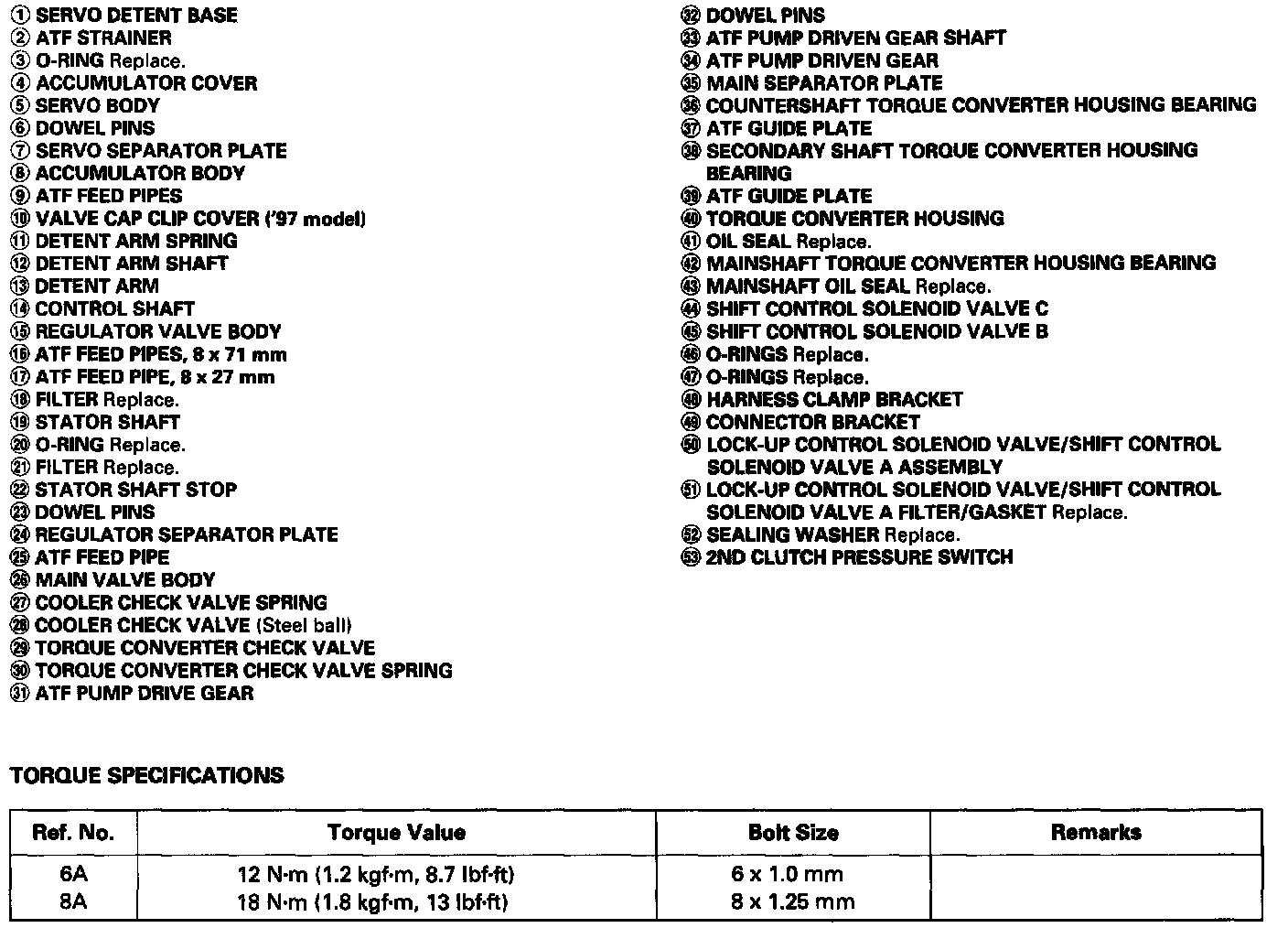

TORQUE CONVERTER HOUSING / VALVE BODY
