Prelude Type-SH L4-2156cc 2.2L DOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>

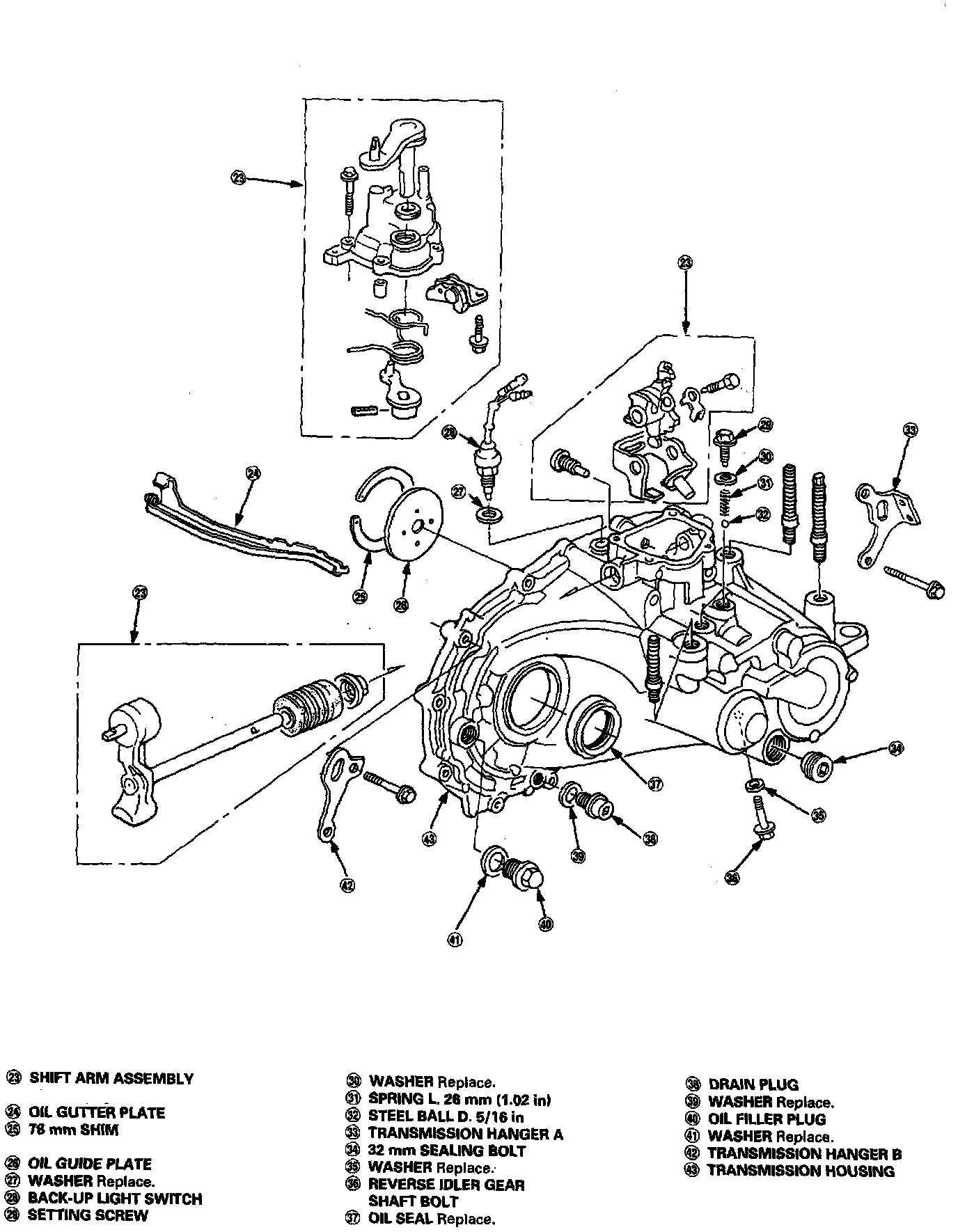

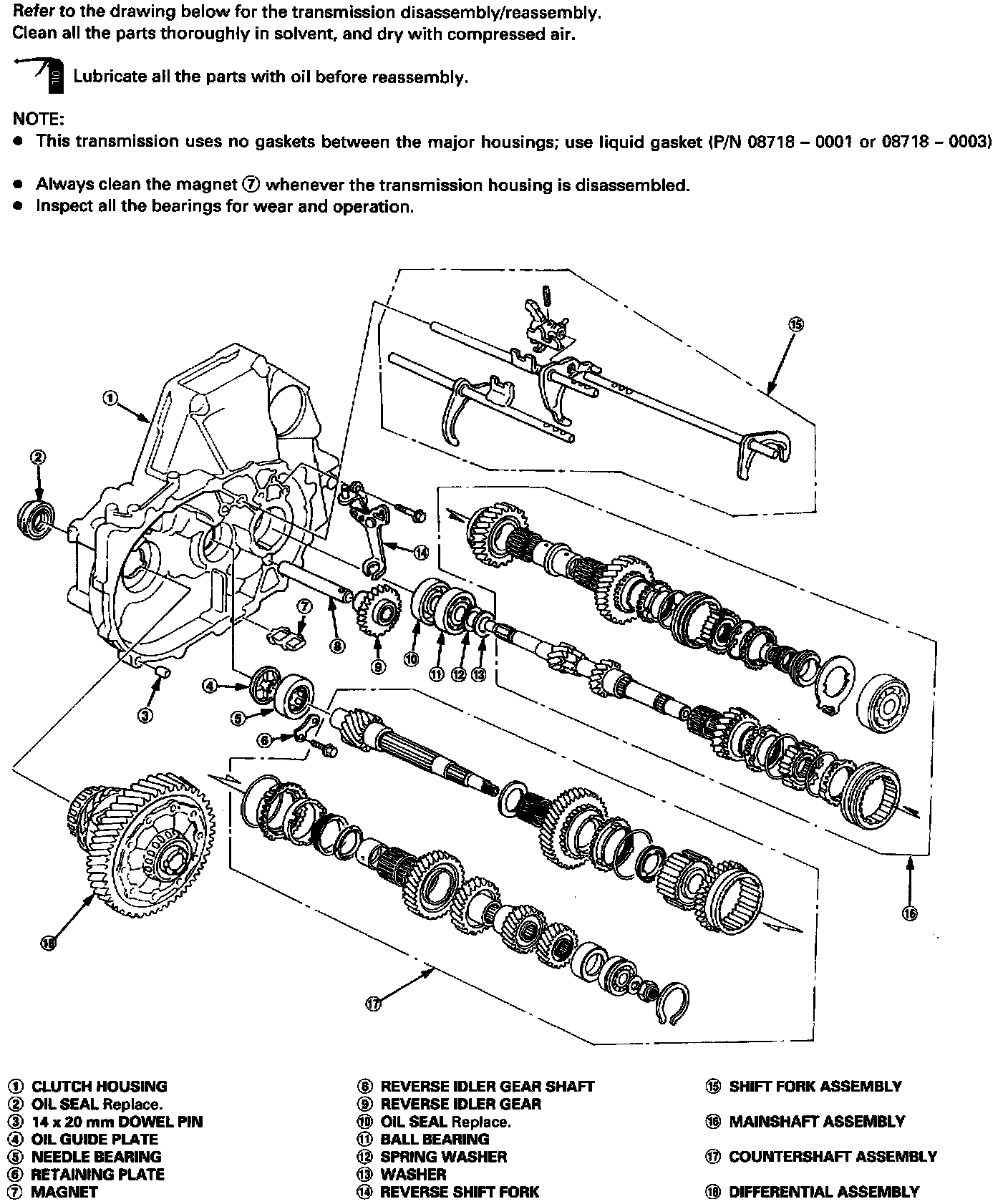

Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
System Diagram
