Home >> Honda >> 1999 >> Prelude Type-SH L4-2156cc 2.2L DOHC (VTEC) MFI >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Wire Harness >> With ATTS

With ATTS

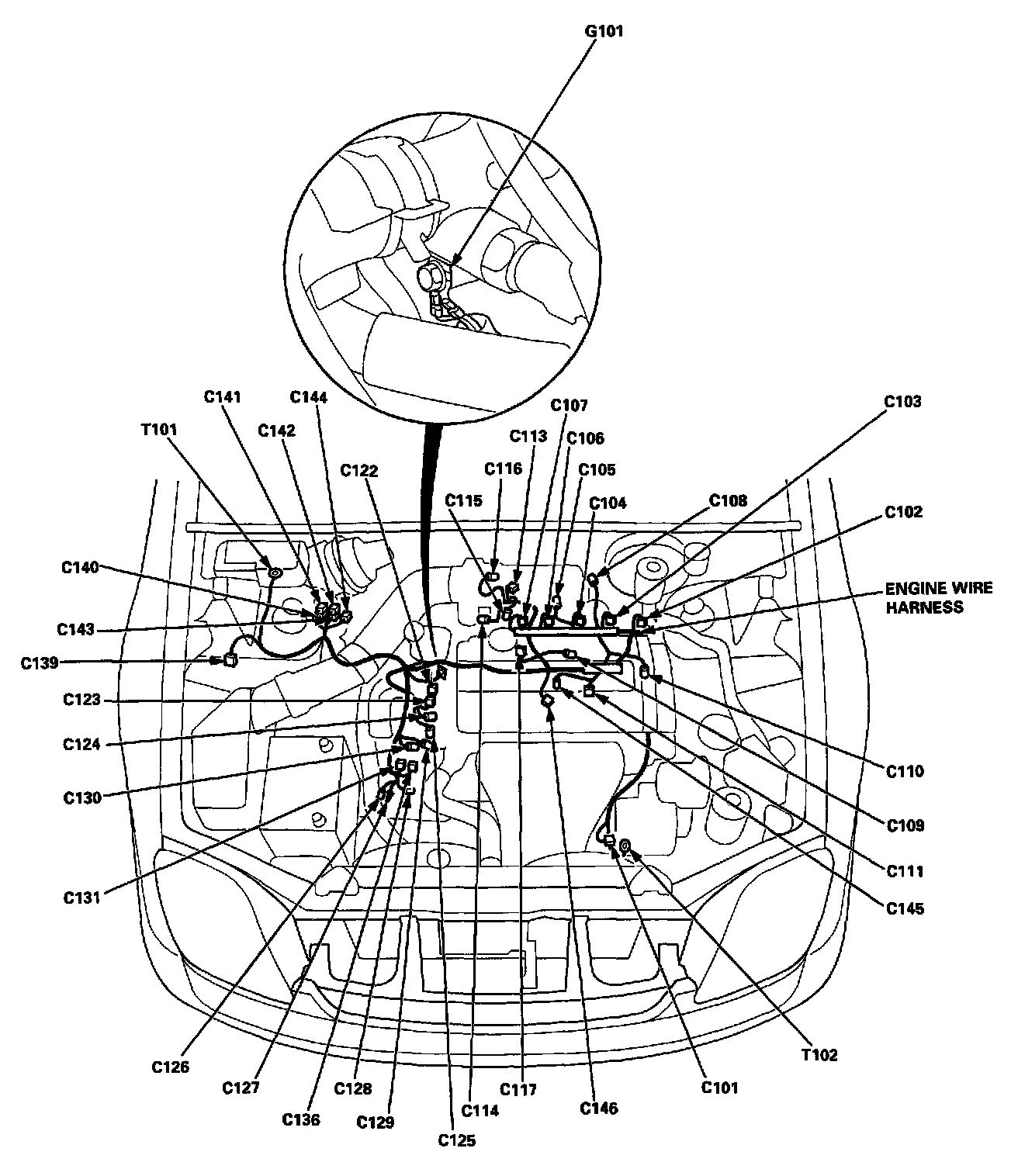

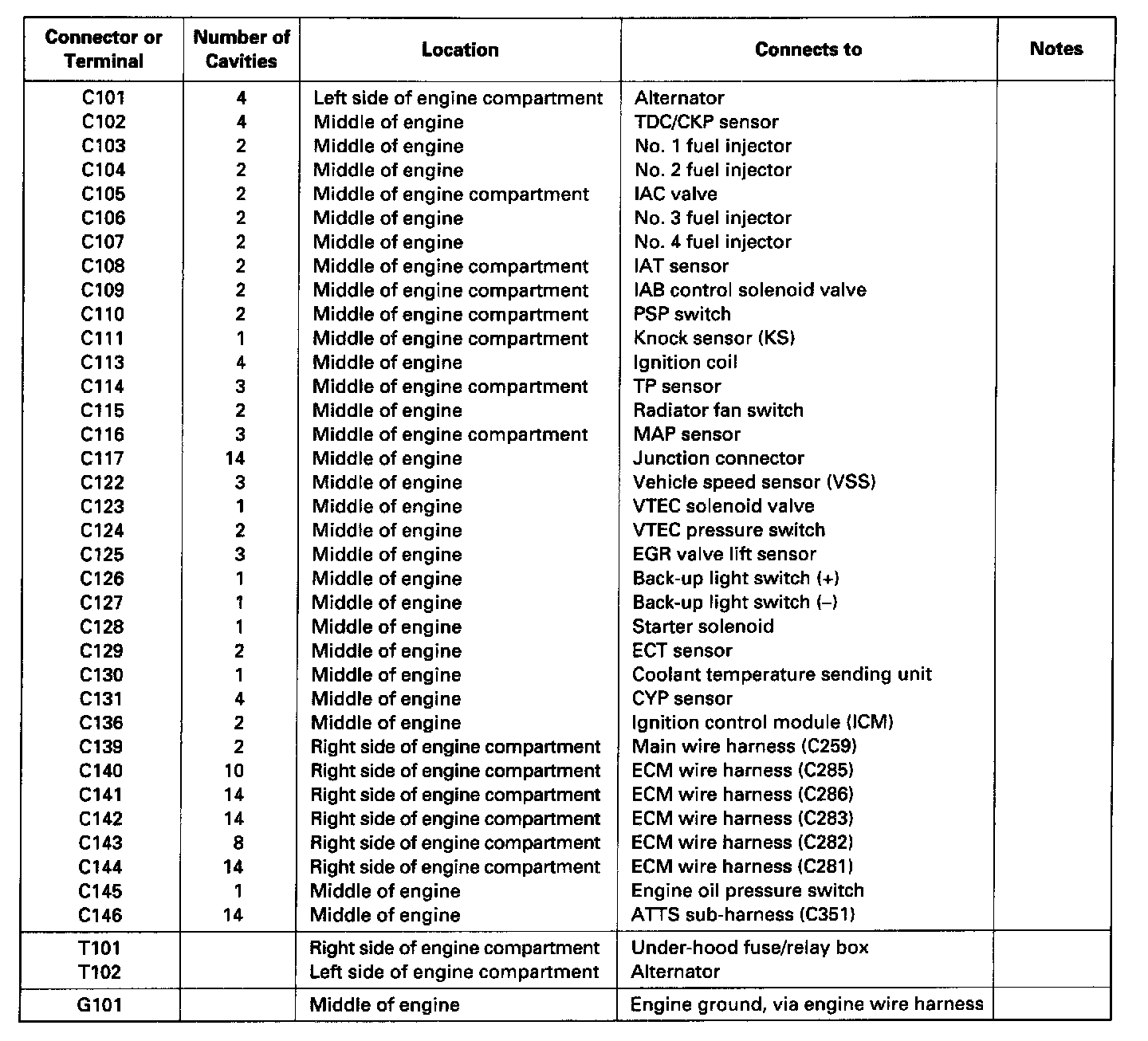

Engine Wire Harness (With ATTS)
