Replacement

1. Remove the center panel.
2. Disconnect the air mix control cable from the heater unit.

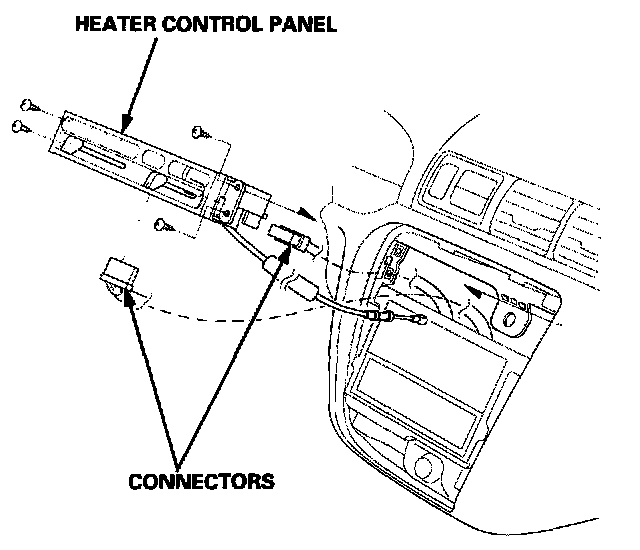

2. Remove the self-tapping screws, then pull the heater control panel. Disconnect the connectors, and remove the heater control panel.
3. Install in the reverse order of removal. Adjust the air mix control cable and the heater valve cable.
