Electronic Climate Control

1. From under the hood, open the cable clamp, then disconnect the heater valve cable from the heater valve arm.




2. From under the dash, disconnect the air mix control cable housing from the cable clamp, and disconnect the air mix control cable from the air mix control arm.
3. Set the temperature control lever to MAX COOL.

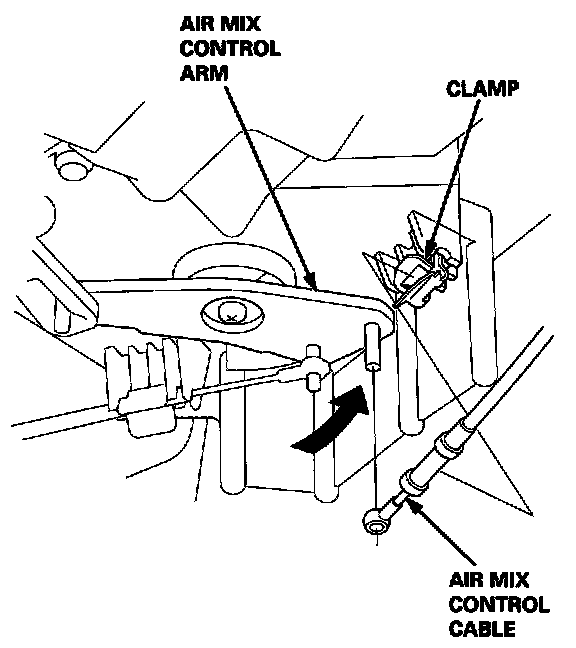

4. Turn the air mix control arm fully counterclockwise as shown, and hold it. Attach the air mix control cable to the air mix control arm, then snap the hook of the air mix control cable housing into the cable clamp.

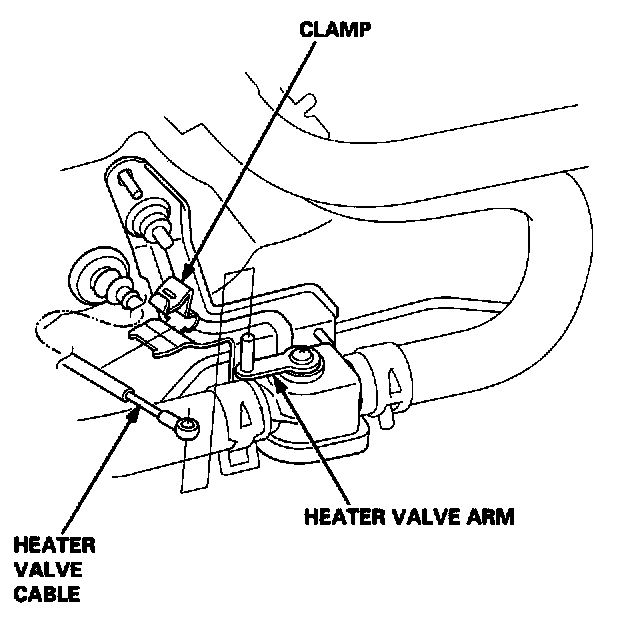

5. From under the hood, turn the heater valve arm to the fully closed position as shown, and hold it. Attach the heater valve cable to the heater valve arm, and gently pull on the heater valve cable housing to take up any slack, then install the heater valve cable housing into the cable clamp.
