Ground Distribution

Ground Distribution (G1, G2 And G101) (Part 1 Of 10):

G1, G2 and G101 (Part 1 Of 10)
ATTS Control Unit
ATTS Unit
- Left Solenoid
- Right Solenoid
Battery
Cylinder Head Cover
PGM-FI Main Relay
Power Steering Pump Bracket
Power Steering Pressure (PSP) Switch
Radiator Fan Switch
Shift Control Solenoid Valve B, C
Vehicle Speed Sensor (VSS)

Ground Distribution (G1, G2 And G101) (Part 2 Of 10):

G1, G2 and G101 (Part 2 Of 10)
ATTS Control Unit (M/T) or Transmission Control Module (A/T)
CKP/TDC/CYP Sensor Shield
CKP/TDC Sensor Shield
CYP Sensor Shield
Data Link Connector (DLC)
Engine Control Module (ECM)
Main Shaft/Counter Shaft Sensor Shield
Primary HO2S Shield
Secondary HO2S Shield
Knock Sensor Shield
VTEC Pressure Switch

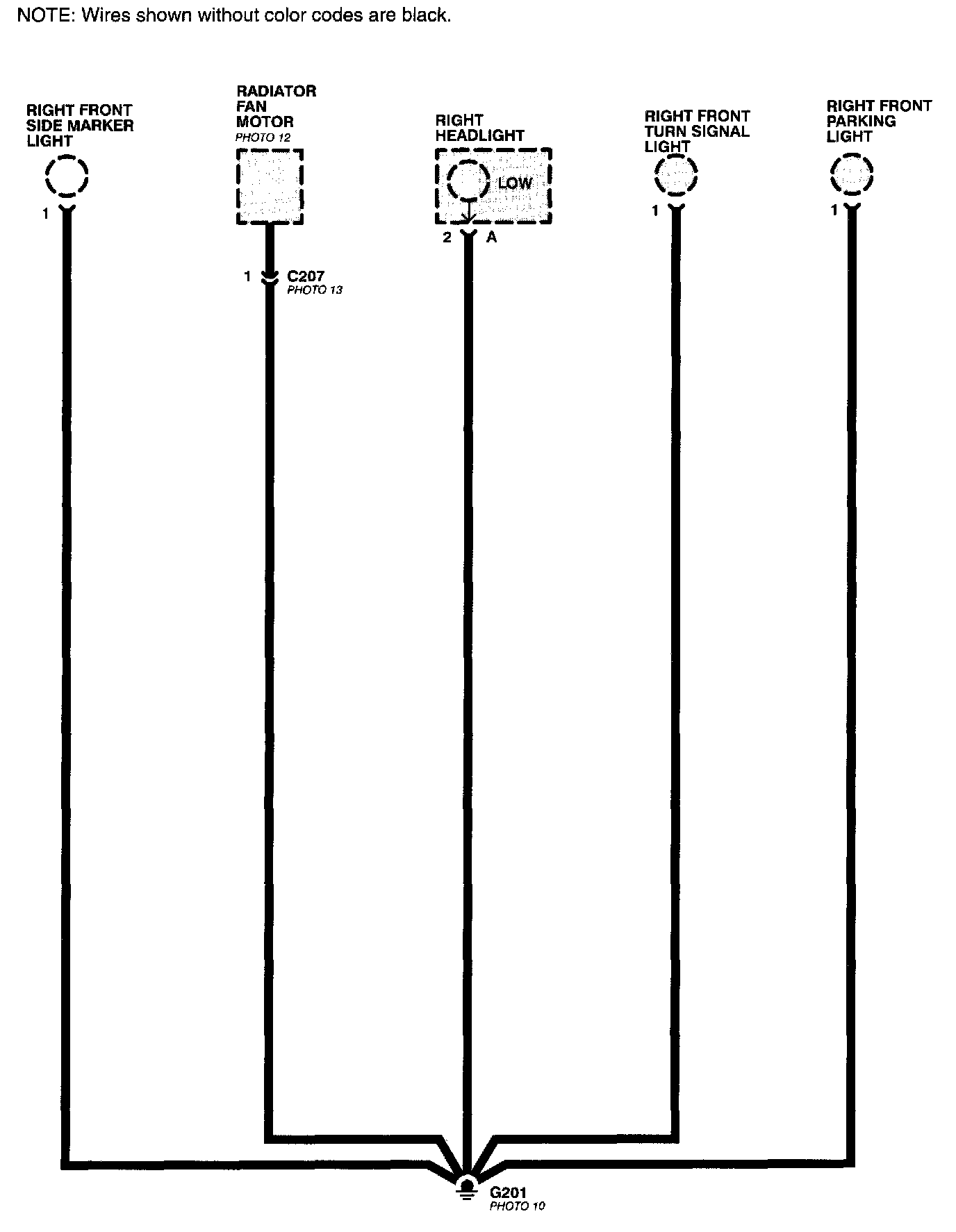

Ground Distribution (G201) (Part 3 Of 10):

G201 (Part 3 Of 10)
Right Front Side Marker Light
Radiator Fan Motor
Right Headlight
Right Front Turn Light
Right Front Parking Light

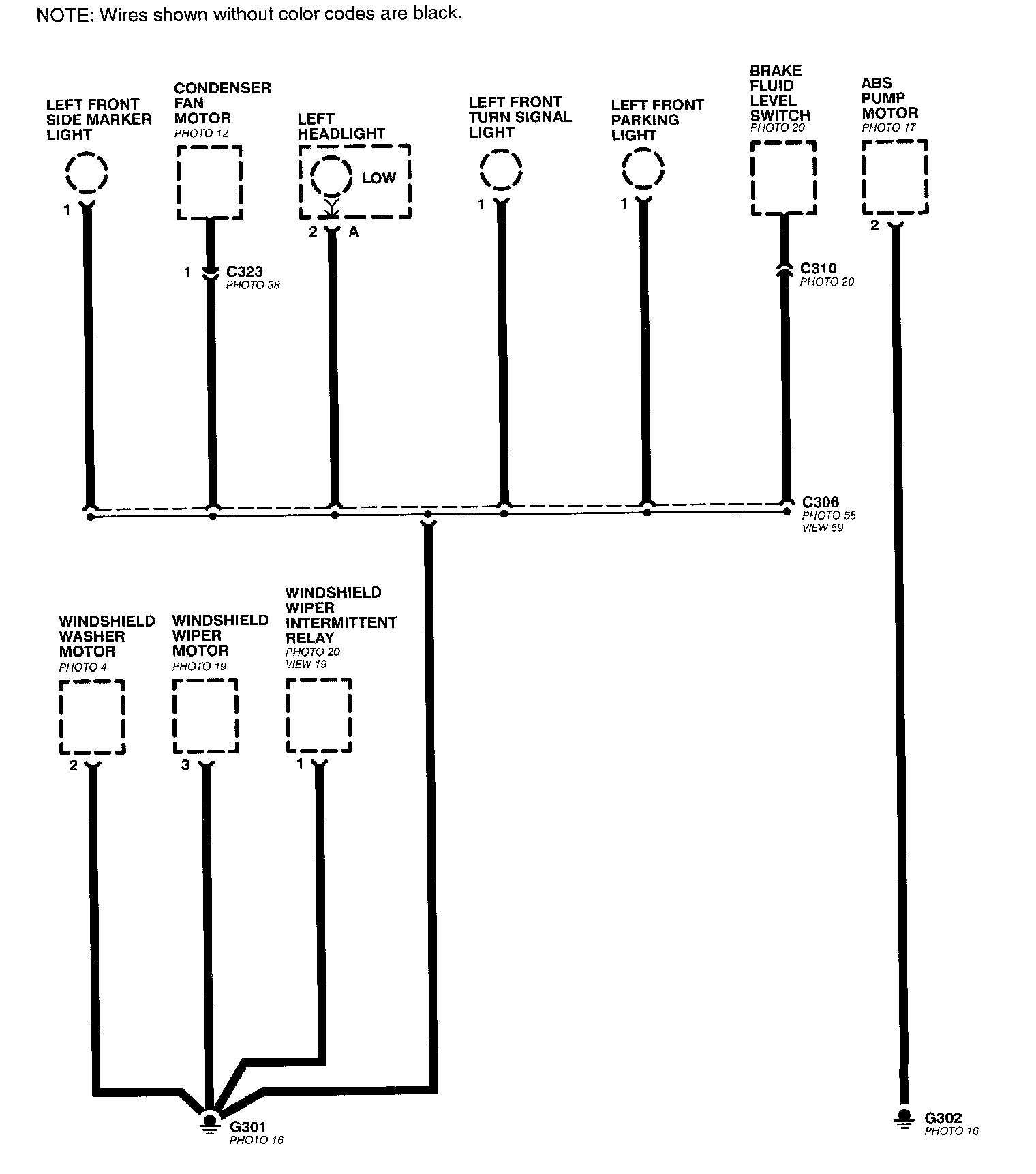

Ground Distribution (G301 And G302) (Part 4 Of 10):

G301 and G302 (Part 4 Of 10)
ABS Pump Motor
Brake Fluid Level Switch
Condenser Fan Motor
Left Front Side Marker Light
Left Headlight
Left Front Turn Signal
Left Front Parking Light
Windshield Washer Motor
Windshield Wiper Motor
Windshield Wiper Intermittent Relay

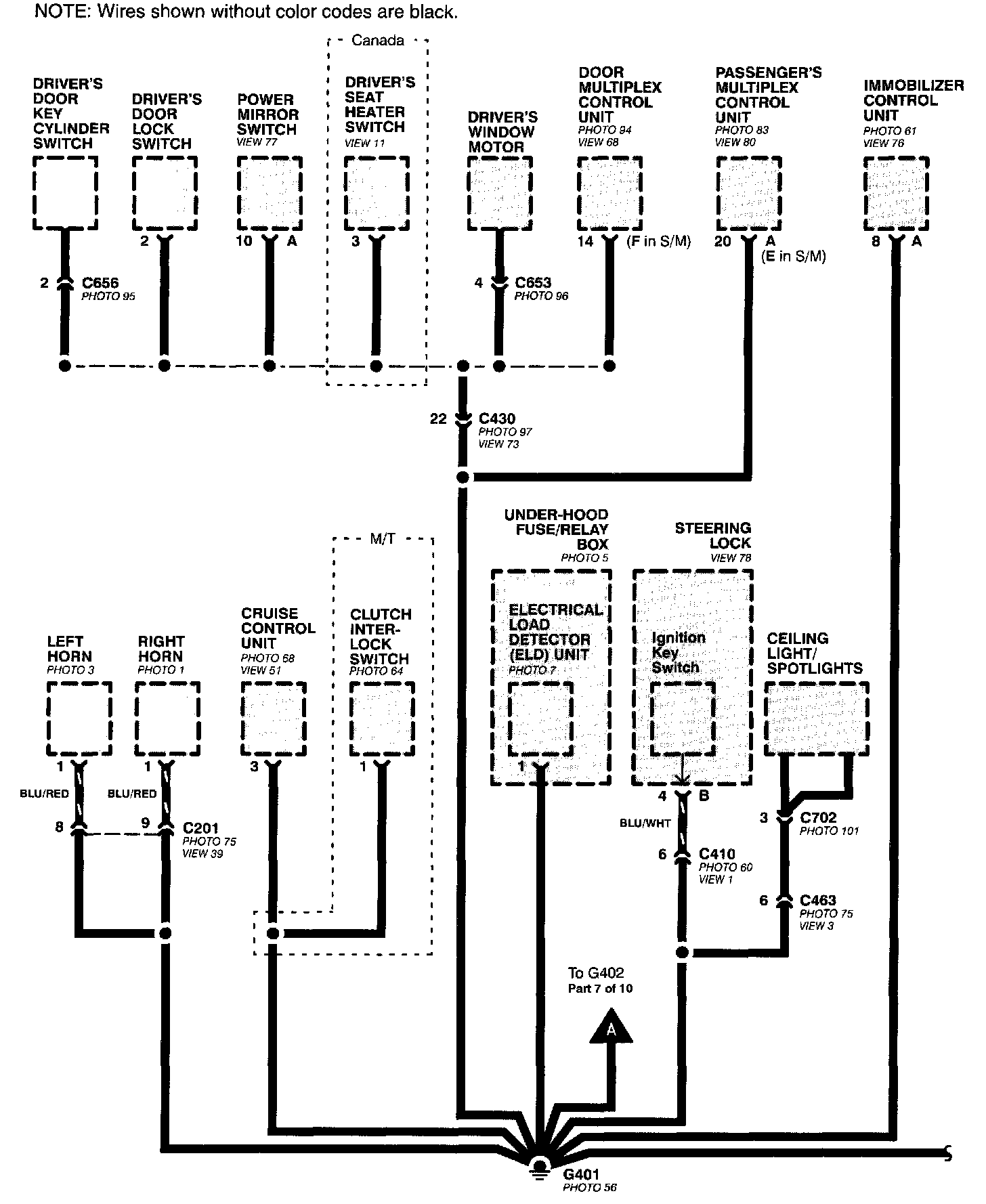

Ground Distribution (G401) (Part 5 Of 10):

G401 (Part 5 Of 10)
Cruise Control Unit
Ceiling Light/Spotlights
Clutch Interlock Switch
Driver's Door Key Cylinder Switch
Driver's Door Lock Switch
Driver's Seat Heater Switch
Driver's Window Motor
Door Multiplex Control Unit
Electrical Load Detector (ELD) Unit
Ignition Key Shift
Immobilizer Control Unit
Left Horn
Power Mirror Switch
Passenger's Multiplex Control Unit
Right Horn

Ground Distribution (G401) (Part 6 Of 10):

G401 (Part 6 Of 10)
Accessory Power Socket
Accessory Power Socket Relay
Blower Motor Relay
Clock
Clutch Switch
Combination Light Switch
Cruise Control Main Switch
Driver's Multiplex Control Unit
Gauge Assembly
Moonroof Switch
Moonroof Close Relay
Moonroof Open Relay
Power Window Relay
Security System Connector
Turn Signal/Hazard Relay
Under-Dash Fuse/Relay Box
Windshield Wiper/Washer Switch

Ground Distribution (G402) (Part 7 Of 10):

G402 (Part 7 Of 10)
ABS Fail-Safe Relay
Dimmer Relay
Driver's Multiplex Control Unit
Daytime Running Lights Control Unit
Door Multiplex Control Unit
Driver's Door Lock Assembly
Left Power Mirror
Multiplex Control Unit Inspection Connector
Passenger's Multiplex Control Unit
Passenger's Seat Heater Switch
Passenger's Door Key Cylinder Switch
Passenger's Door Lock Switch
Right Power Mirror
Seat Heater Relay
Under-Dash Fuse/Relay Box
Under-Hood Fuse/Relay Box

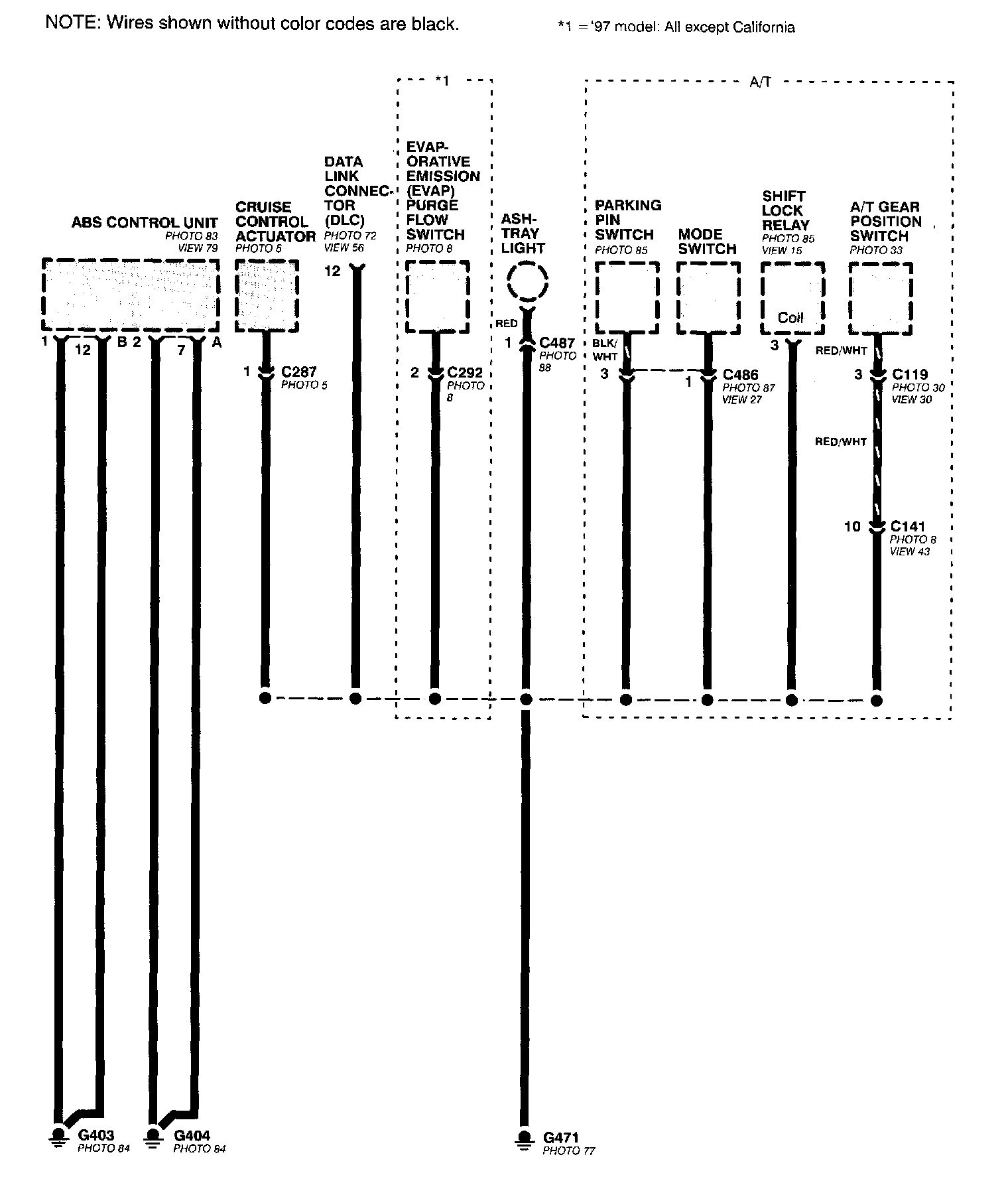

Ground Distribution (G403, G404 And G471) (Part 8 Of 10):

G403, G404 and G471 (Part 8 Of 10)
ABS Control Unit
A/T Gear Position Switch
Cruise Control Actuator
Data Link Connector (DLC)
Evaporative Emission (EVAP) Purge Flow Switch
Parking Pin Switch
Mode Switch
Shift Lock Relay

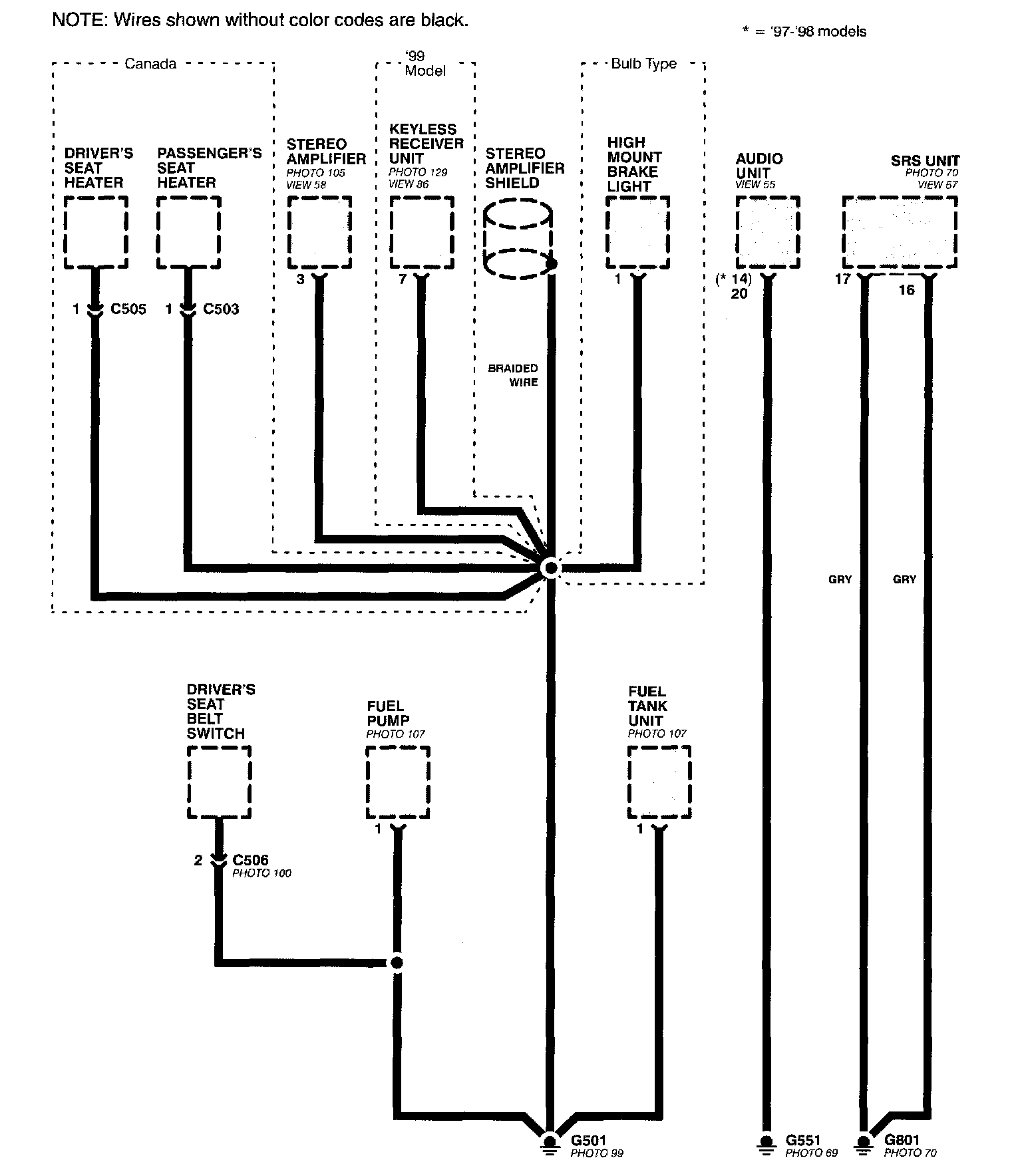

Ground Distribution (G501, G551 And G801) (Part 9 Of 10):

G501, G551 and G801 (Part 9 Of 10)
Audio Unit
Driver's Seat Belt Switch
Driver's Seat Heater
Fuel Pump
Fuel Tank Unit
High Mount Brake Light
Passenger's Seat Heater
Stereo Amplifier
Stereo Amplifier Shield
SRS Unit

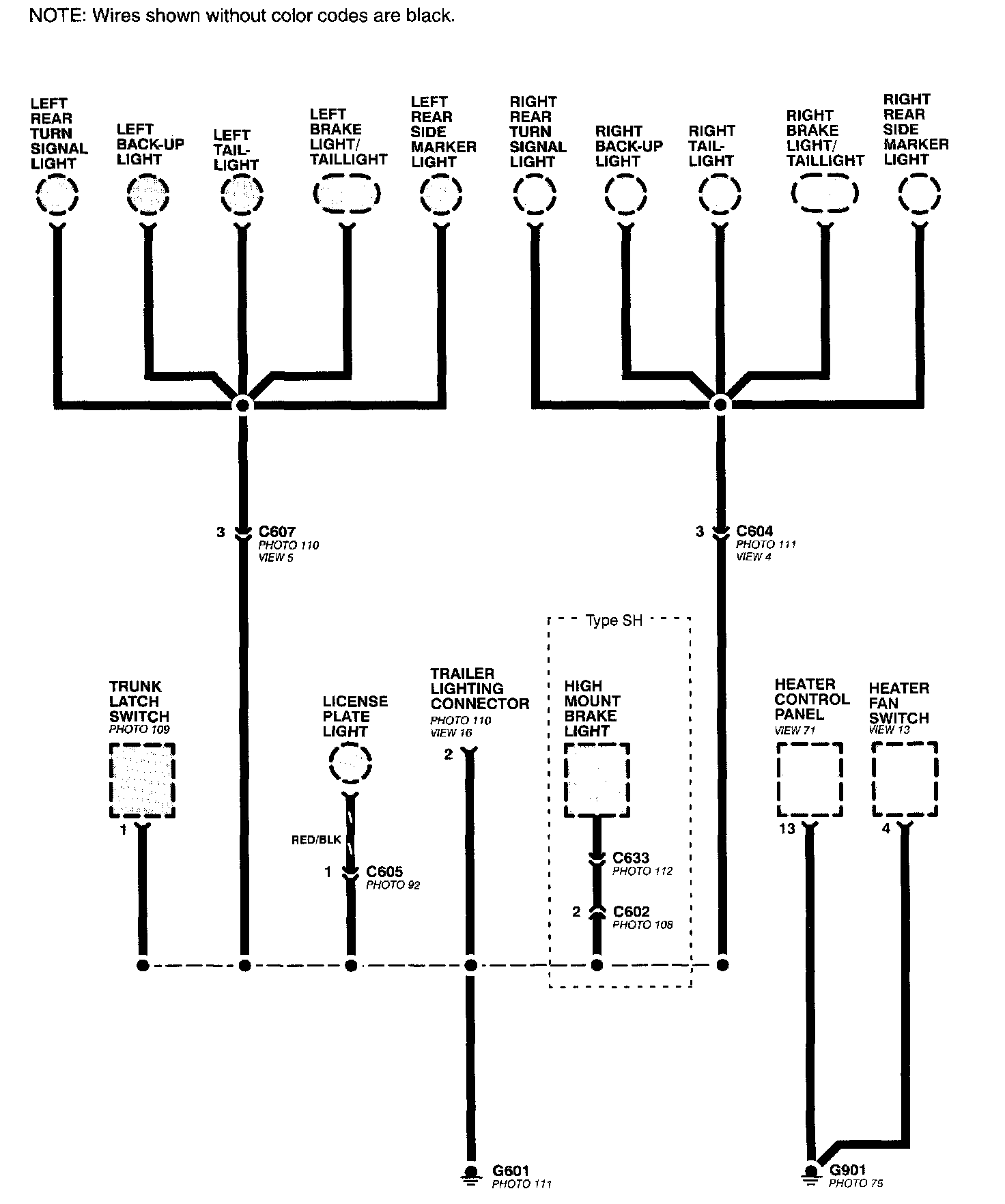

Ground Distribution (G601 And G901) (Part 10 Of 10):

G601 and G901 (Part 10 Of 10)
Heater Control Panel
Heater Fan Switch
High Mount Brake Light
Trailer Lighting Connector
Trunk Latch Switch
