Power Distribution

Power Distribution (From Battery To Ignition Switch, Fuses And Relays) Power Distribution (From Battery To Ignition Switch, Fuses And Relays) (Part 1 Of 14):

From Battery to Ignition Switch, Fuses and Relays (Part 1 Of 14)
Alternator
Battery
Starter
- Starter Solenoid
Under-Dash Fuse/Relay Box
- Power Window Relay
Under-Hood Fuse/Relay Box
- ABS Pump Motor Relay
- Electrical Load Detector (ELD) Unit
- Headlight Relay

Power Distribution (From Battery To Ignition Switch, Fuses And Relays) (Part 2 Of 14):

From Battery to Ignition Switch, Fuses and Relays (Part 2 Of 14)
Steering Lock
- Ignition Switch
Starter cut Relay
SRS Fuse Block
Under-Dash Fuse/Relay Box
Under-Hood Fuse/Relay Box

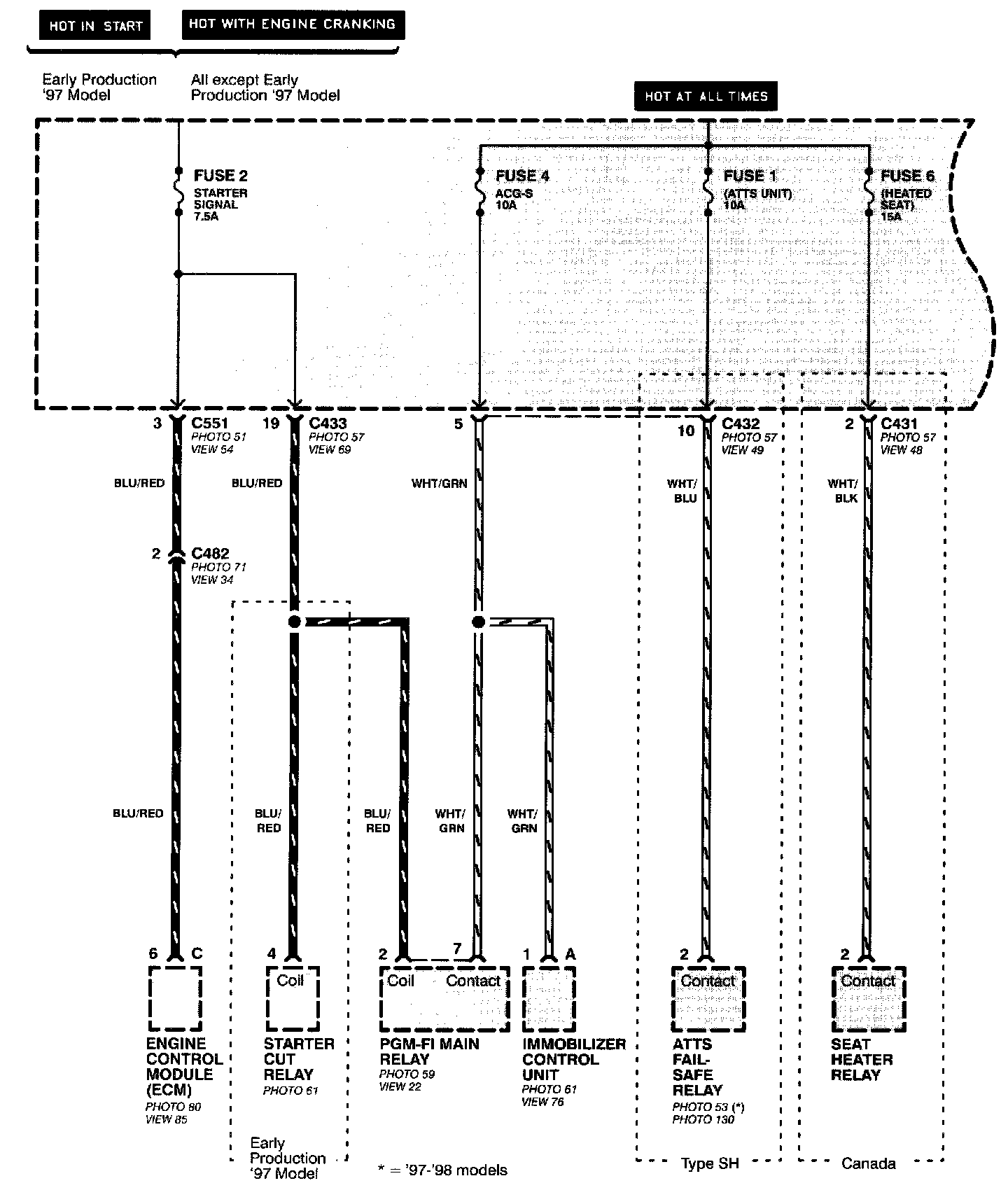

Power Distribution (From Fuses To Relays And Components) (Part 3 Of 14):

From Fuses to Relays and Components (Part 3 Of 14)
ATTS Fail-Safe Relay
Engine Control Module (ECM)
Immobilizer Control Unit
PGM-FI Main Relay
Starter Cut Relay
Seat Heater Relay

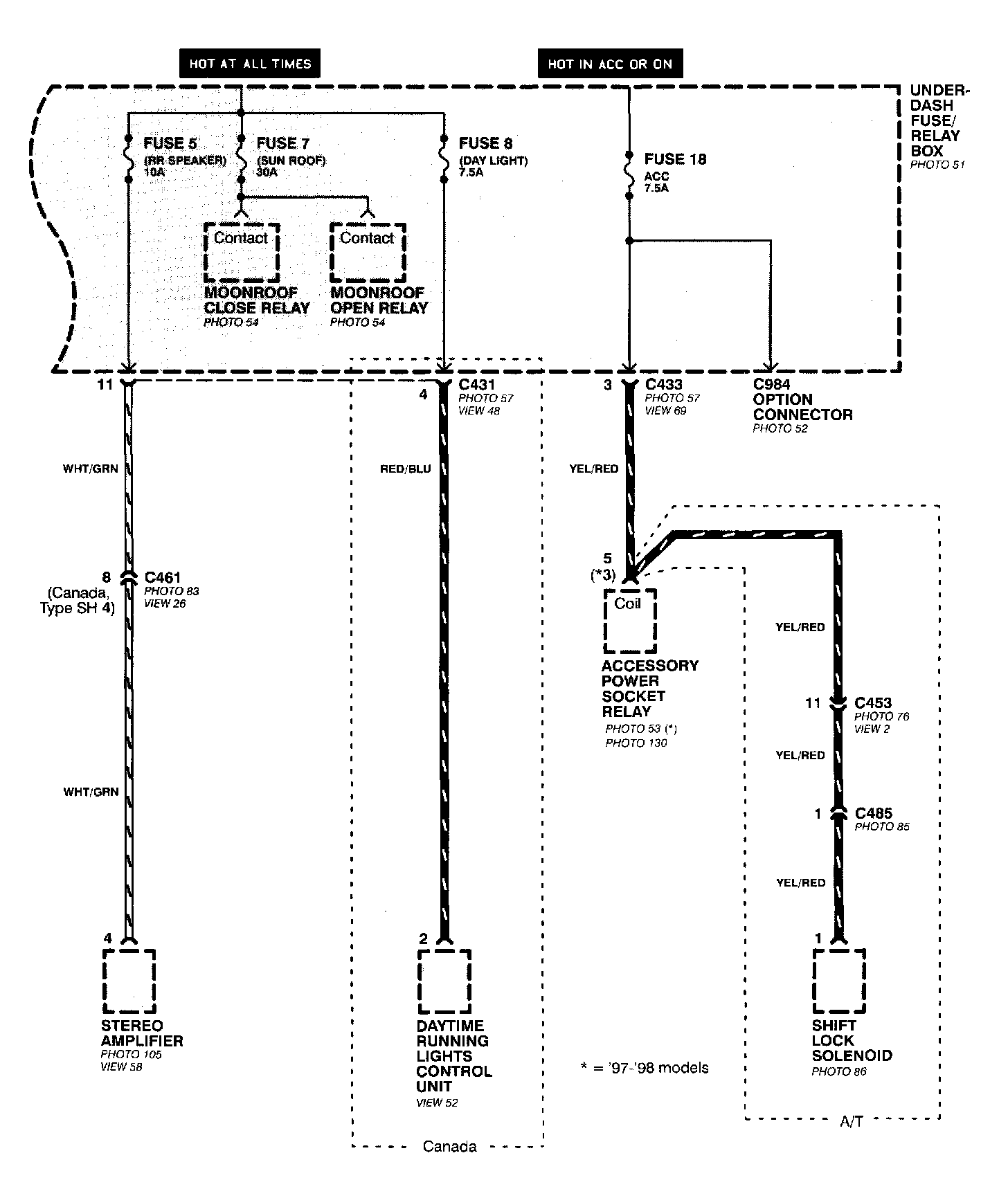

Power Distribution (From Fuses To Relays And Components) (Part 4 Of 14):

From Fuses to Relays and Components (Part 4 Of 14)
Accessory Power Socket Relay
Daytime Running Lights Control Unit
Stereo Amplifier
Shift Lock Solenoid
Under-Hood Fuse/Relay Box
- Moonroof Close Relay
- Moonroof Open Relay

Power Distribution (From Fuses To Relays And Components) (Part 5 Of 14):

From Fuses to Relays and Components (Part 5 Of 14)
ABS Control Unit
ATTS Control Unit
Option Connector
- Blower Motor Relay
Power Mirror Switch
Seat Heater Relay

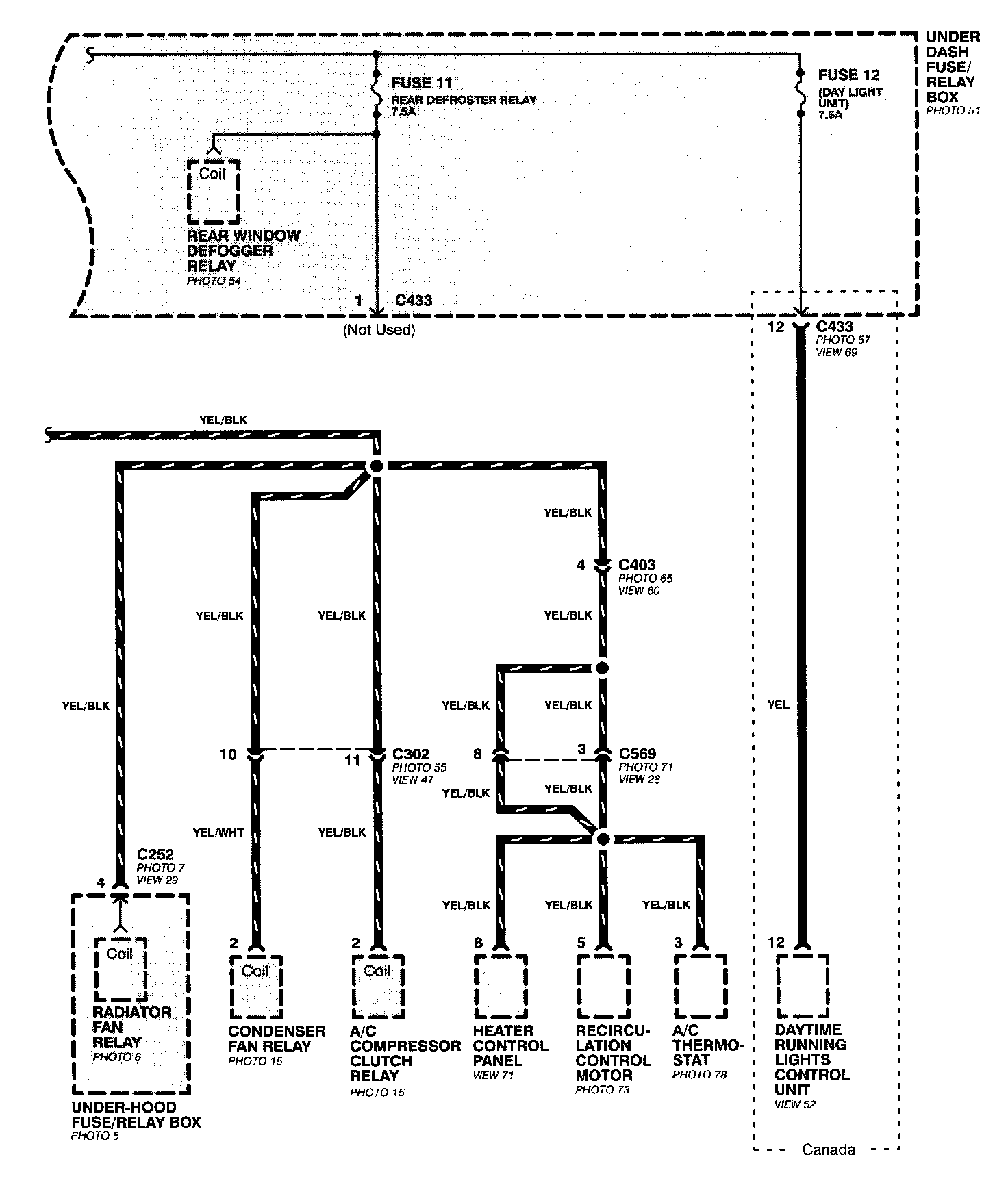

Power Distribution (From Fuses To Relays And Components) (Part 6 Of 14):

From Fuses to Relays and Components (Part 6 Of 14)
A/C Thermostat
A/C Compressor Clutch Relay
Condenser Fan Relay
Daytime Running Lights Control Unit
Heater Control Panel
Recirculation Control Motor
Under-Dash Fuse/Relay Box
- Rear Window Defogger Relay
Under-Hood Fuse/Relay Box
- Radiator Fan Relay

Power Distribution (From Fuses To Relays And Components) (Part 7 Of 14):

From Fuses to Relays and Components (Part 7 Of 14)
Auxiliary Fuse Holder
ATTS Fail-Safe Relay
ATTS Control Unit
Ignition Coil
Keyless Receiver Unit
Windshield Wiper Motor
Windshield Wiper Intermittent Relay
Windshield Wiper/Washer Switch

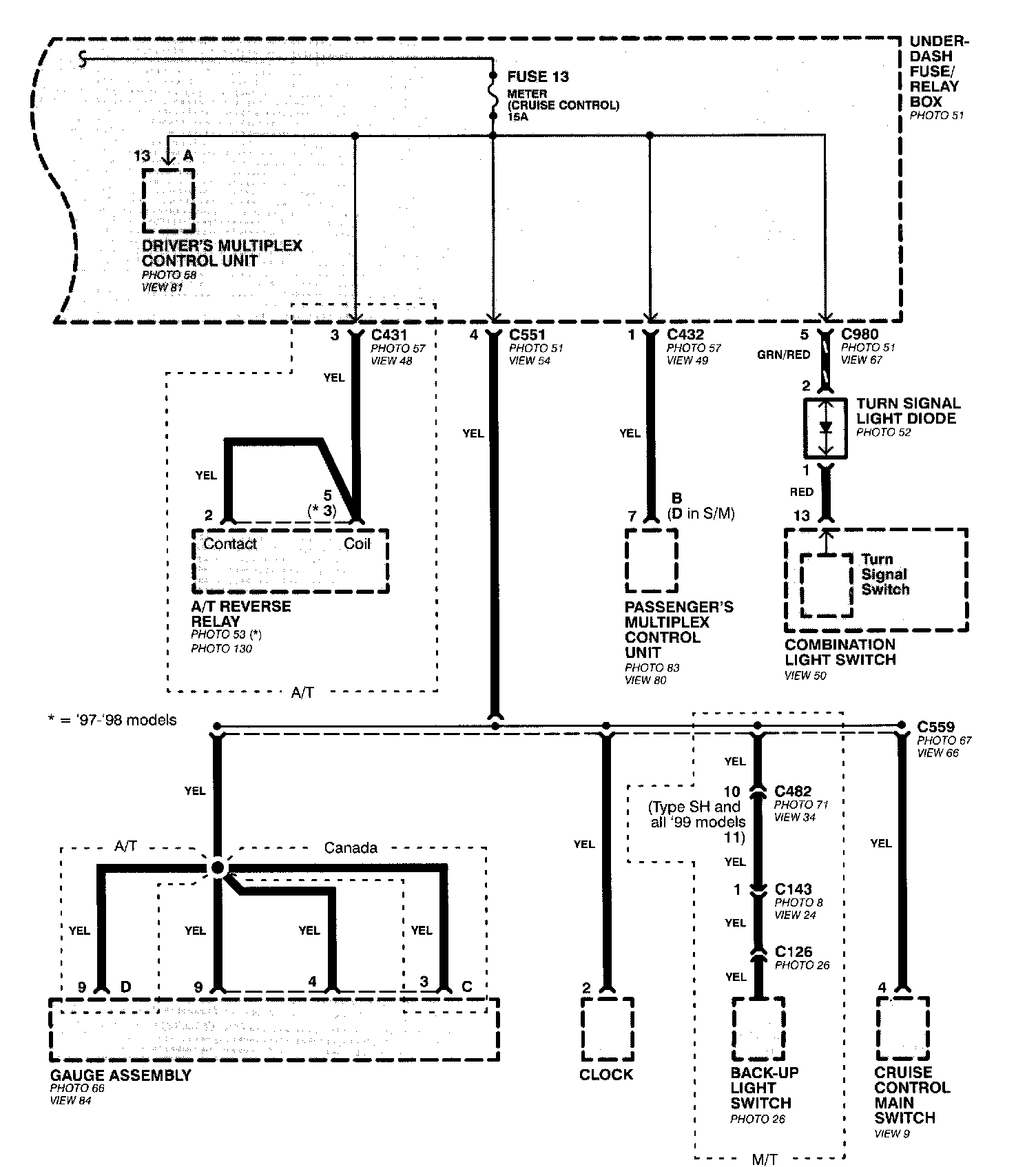

Power Distribution (From Fuses To Relays And Components) (Part 8 Of 14):

From Fuses to Relays and Components (Part 8 Of 14)
A/T Reverse Relay
Back-Up Light Switch
Clock
Combination Light Switch
- Turn Signal Switch
Cruise Control Switch
Gauge Assembly
Passenger's Multiplex Control Unit
Turn Signal Light Diode
Under-Dash Fuse/Relay Box
- Driver's Multiplex Control Unit

Power Distribution (From Fuses To Relays And Components) (Part 9 Of 14):

From Fuses to Relays and Components (Part 9 Of 14)
Exhaust Gas Recirculation (EGR) Control Solenoid Valve
Gauge Assembly
Immobilizer Control Unit
Intake Control Solenoid Valve
Security System Connector
Under-Dash Fuse/Relay Box
Under-Hood Fuse/Relay Box
- Electrical Load Detector (ELD) Unit

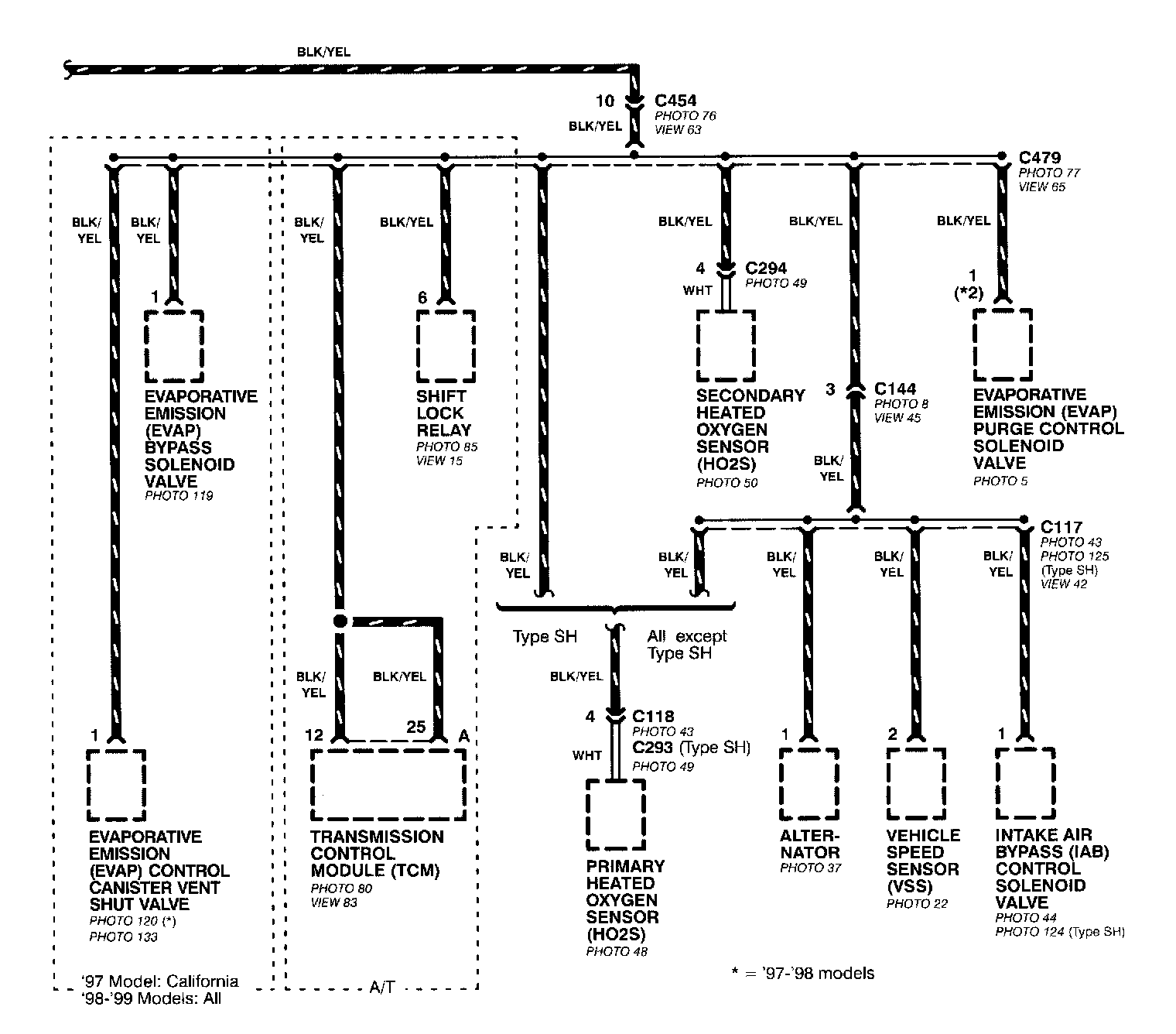

Power Distribution (From Fuses To Relays And Components) (Part 10 Of 14):

From Fuses to Relays and Components (Part 10 Of 14)
Alternator
Evaporative Emission (EVAP) Purge Control Solenoid Valve
Evaporative Emission (EVAP) Control Canister Vent Shut Valve
Evaporative Emission (EVAP) Bypass Solenoid Valve
Intake Air Bypass (IAB) Control Solenoid Valve
Primary Heated Oxygen Sensor (HO2S)
Secondary Heated Oxygen Sensor (HO2S)
Shift Lock Relay
Transmission Control Module (TCM)
Vehicle Speed Sensor(VSS)

Power Distribution (From Fuses To Relays And Components) (Part 11 Of 14):

From Fuses to Relays and Components (Part 11 Of 14)
PGM-FI Main Relay
SRS Fuse Block
SRS Unit
Under-Dash Fuse/Relay Box

Power Distribution (From Fuses To Relays And Components) (Part 12 Of 14):

From Fuses to Relays and Components (Part 12 Of 14)
ABS Fail-Safe Relay
Brake Switch
Hazard Warning Switch
Horn Relay
Ignition Key Light
Steering Lock
- Key Interlock Switch
Under-Dash Fuse/Relay Box
- Turn/Signal Hazard Relay
Under-Dash Fuse/Relay Box
- Blower Motor Relay
- Rear Window Defogger Relay

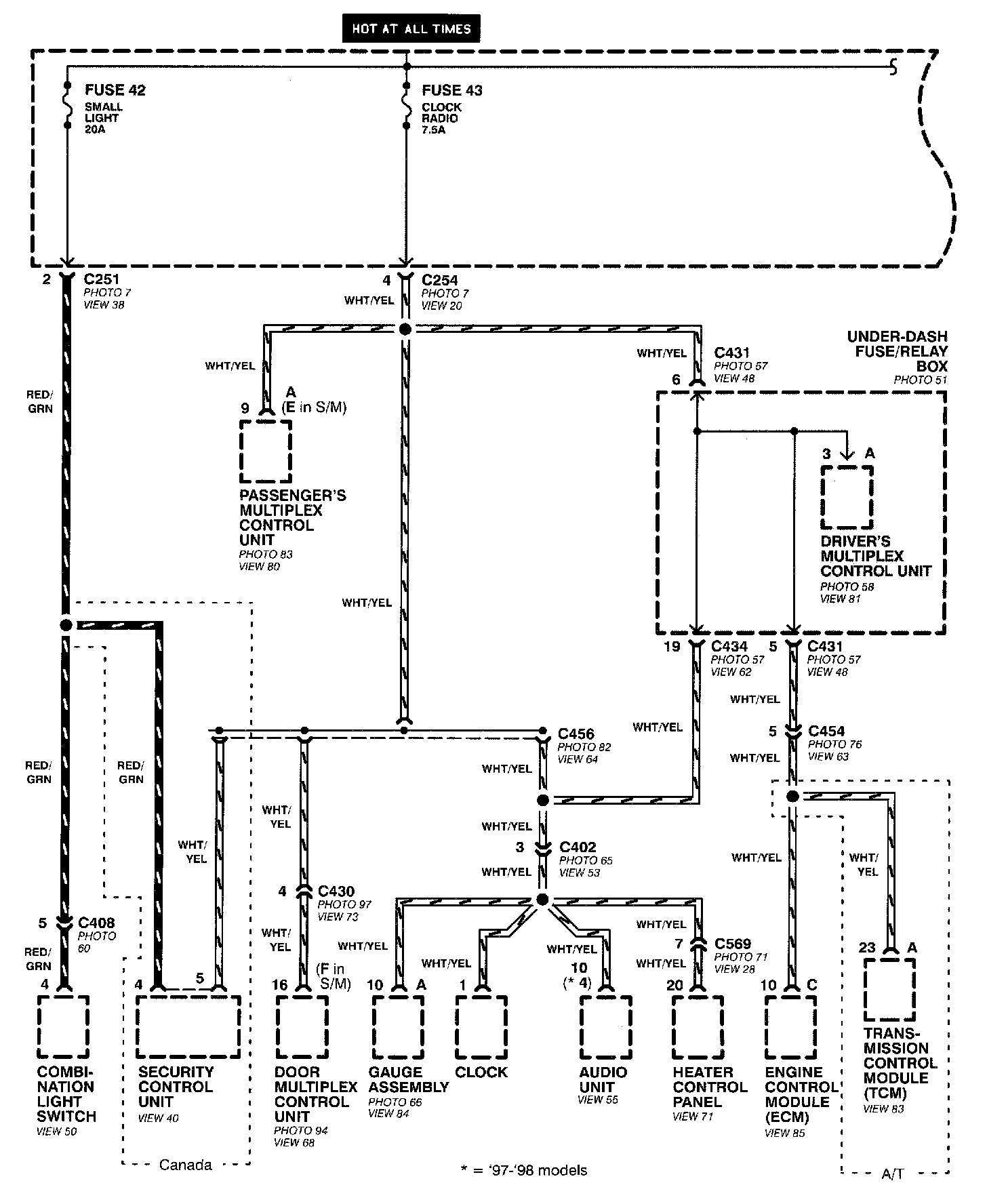

Power Distribution (From Fuses To Relays And Components) (Part 13 Of 14):

From Fuses to Relays and Components (Part 13 Of 14)
Audio Unit
Combination Light Switch
Clock
Door Multiplex Control Unit
Engine Control Module (ECM)
Gauge Assembly
Heater Control Panel
Passenger's Multiplex Control Unit
Security Control Unit
Transmission Control Module (TCM)
Under-Dash Fuse/Relay Box
- Driver's Multiplex Control unit

Power Distribution (From Fuses To Relays And Components) (Part 14 Of 14):

From Fuses to Relays and Components (Part 14 Of 14)
A/C Compressor Clutch Relay
Accessory Power Socket Relay
Condenser Fan Relay
Ceiling Light/Spot Lights
Data Link Connector (DLC)
Door Lock Relay
Driver's Door Courtesy Light
Keyless Receiver Unit
Passenger's Door Courtesy Light
Trunk Light
Under-Dash Fuse/Relay Box
- Driver's Multiplex Control Unit
Under-Hood Fuse/Relay Box
- Radiator Fan Relay
