Pinout Values and Diagnostic Parameters

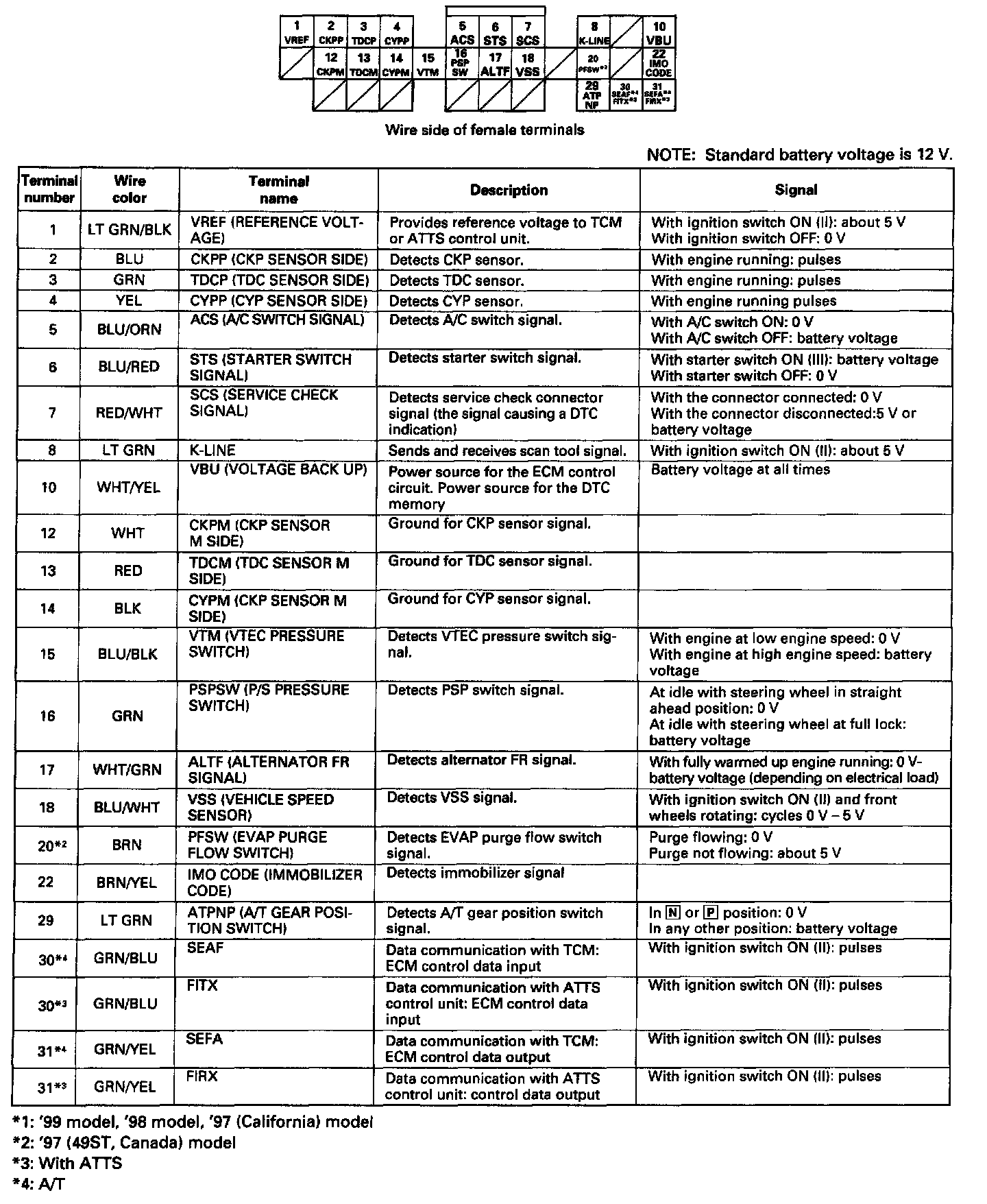

ECM Connector A (32P)

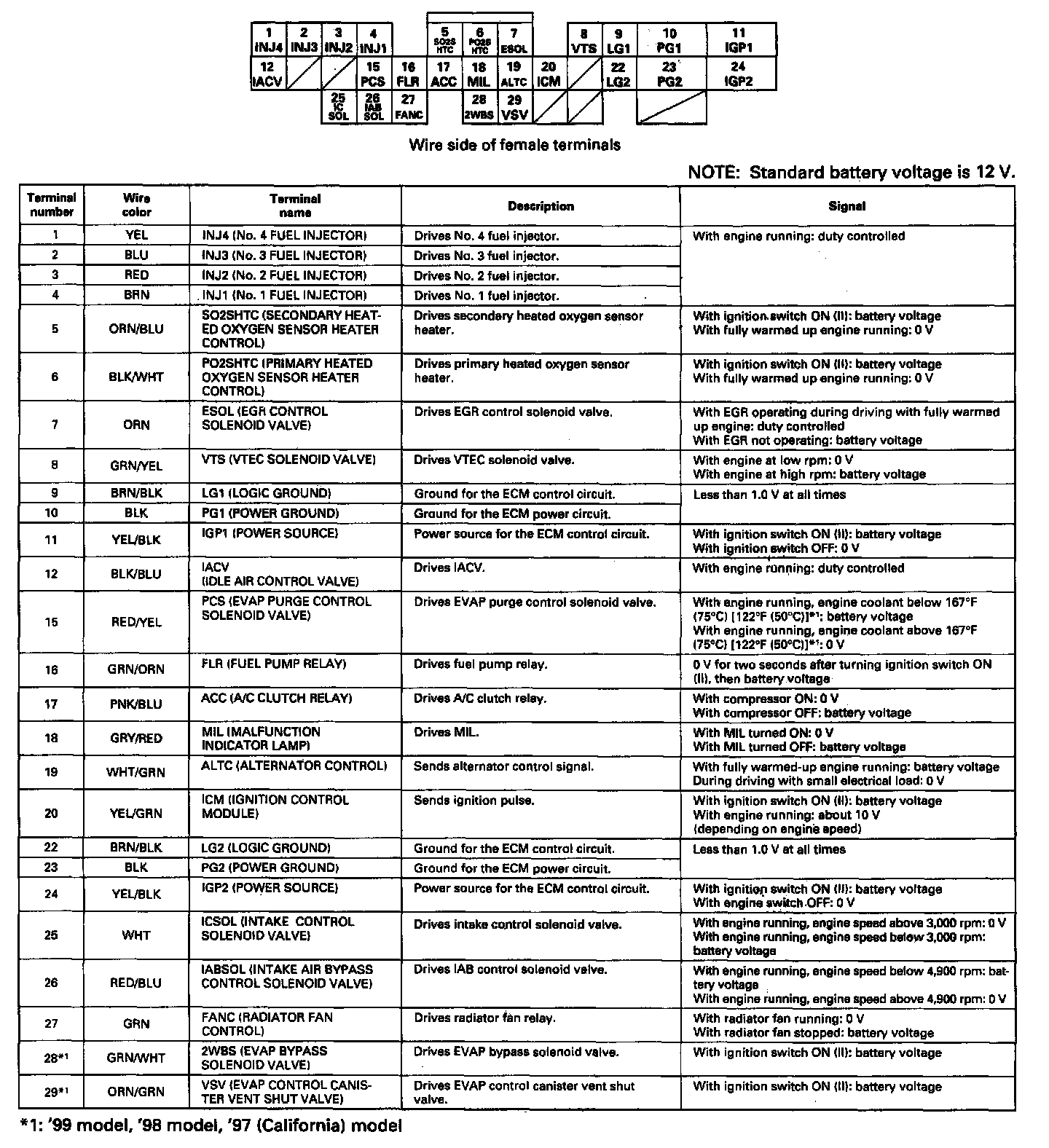

ECM Connector C (31P)




ECM Connector D (16P)
