Electrical Connections

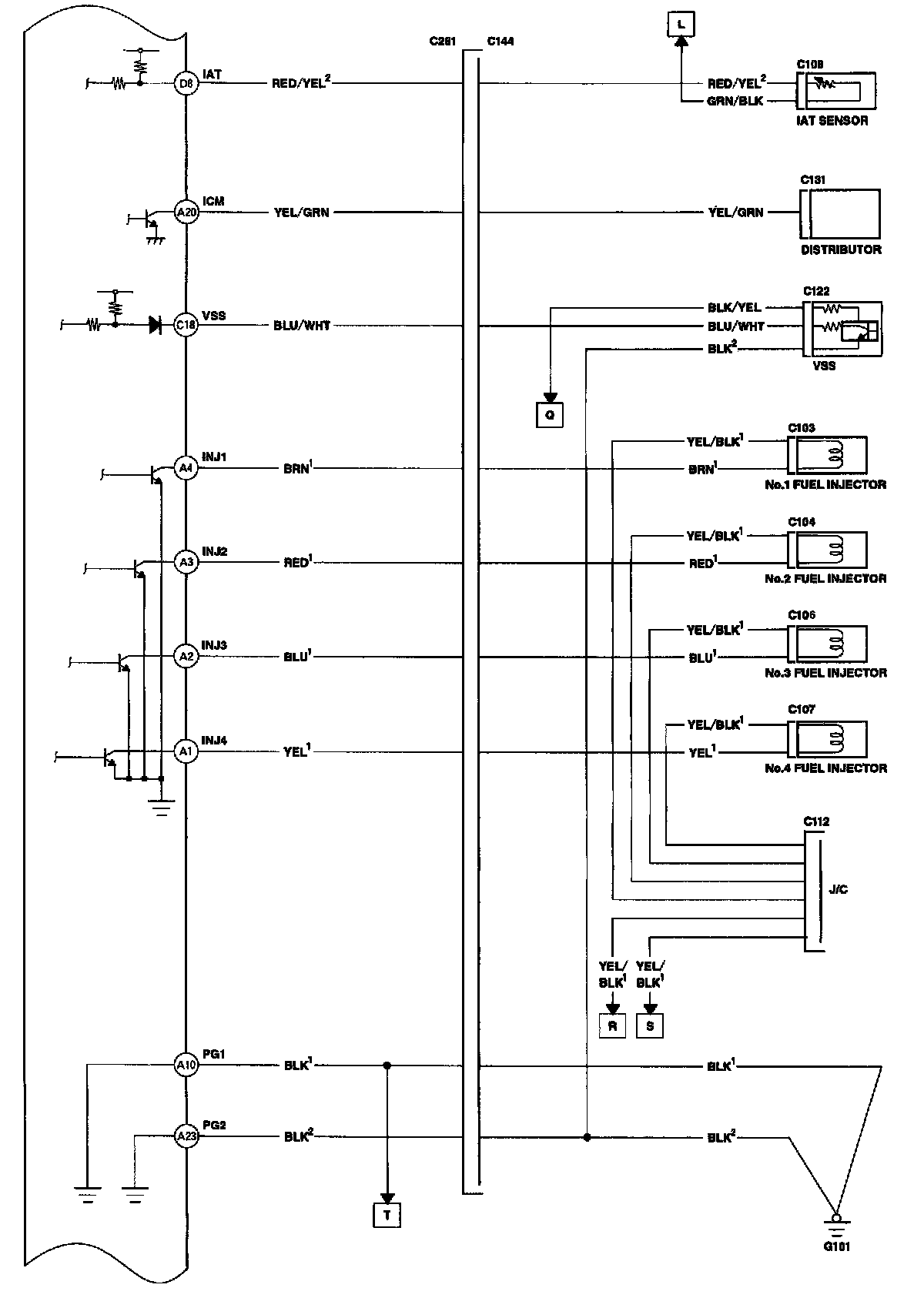

Part 1 Of 10:

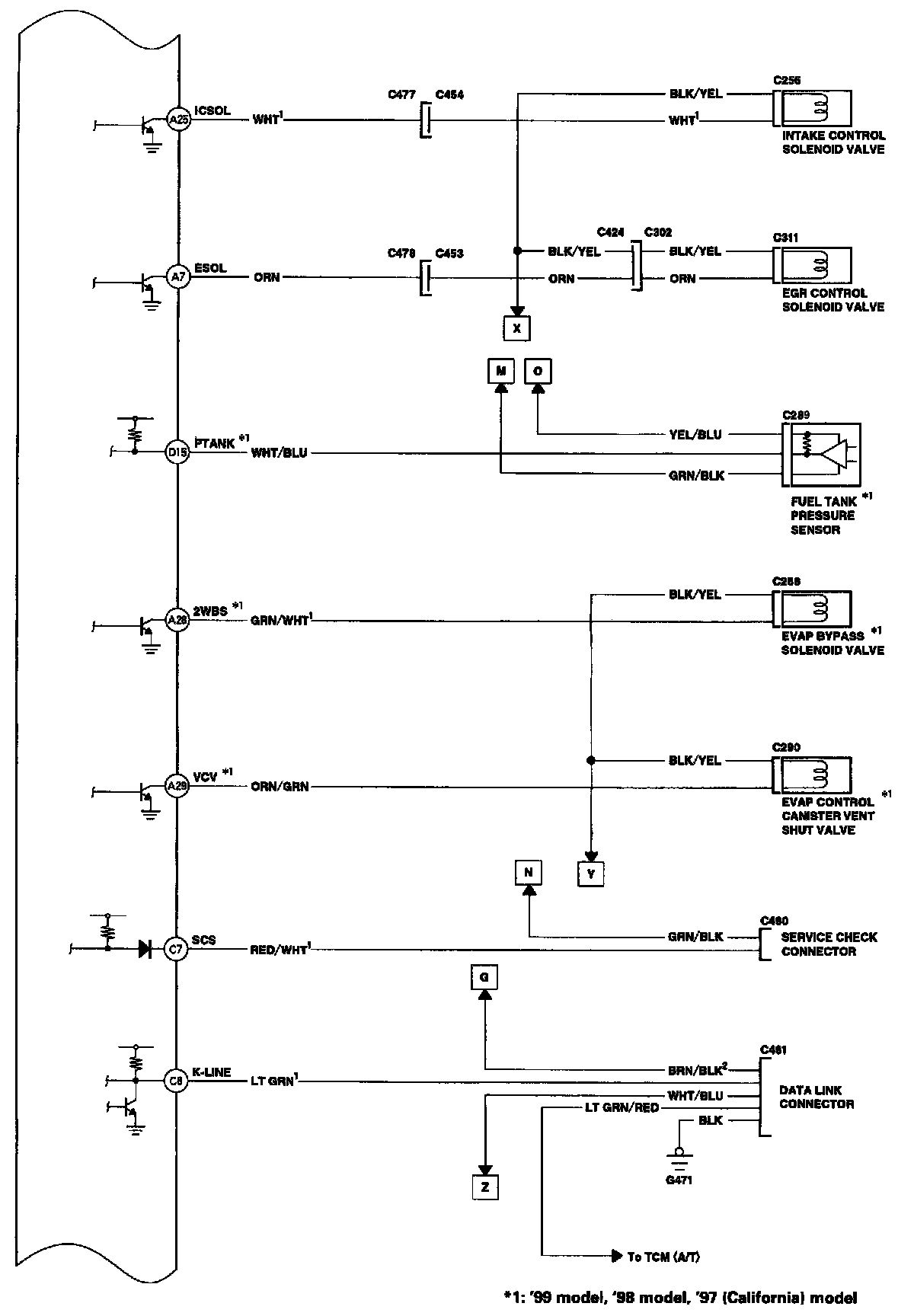

Part 2 Of 10:

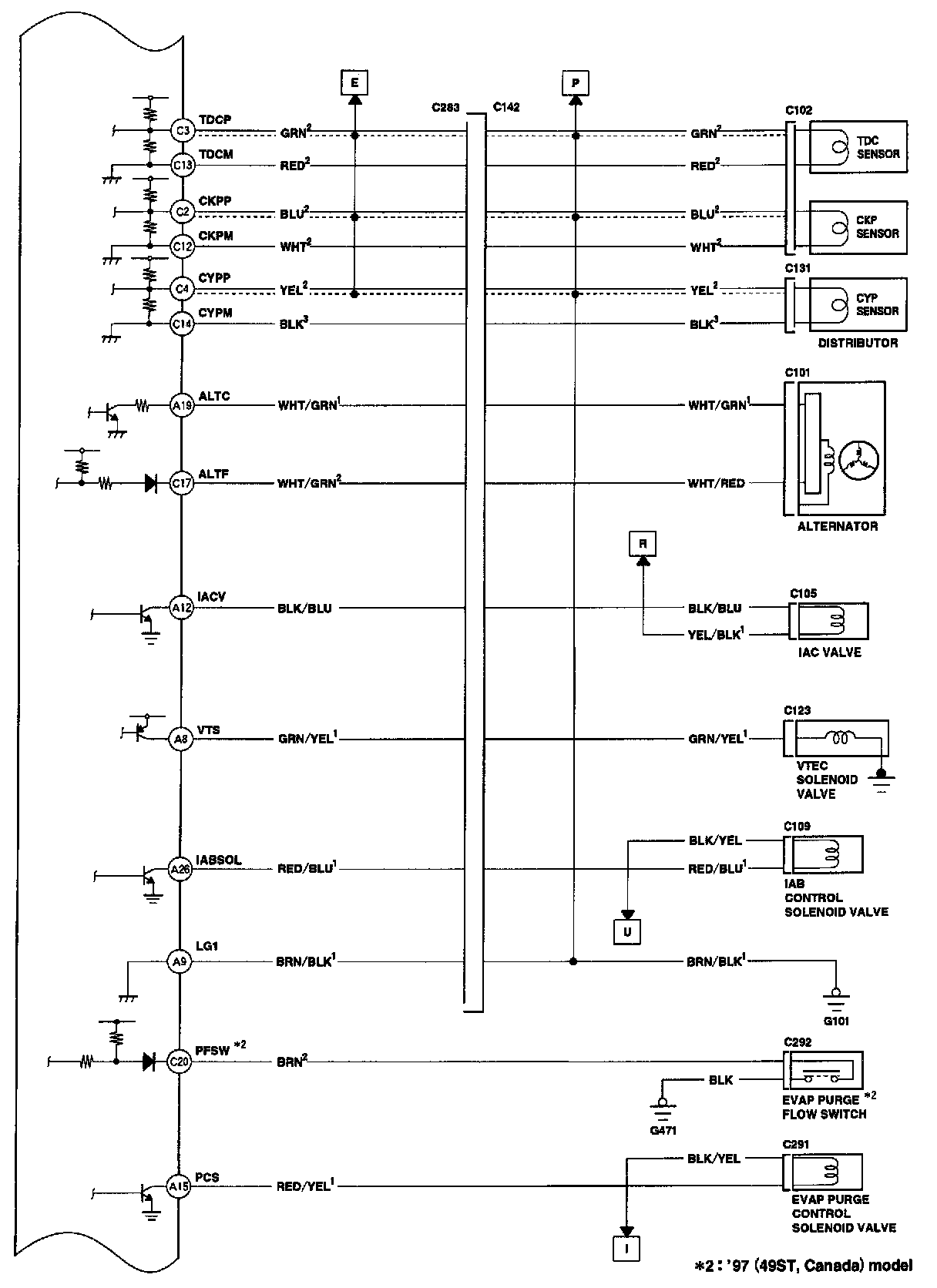

Part 3 0f 10:

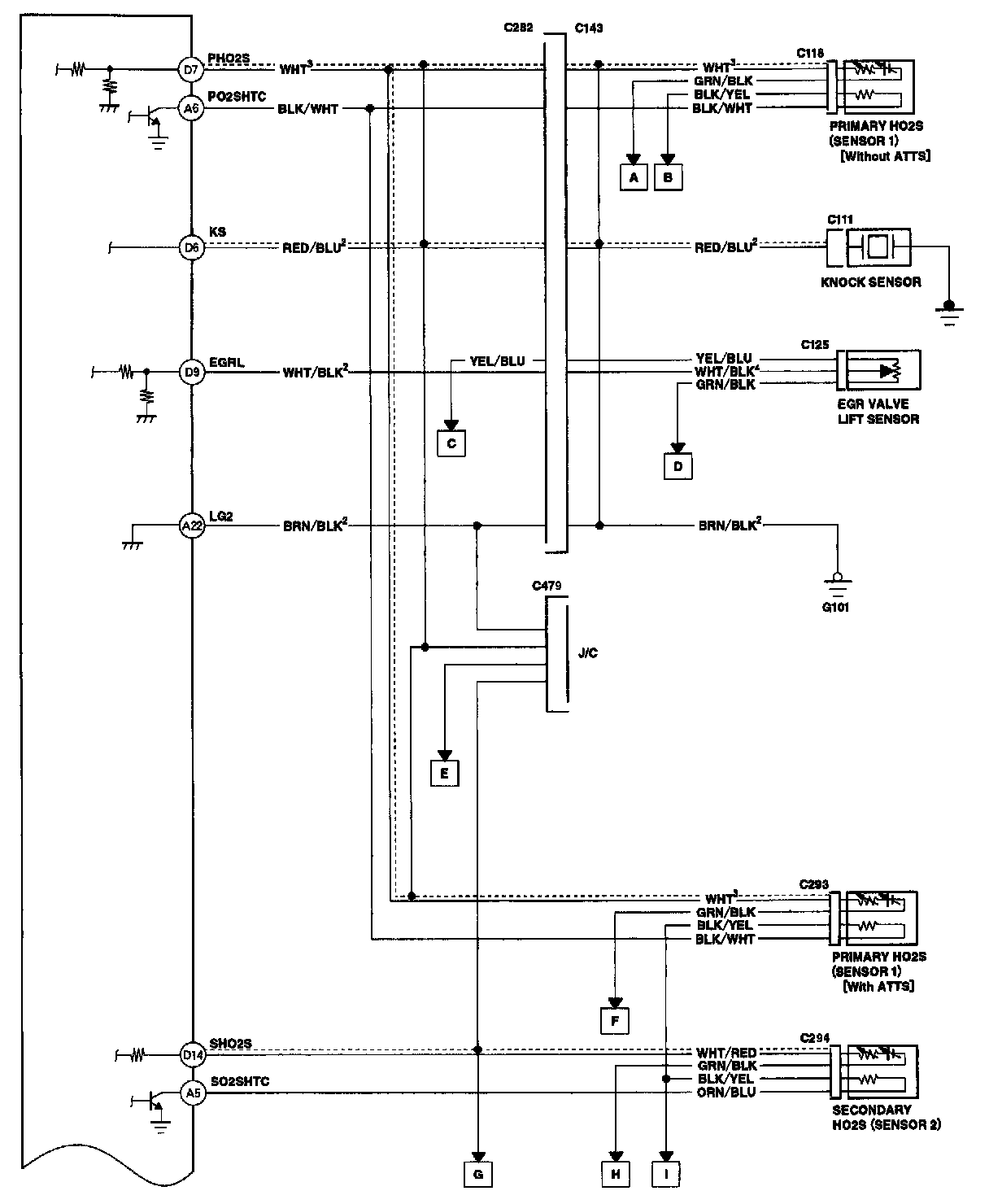

Part 4 0f 10:

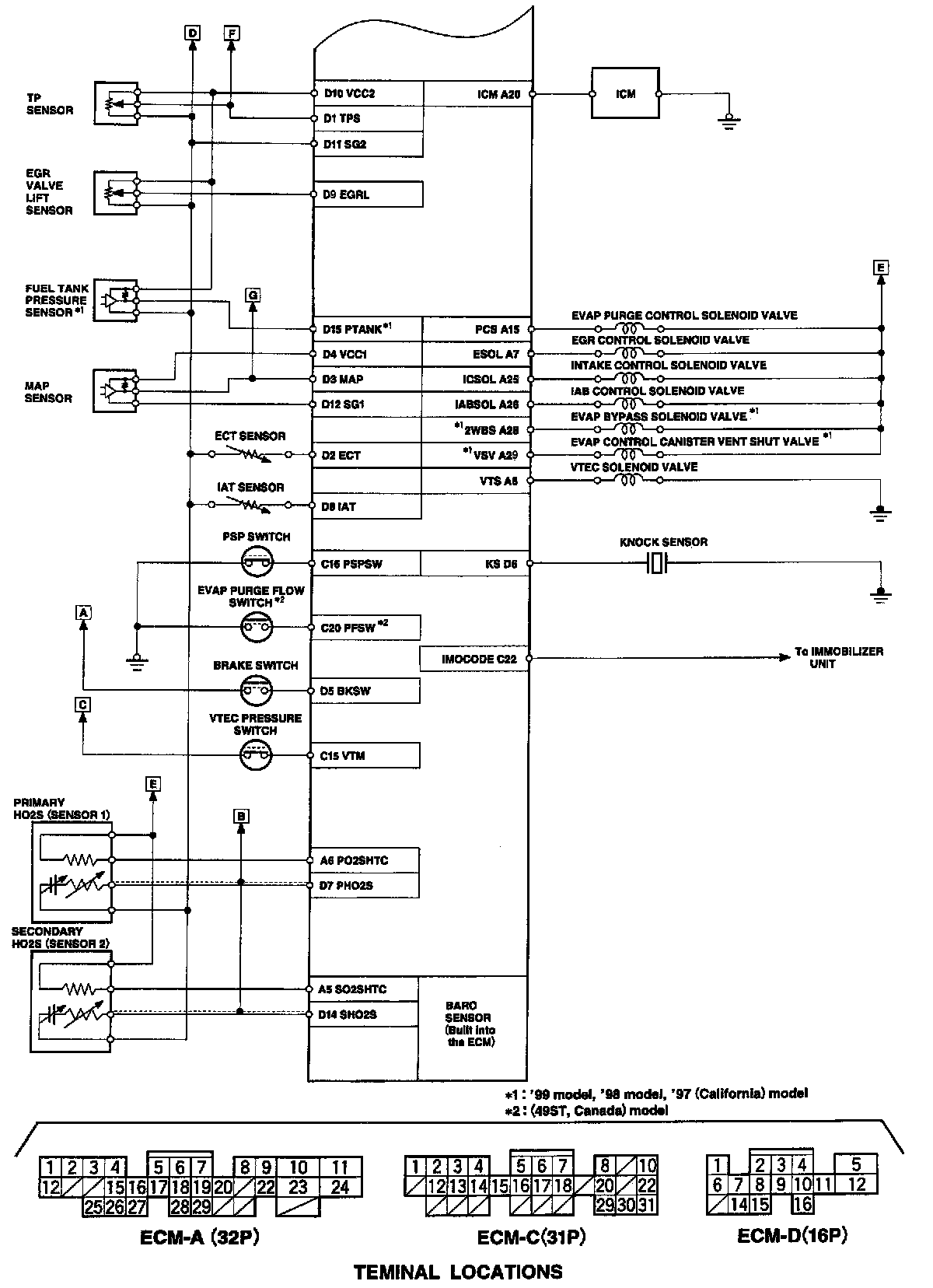

Part 5 0f 10:

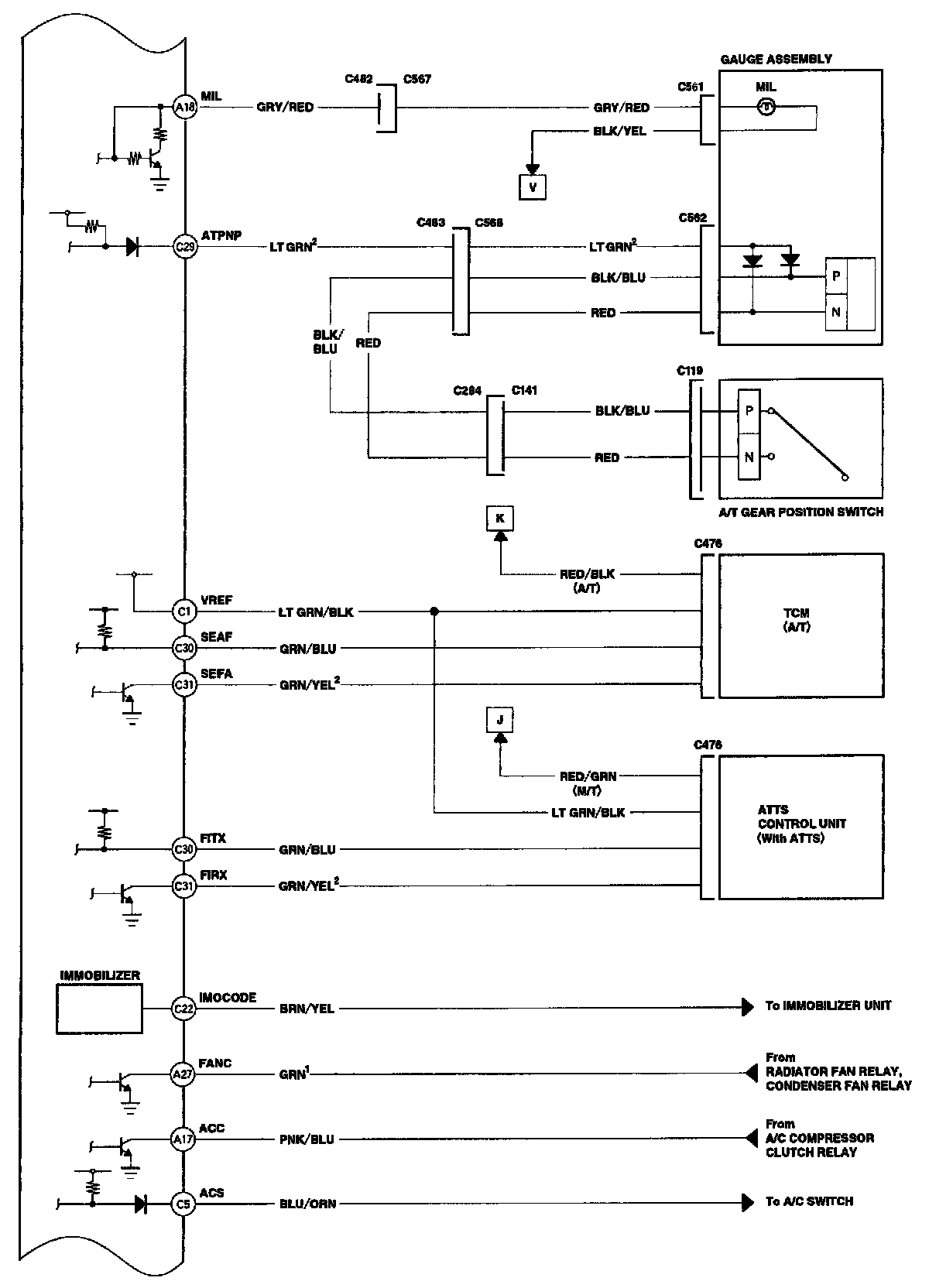

Part 6 0f 10:




Part 7 0f 10:




Part 8 0f 10:




Part 9 Of 10:




Part 10 Of 10:
