Multiplex Control System

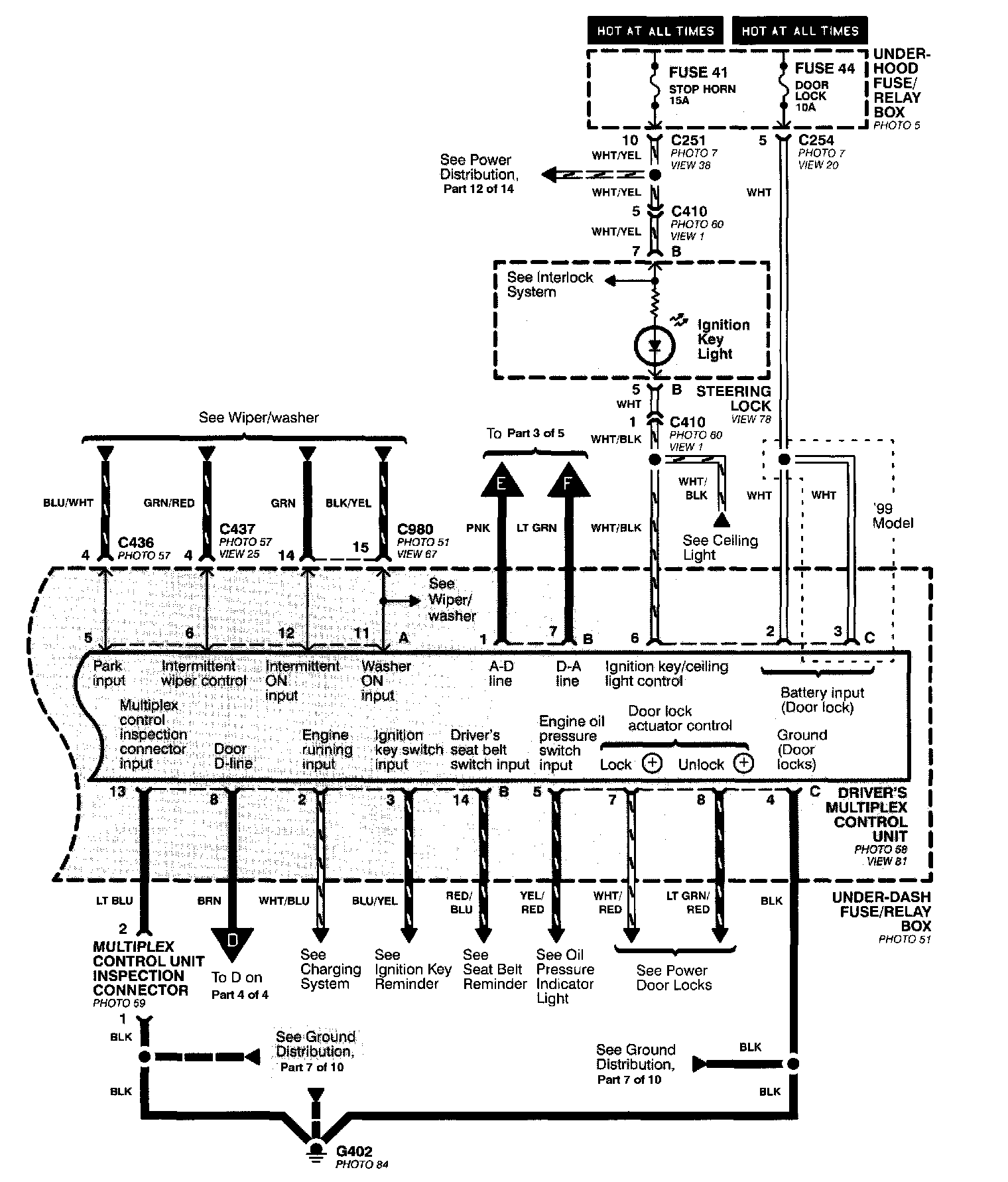

Multiplex Control System (Part 1 Of 4)
Under-Hood Fuse/Relay Box
Under-Dash Fuse/Relay Box

Multiplex Control System (Part 2 Of 4)
Steering Lock
Under-Hood Fuse/Relay Box
Under-Dash Fuse/Relay Box
- Driver's Multiplex Control Unit

Multiplex Control System (Part 3 Of 4)
Passenger's Multiplex Control Unit

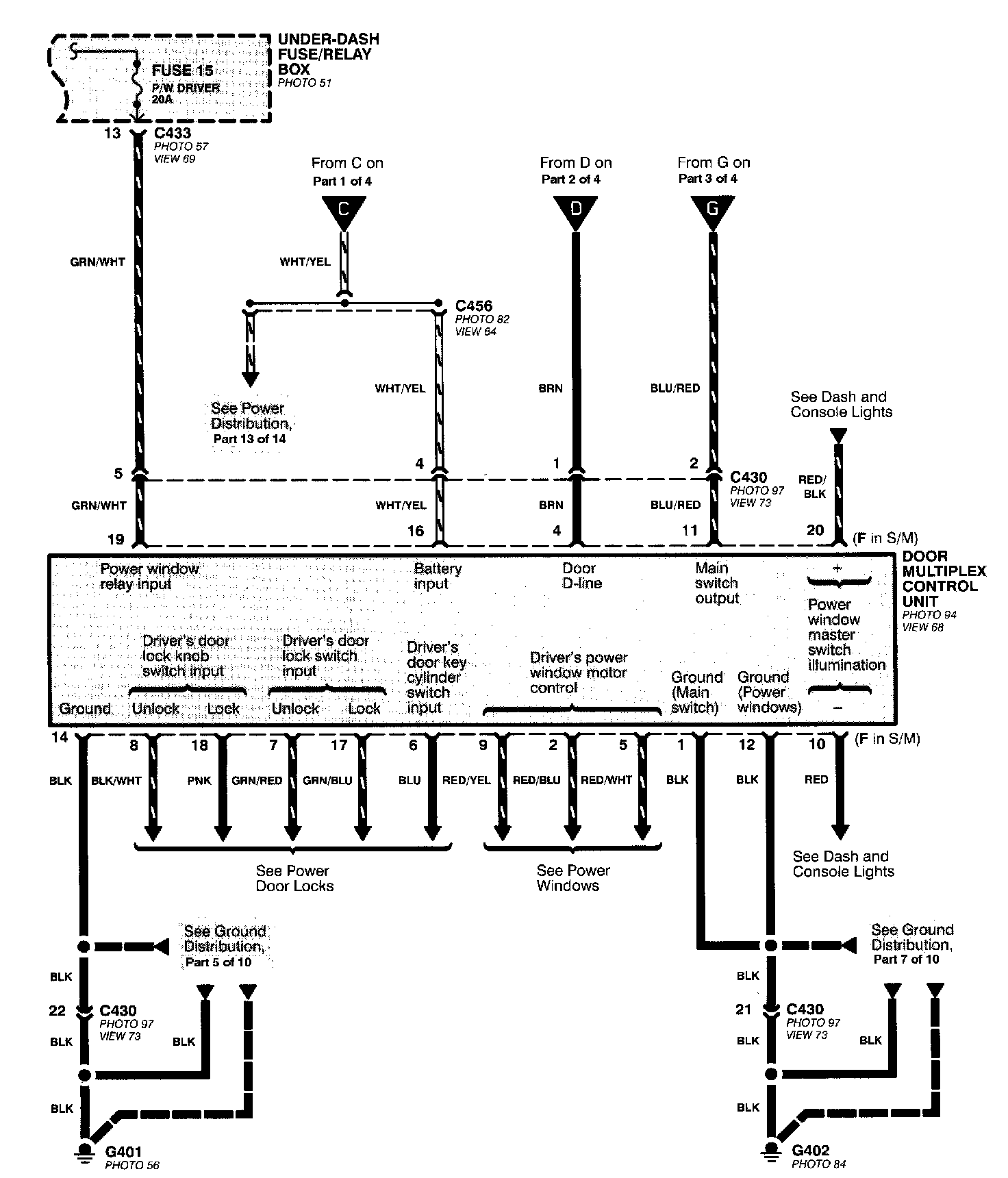

Multiplex Control System (Part 4 Of 4)
Door Multiplex Control Unit
Under-Dash Fuse/Relay Box
