Programmed Fuel Injection (PGM-FI) System

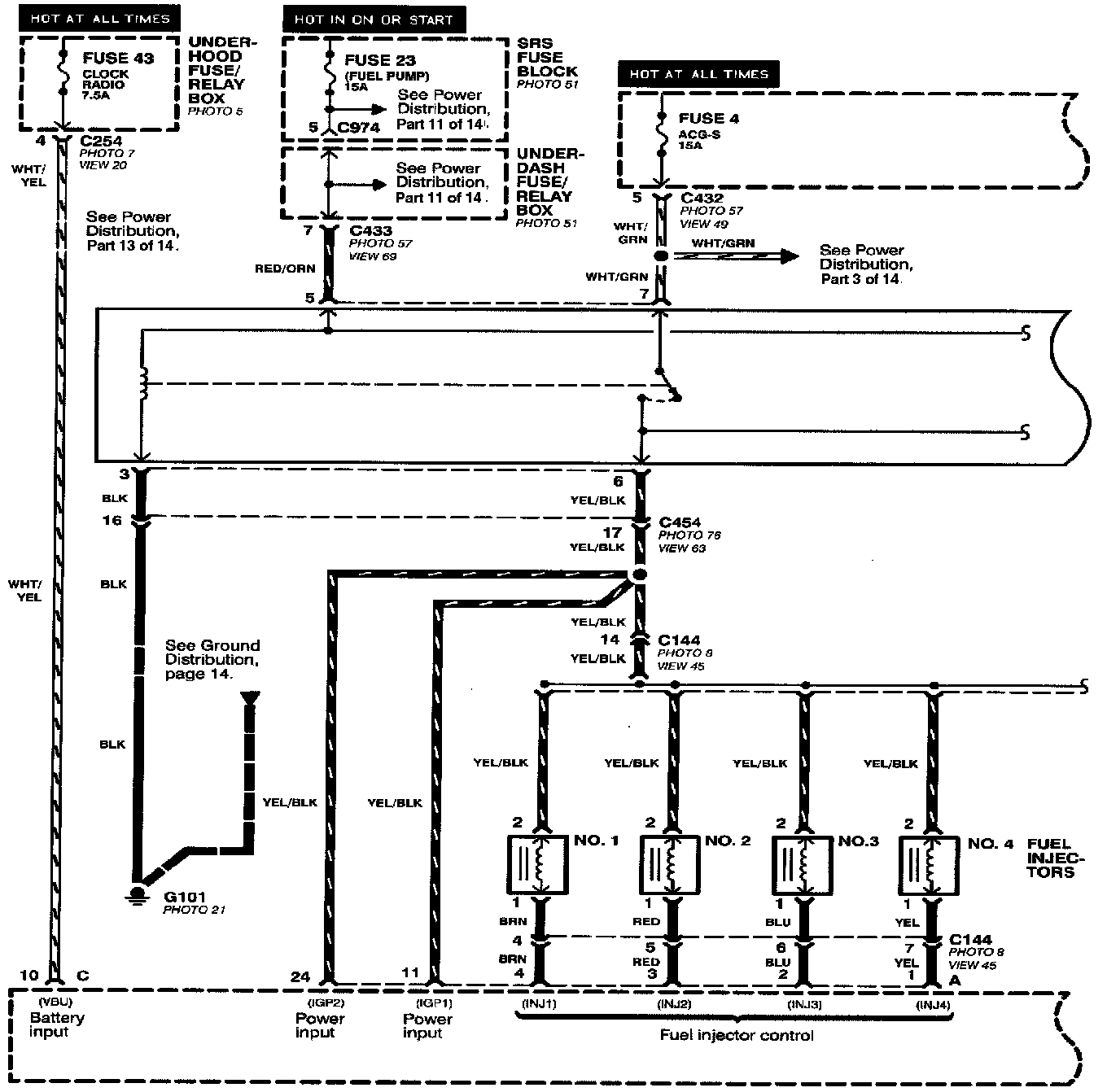

Programmed Fuel Injection System (PGM-FI) (Part 1 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 1 of 11)
Fuel Injectors No.1, 2, 3, 4
SRS Fuse Block
Under-Dash Fuse/Relay Box
Under-Hood Fuse/Relay Box

Programmed Fuel Injection System (PGM-FI) (Part 2 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 2 of 11)
Engine Control Module (ECM)
Fuel Pump
Idle Air Control (IAC) Valve
PGM-FI Main Relay
Under-Dash Fuse/Relay Box

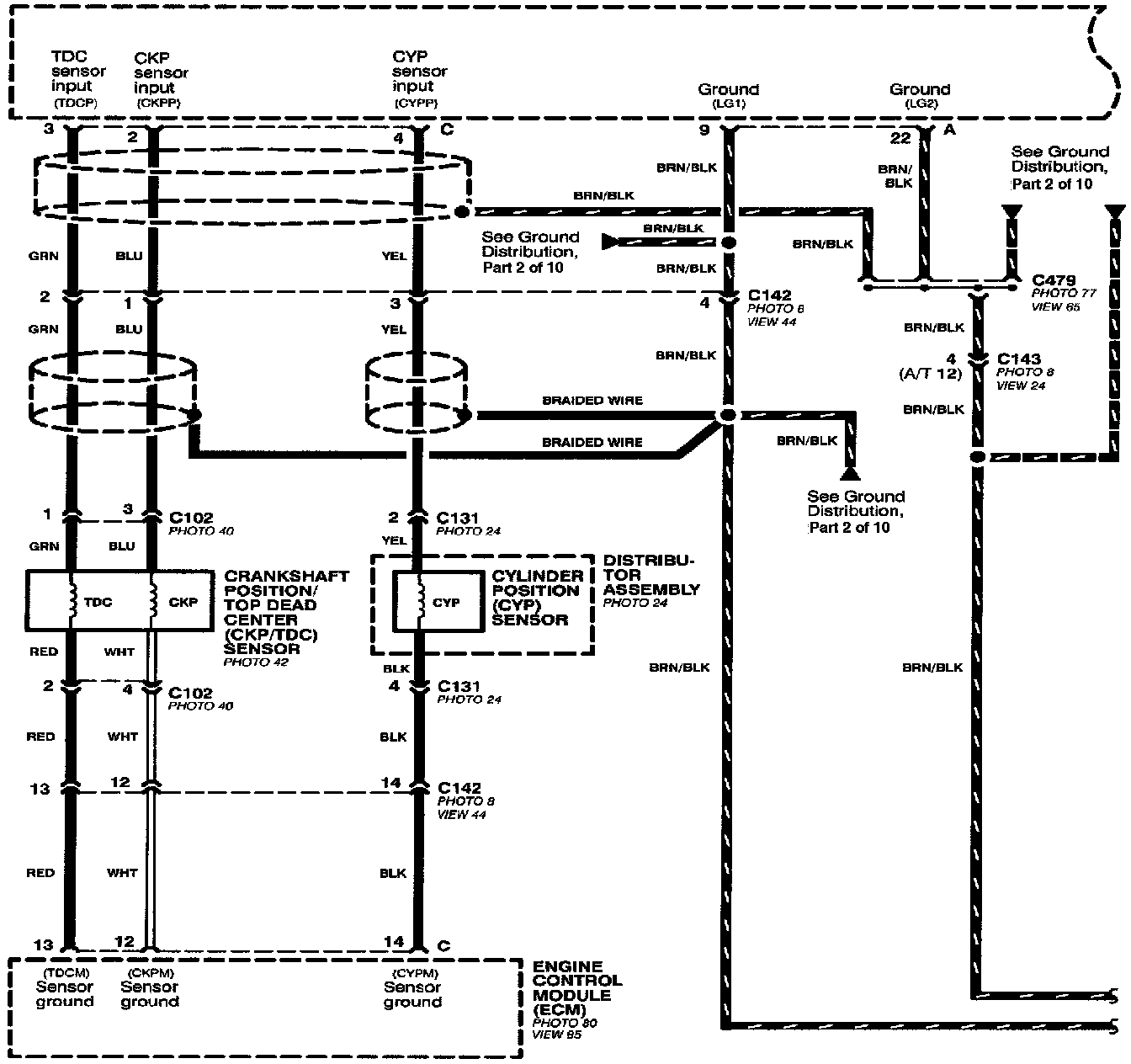

Programmed Fuel Injection System (PGM-FI) (Part 3 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 3 of 11)
Crankshaft Position/TOP Dead Center (CKP/TDC Sensor)
Cylinder Position (CYP) Sensor
Distributor Assembly
Engine Control module (ECM)

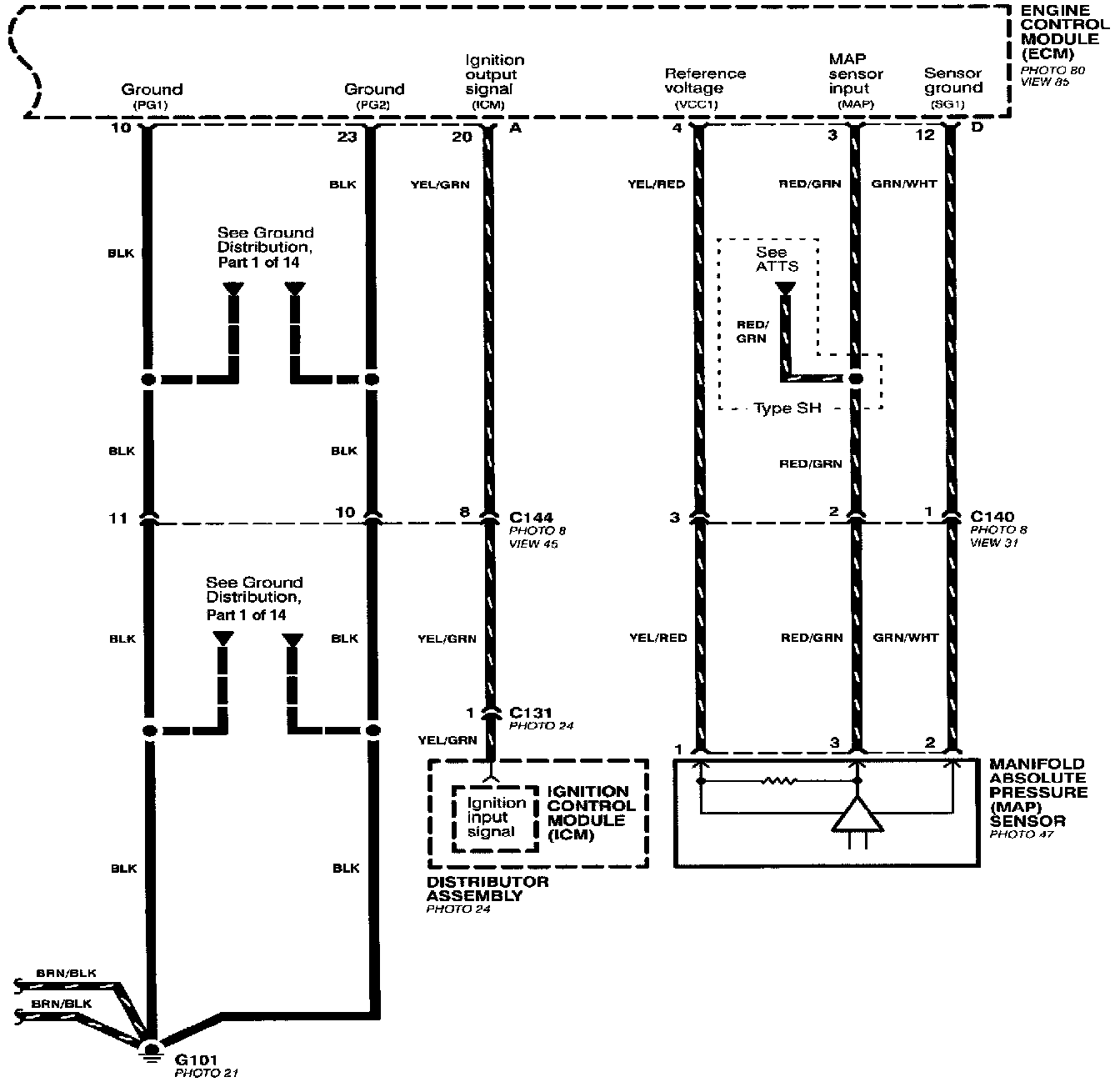

Programmed Fuel Injection System (PGM-FI) (Part 4 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 4 of 11)
Distributor Assembly
Engine Control Module (ECM)
Ignition Control Module (ICM)
Manifold Absolute pressure (MAP) Sensor

Programmed Fuel Injection System (PGM-FI) (Part 5 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 5 of 11)
ABS Control Unit
ATTS Control Unit
Fuel Tank Pressure Sensor
Service Check Connector
SRS Unit
Throttle Position (TP) Sensor

Programmed Fuel Injection System (PGM-FI) (Part 6 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 6 of 11)
Engine Control Module (ECM)
Exhaust Gas Recirculation (EGR) Valve Lift Sensor
Engine Coolant Temperature (ECT) Sensor
Intake Air Temperature (IAT) Sensor

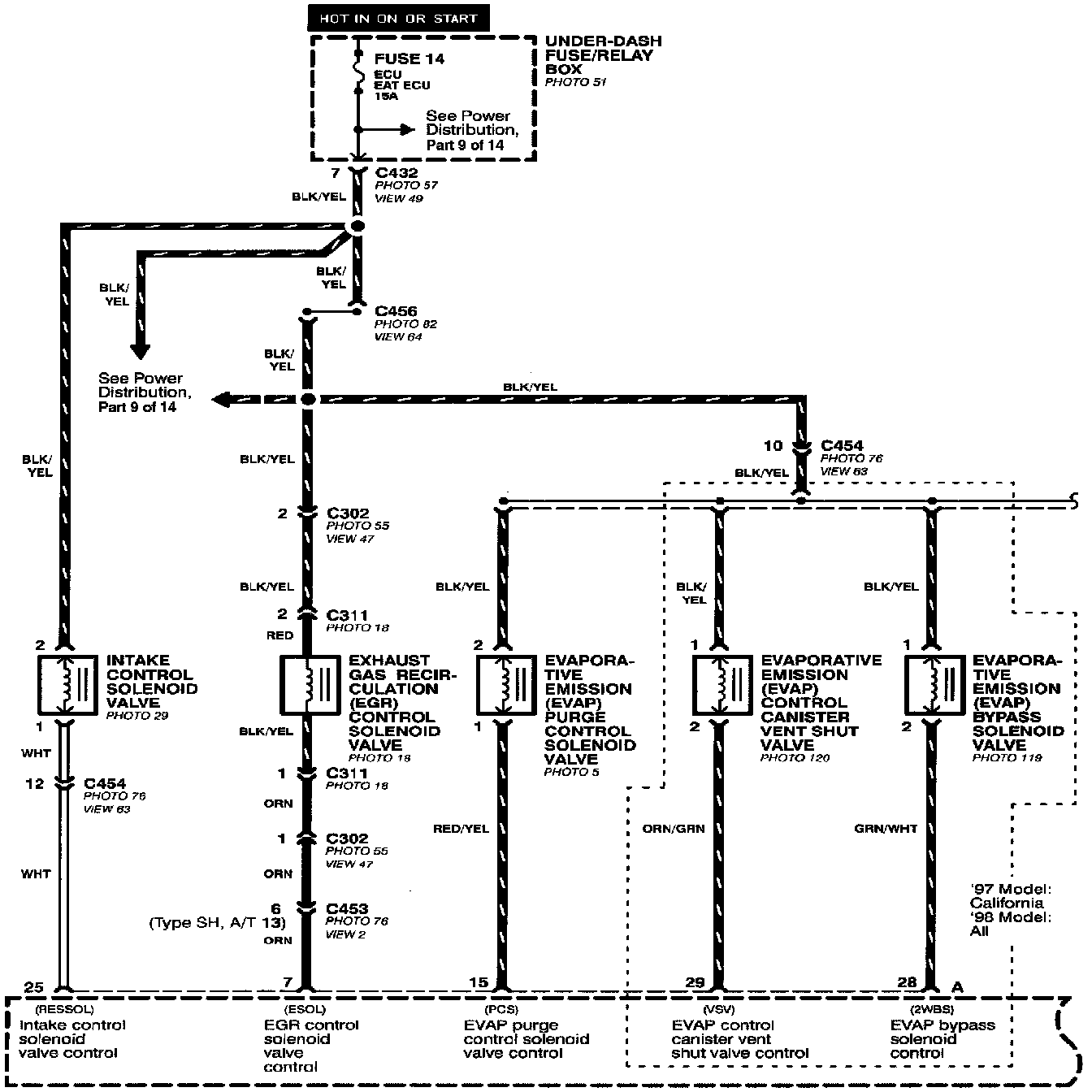

Programmed Fuel Injection System (PGM-FI) (Part 7 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 7 of 11)
Exhaust Gas Recirculation (EGR) Control Solenoid Valve
Evaporative Emission (EVAP) Purge Control Solenoid Valve
Evaporative Emission (EVAP) Control Canister Vent Shut Valve
Evaporative Emission (EVAP) Bypass Solenoid Valve
Intake Control Solenoid Valve
Under-Dash Fuse/Relay Box

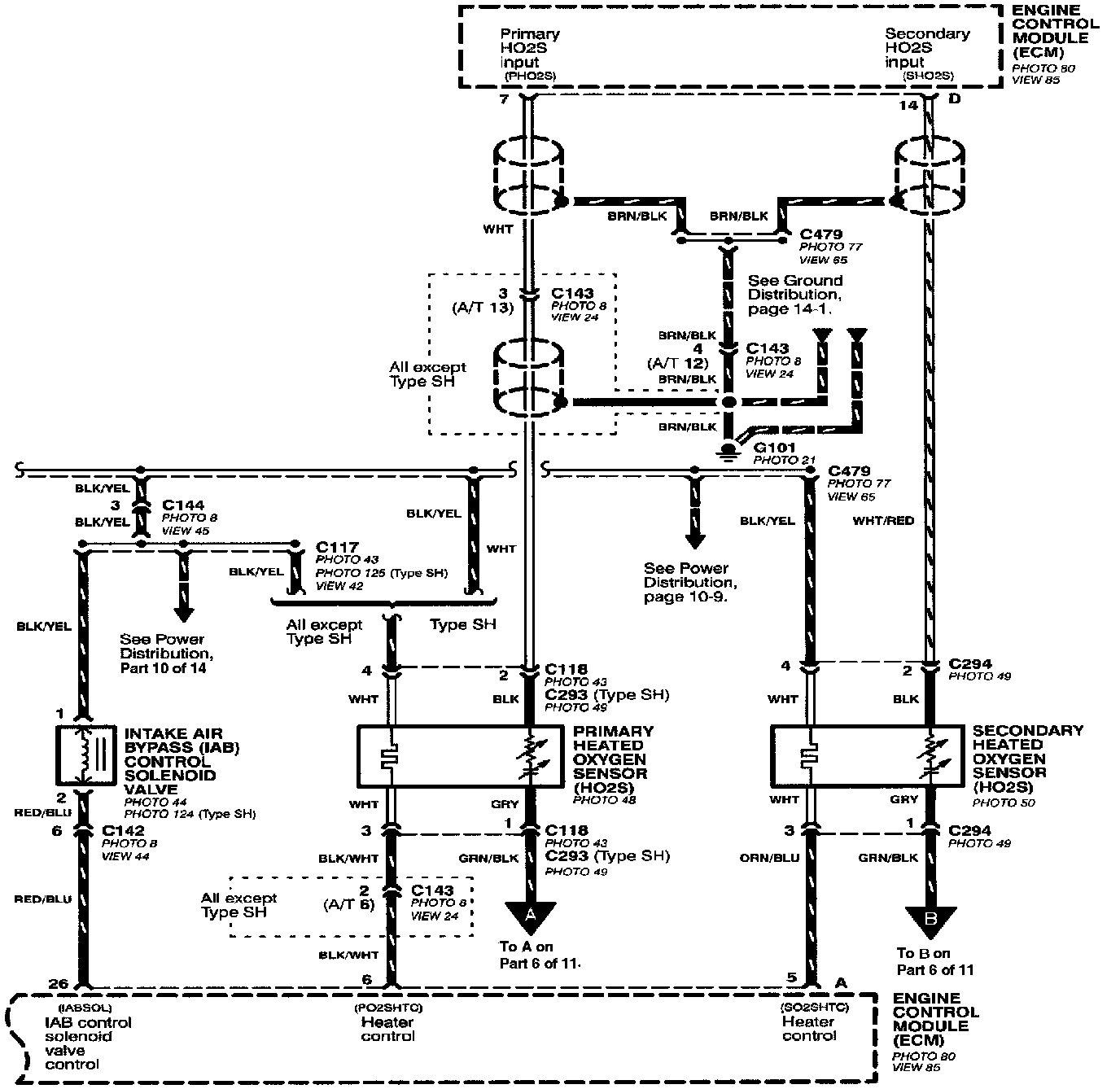

Programmed Fuel Injection System (PGM-FI) (Part 8 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 8 of 11)
Engine Control Module (ECM)
Intake Air Bypass (IAB) Control Solenoid Valve
Primary Heated Oxygen Sensor (HO2S)
Secondary Heated Oxygen Sensor (HO2S)

Programmed Fuel Injection System (PGM-FI) (Part 9 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 9 of 11)
Data Link Connector (DLC)
Evaporative Emission (EVAP) Purge Flow Switch
Malfunction Indicator Light (MIL)
Under-Dash Fuse/Relay Box
Under-Hood Fuse/Relay Box
VTEC Solenoid Valve

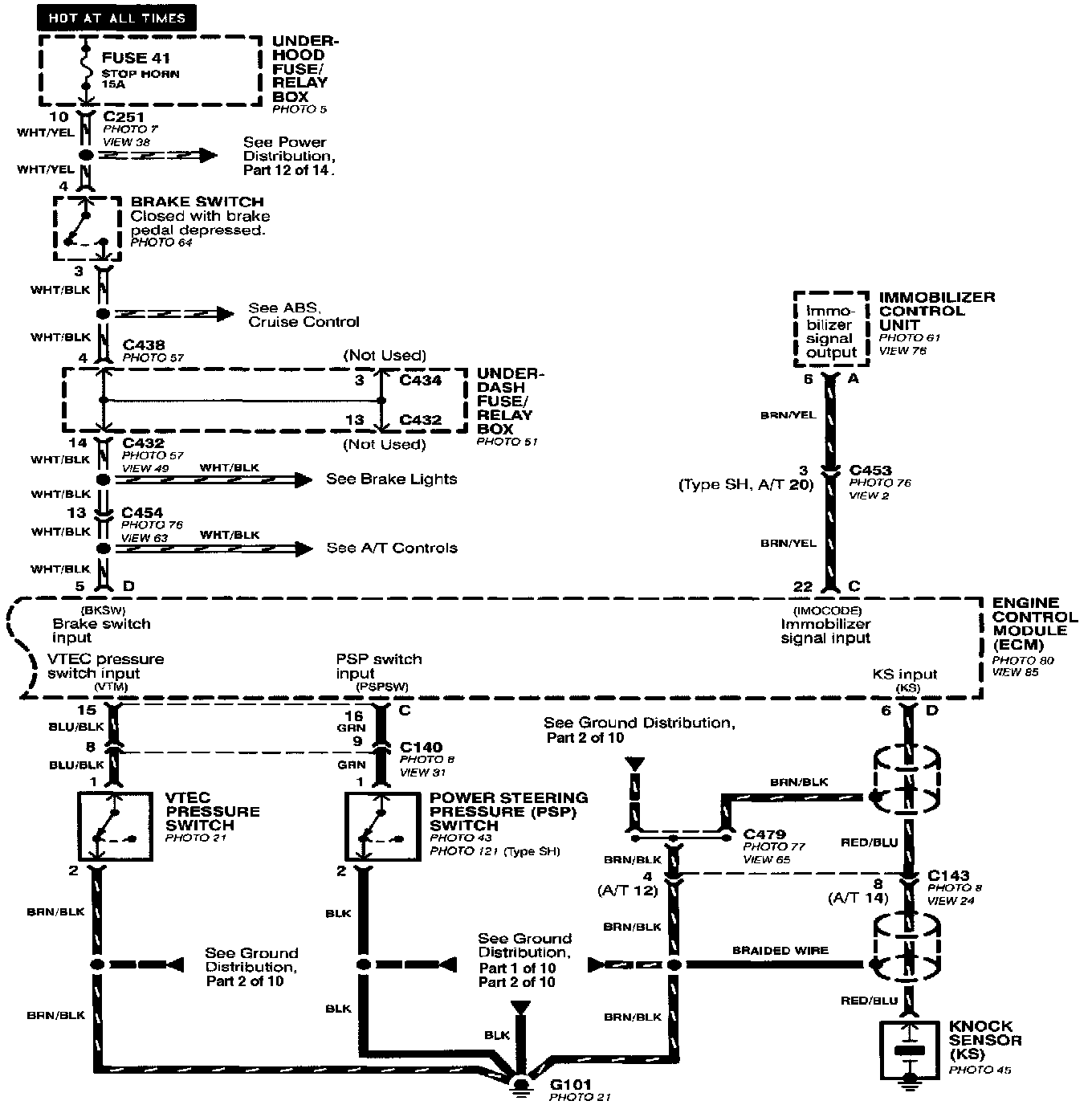

Programmed Fuel Injection System (PGM-FI) (Part 10 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 10 of 11)
Brake Switch
Engine Control Module ((ECM)
Immobilizer Control Unit
Knock Sensor (KS)
Power Steering Pressure (PSP) Switch
Under-Dash Fuse/Relay Box
Under-Hood Fuse/Relay Box
VTEC Pressure Switch

Programmed Fuel Injection System (PGM-FI) (Part 11 Of 11):

Programmed Fuel Injection System (PGM-FI) (Part 11 of 11)
ATTS Control Unit
Engine Control Module (ECM)
Gauge Assembly
Transmission Control Module (TCM)
