Home >> Honda >> 1999 >> Prelude Type-SH L4-2156cc 2.2L DOHC (VTEC) MFI >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Variable Induction System >> Testing and Inspection

Variable Induction System: Testing and Inspection

Part 1 Of 2:




Part 2 Of 2:

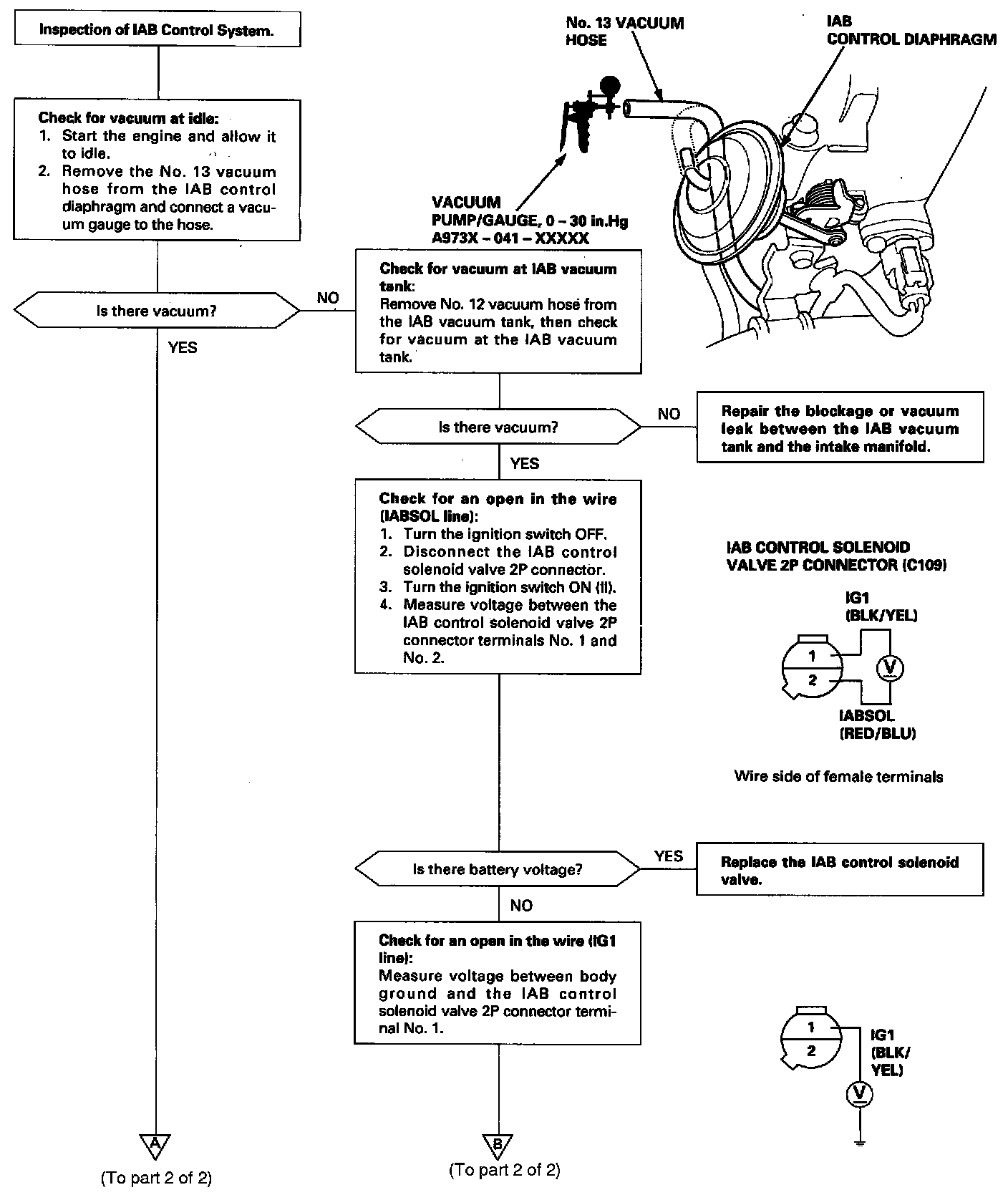

Inspection Procedure
