Stabilizer Bar: Service and Repair

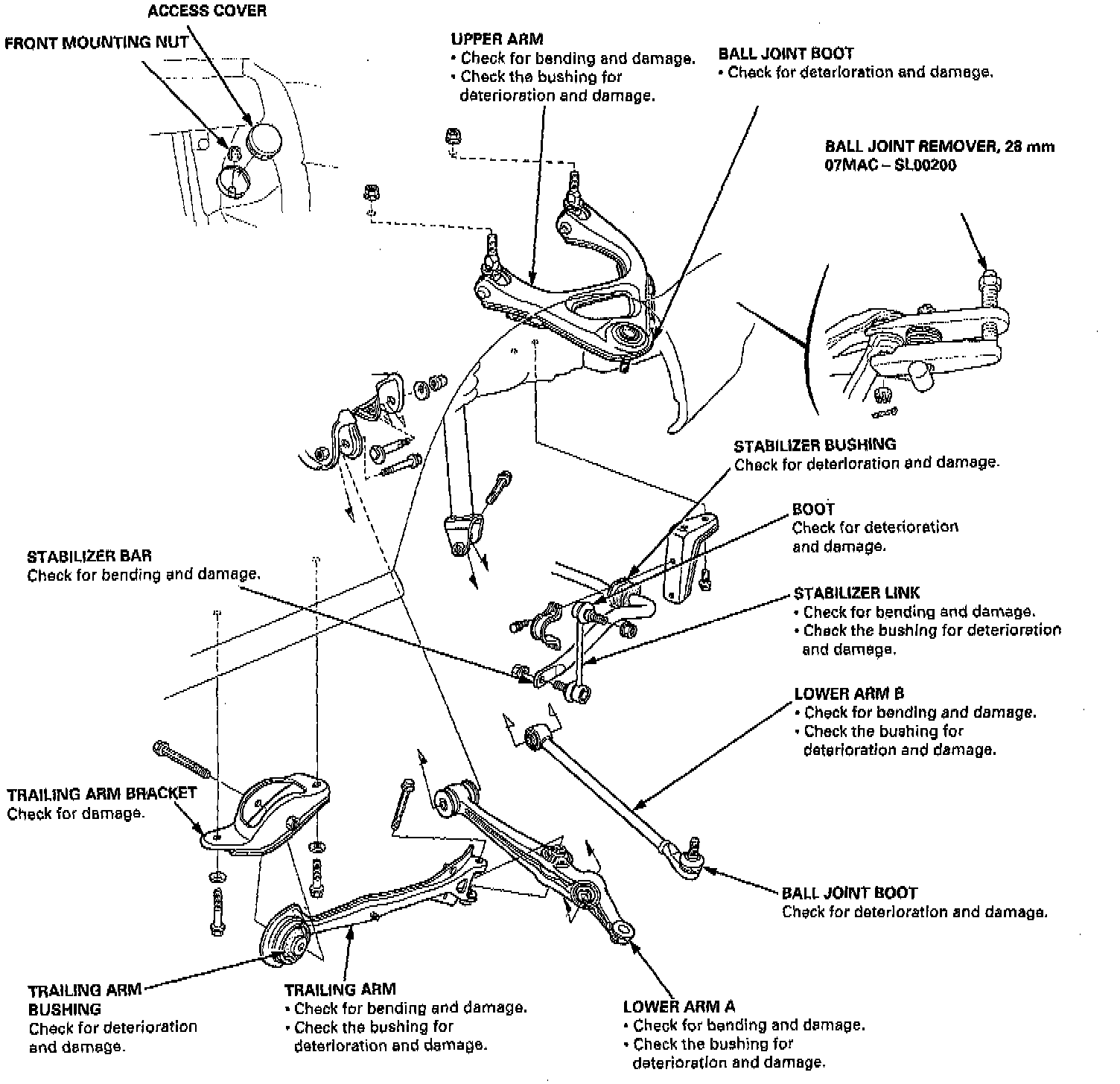

REMOVAL





CAUTION:
- Replace the self-locking nuts after removal.
- Be careful not to damage the ball joint boot.

NOTE: Rear upper arm mounting nut removal:
- Front mounting nut: From inside of the vehicle; lower the rear seat-back, and remove the access cover and the front mounting nut.
- Rear mounting nut: Front inside the trunk; pull the trunk side trim to one side. and remove the rear mounting nut.

INSTALLATION





CAUTION:
- Any bolts or nuts connected to rubber mounts or bushings should be tightened with the vehicle on the ground.
- Torque the castle nut to the lower torque specification, then tighten it only far enough to align the slot with the pin hole. Do not align the nut by loosening.

NOTE:
- Wipe off the oil, dirt or grease from the threads before tightening the fasteners.
- Make sure the toe adjuster cams on lower arm B are installed in the same direction.
- After installing the suspension arm, check the rear wheel alignment, and adjust if necessary.
