Removal

1. Remove the left driveshaft.
2. Remove the exhaust pipe.
3. Disconnect the air cleaner duct, and move it toward the shock tower side.
4. Remove the distributor cover.




5. Remove the shift cable bracket.

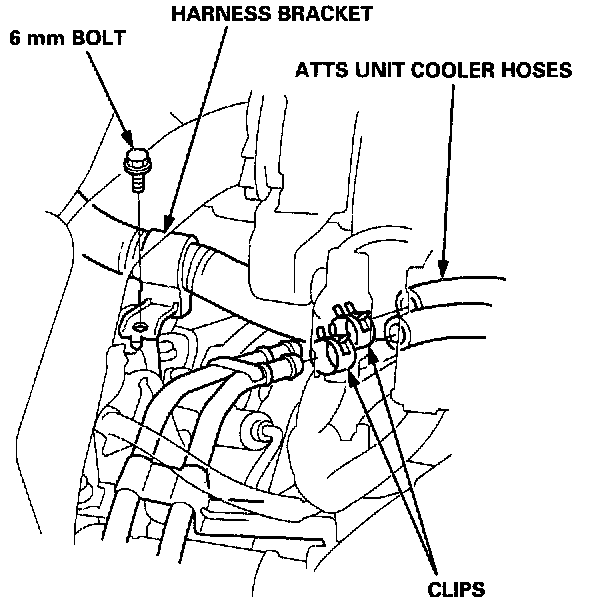

6. Remove the harness bracket, then disconnect the ATTS unit cooler hoses.

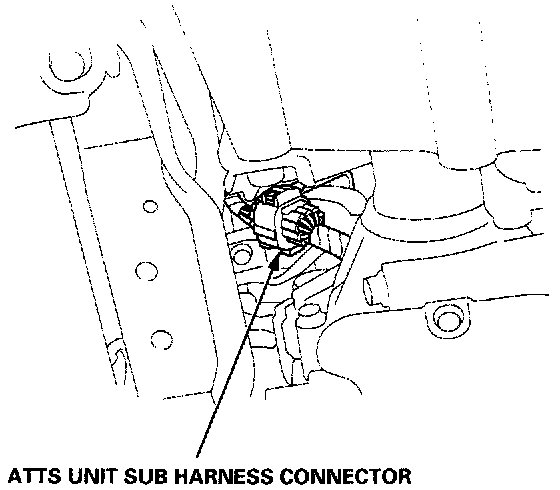

7. Disconnect the ATTS unit sub harness connector.
8. Support the ATTS unit with the jack.

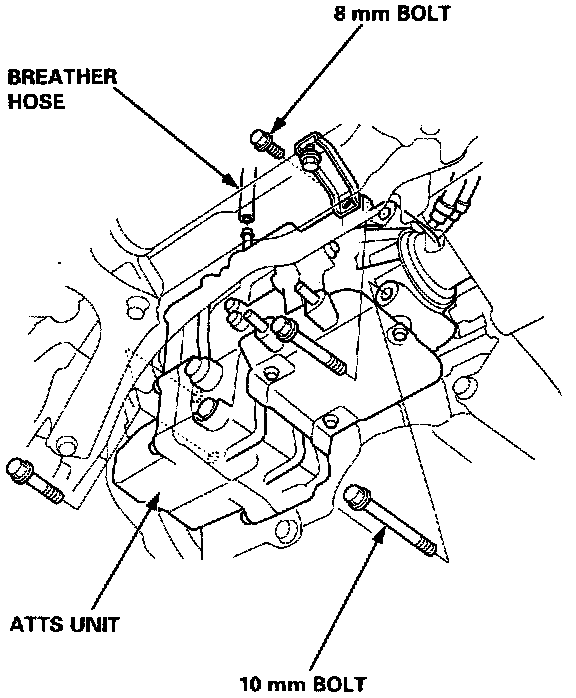

9. Loosen the flange bolt.
10. Remove the flange bolts, then lower the ATTS unit a little.
11. Disconnect the breather hose, then remove the ATTS unit.




12. Remove the extension tube and shaft.
