Pinout Values and Diagnostic Parameters

PCM Inputs and Outputs

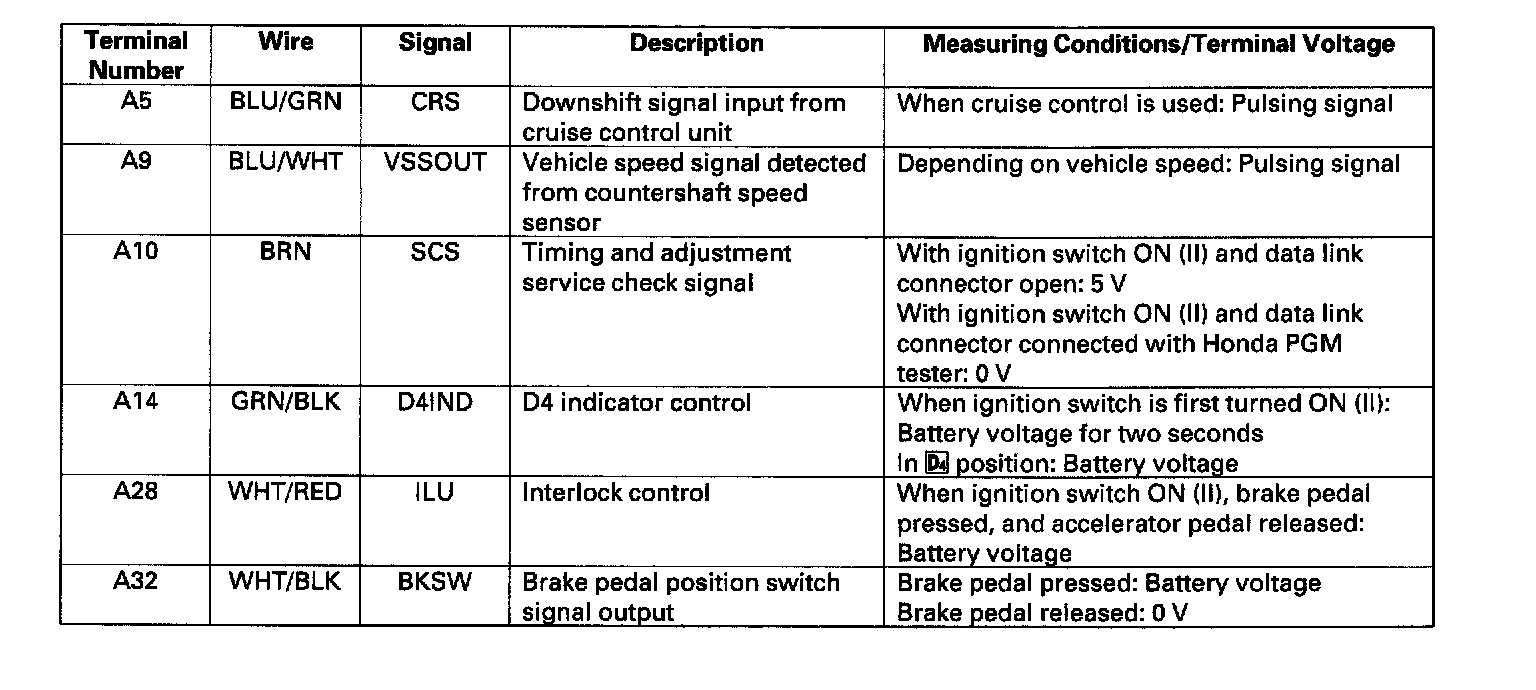

The PCM terminal voltage and measuring conditions are shown for the connector terminals related to the A/T control system.

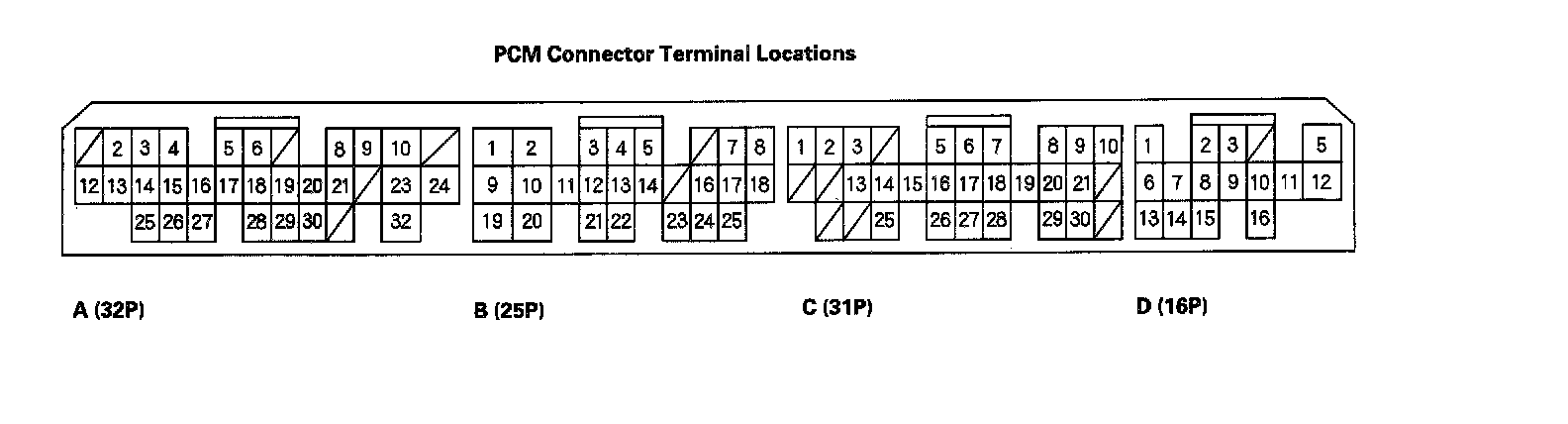

PCM Terminal Locations:

PCM CONNECTOR A (32P):

PCM CONNECTOR B (25P):

PCM CONNECTOR D (16P) [1 Of 2]:

PCM CONNECTOR D (16P) [2 Of 2]:
