Electronic Brake Control Module

35. ABS Modulator Unit:

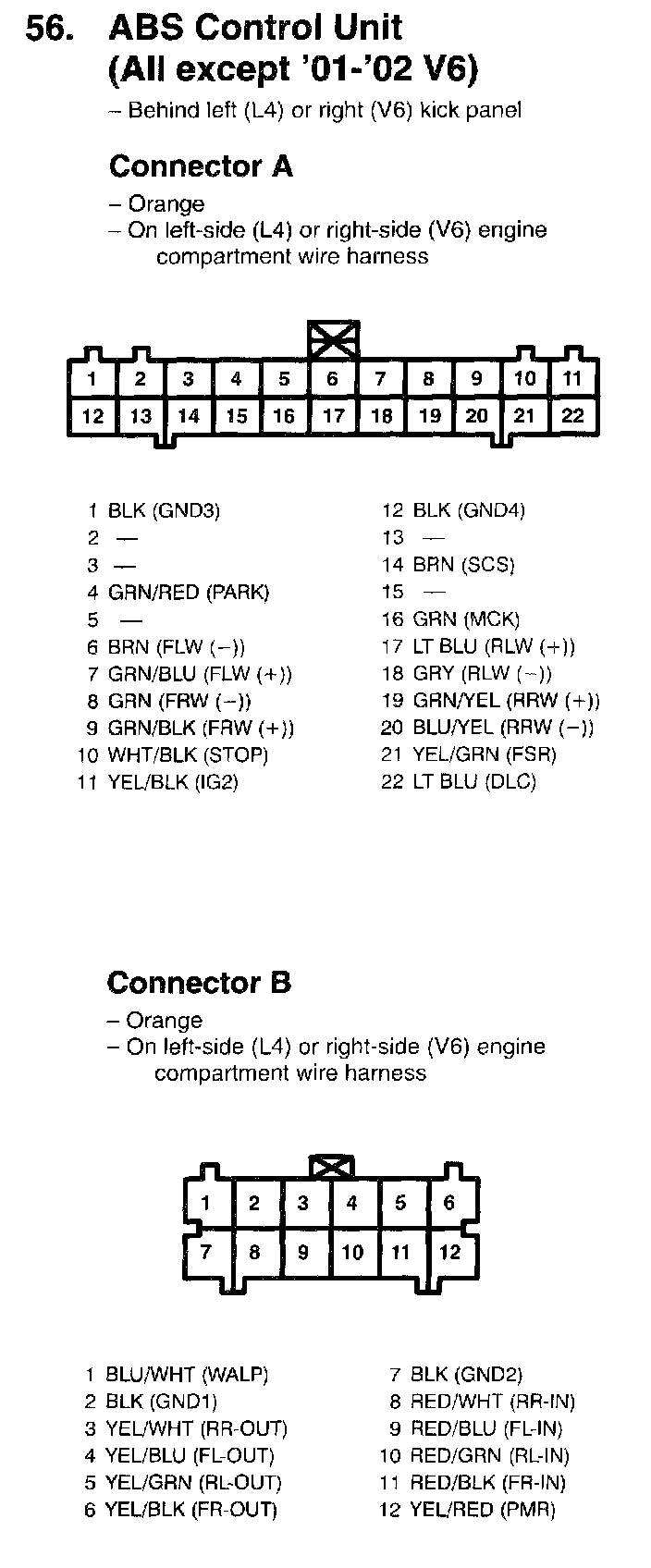

56. ABS Control Unit Connectors A, B:



Part 1 Of 2:



Part 2 Of 2:
