Circuit Diagrams

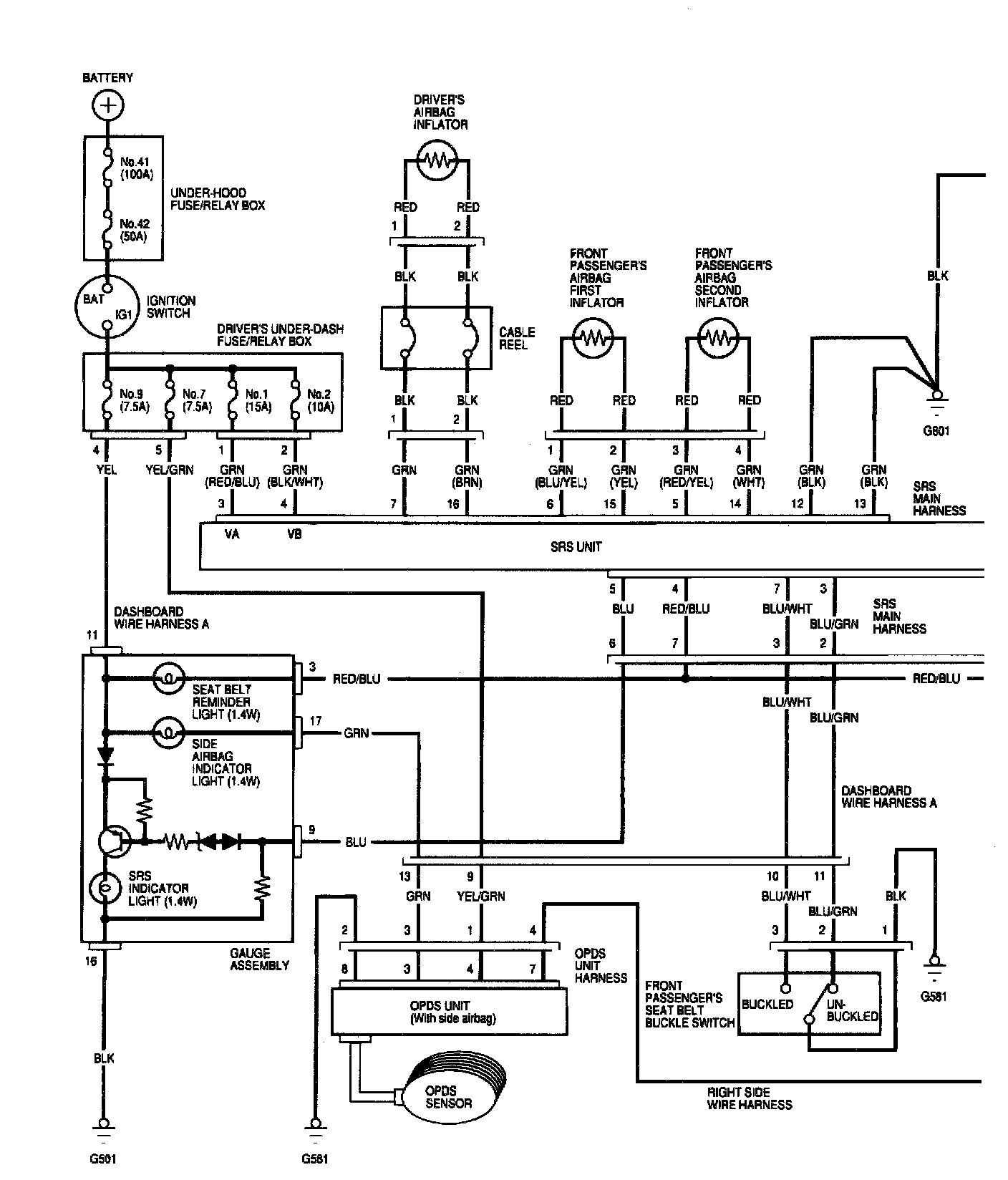

Circuit Diagram (2000 Coupe Models) (1 Of 2):

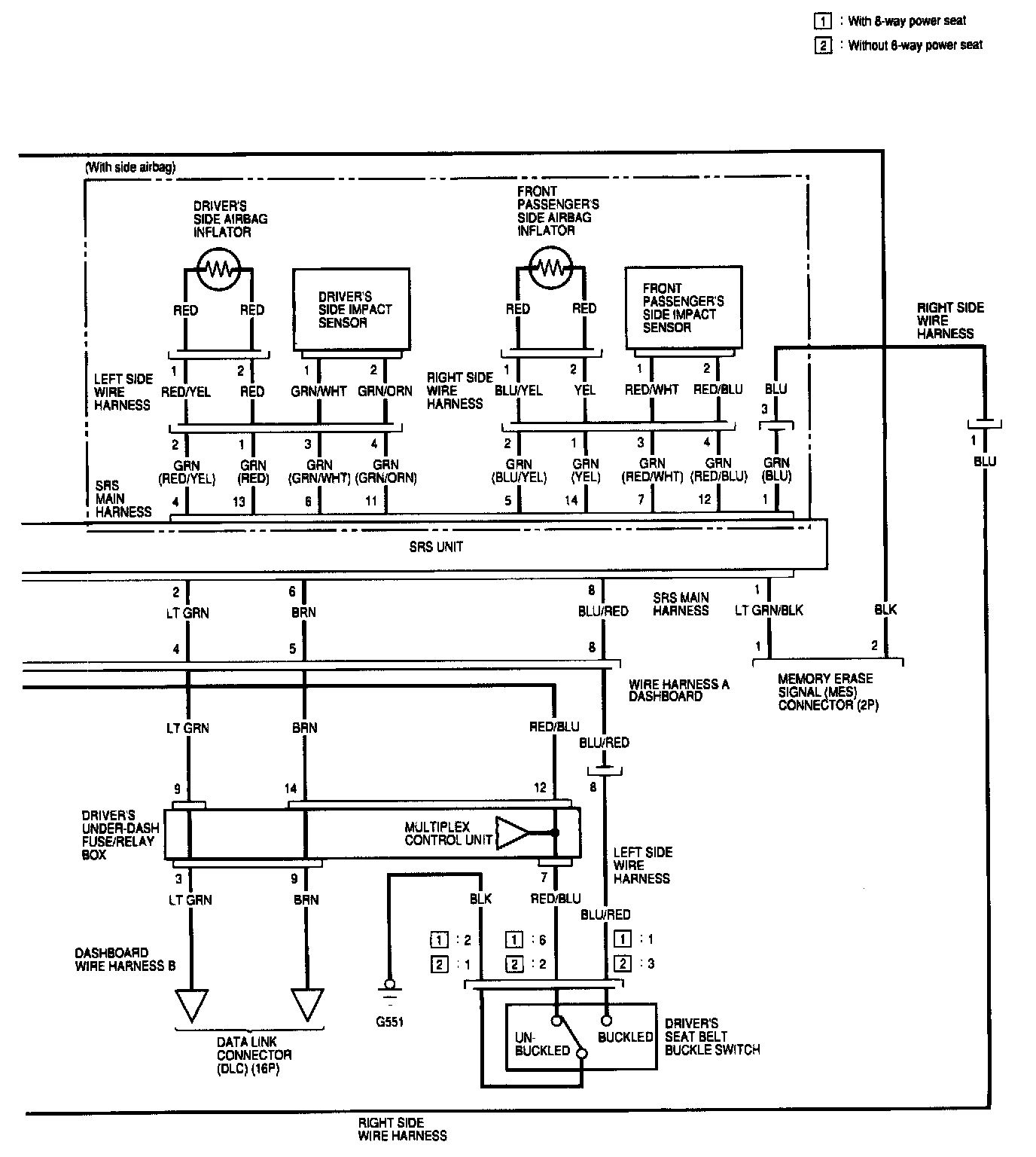

Circuit Diagram Cont'd (2000 Coupe Models) (2 Of 2):
